PSingleMonitoredSocket Class Reference

#include <psockbun.h>

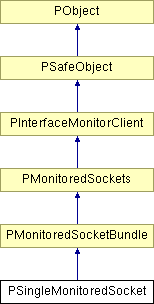

Inheritance diagram for PSingleMonitoredSocket:


Public Member Functions
	PSingleMonitoredSocket (const PString &theInterface, BOOL reuseAddr=FALSE, PSTUNClient *stunClient=NULL)
	~PSingleMonitoredSocket ()
virtual PStringArray	GetInterfaces (BOOL includeLoopBack=FALSE, const PIPSocket::Address &destination=PIPSocket::GetDefaultIpAny())
virtual BOOL	Open (WORD port)
virtual BOOL	Close ()
	Close all socket(s).
virtual BOOL	GetAddress (const PString &iface, PIPSocket::Address &address, WORD &port, BOOL usingNAT) const
	Get the local address for the given interface.
virtual PChannel::Errors	WriteToBundle (const void *buf, PINDEX len, const PIPSocket::Address &addr, WORD port, const PString &iface, PINDEX &lastWriteCount)
virtual PChannel::Errors	ReadFromBundle (void *buf, PINDEX len, PIPSocket::Address &addr, WORD &port, PString &iface, PINDEX &lastReadCount, const PTimeInterval &timeout)
Protected Member Functions
virtual void	OnAddInterface (const InterfaceEntry &entry)
	Call back function for when an interface has been added to the system.
virtual void	OnRemoveInterface (const InterfaceEntry &entry)
	Call back function for when an interface has been removed from the system.
BOOL	IsInterface (const PString &iface) const
Protected Attributes
PString	theInterface
InterfaceEntry	theEntry
SocketInfo	theInfo

Detailed Description

This concrete class monitors a single scoket bound to a specific interface or address. The interface name may be a partial descriptor such as "%eth0".

Constructor & Destructor Documentation

PSingleMonitoredSocket::PSingleMonitoredSocket	(	const PString &	theInterface,
		BOOL	reuseAddr = `FALSE`,
		PSTUNClient *	stunClient = `NULL`
	)

PSingleMonitoredSocket::~PSingleMonitoredSocket ( )

Member Function Documentation

virtual PStringArray PSingleMonitoredSocket::GetInterfaces	(	BOOL	includeLoopBack = `FALSE`,
		const PIPSocket::Address &	destination = `PIPSocket::GetDefaultIpAny()`
	)			`[virtual]`

Get an array of all current interface descriptors, possibly including the loopback (127.0.0.1) interface. Note the names are of the form ipname, eg "10.0.1.11%3Com 3C90x Ethernet Adapter" or "192.168.0.10%eth0"

Parameters:

destination

Flag for if loopback is to included in list

Reimplemented from PInterfaceMonitorClient.

virtual BOOL PSingleMonitoredSocket::Open ( WORD port ) [virtual]

Open the socket(s) using the specified port. If port is zero then a system allocated port is used. In this case and when multiple interfaces are supported, all sockets use the same dynamic port value.

Returns TRUE if all sockets are opened.

Reimplemented from PMonitoredSocketBundle.

virtual BOOL PSingleMonitoredSocket::Close ( ) [virtual]

Close all socket(s).

Reimplemented from PMonitoredSocketBundle.

virtual BOOL PSingleMonitoredSocket::GetAddress	(	const PString &	iface,
		PIPSocket::Address &	address,
		WORD &	port,
		BOOL	usingNAT
	)			const `[virtual]`

Get the local address for the given interface.

Parameters:

address	Interface to get address for
port	Address of interface
usingNAT	Port listening on Require NAT address/port

Reimplemented from PMonitoredSocketBundle.

virtual PChannel::Errors PSingleMonitoredSocket::WriteToBundle	(	const void *	buf,
		PINDEX	len,
		const PIPSocket::Address &	addr,
		WORD	port,
		const PString &	iface,
		PINDEX &	lastWriteCount
	)			`[virtual]`

Write to the remote address/port using the socket(s) available. If the iface parameter is empty, then the data is written to all socket(s). Otherwise the iface parameter indicates the specific interface socket to write the data to.

Reimplemented from PMonitoredSocketBundle.

virtual PChannel::Errors PSingleMonitoredSocket::ReadFromBundle	(	void *	buf,
		PINDEX	len,
		PIPSocket::Address &	addr,
		WORD &	port,
		PString &	iface,
		PINDEX &	lastReadCount,
		const PTimeInterval &	timeout
	)			`[virtual]`

Read fram a remote address/port using the socket(s) available. If the iface parameter is empty, then the first data received on any socket(s) is used, and the iface parameter is set to the name of that interface. Otherwise the iface parameter indicates the specific interface socket to read the data from.

Reimplemented from PMonitoredSocketBundle.

virtual void PSingleMonitoredSocket::OnAddInterface ( const InterfaceEntry & entry ) [protected, virtual]

Call back function for when an interface has been added to the system.

virtual void PSingleMonitoredSocket::OnRemoveInterface ( const InterfaceEntry & entry ) [protected, virtual]

Call back function for when an interface has been removed from the system.

BOOL PSingleMonitoredSocket::IsInterface ( const PString & iface ) const [protected]
