PMonitoredSocketBundle Class Reference

#include <psockbun.h>

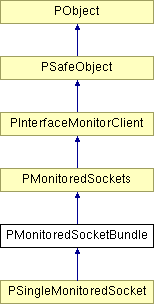

Inheritance diagram for PMonitoredSocketBundle:


Public Member Functions
	PMonitoredSocketBundle (BOOL reuseAddr=FALSE, PSTUNClient *stunClient=NULL)
	~PMonitoredSocketBundle ()
virtual BOOL	Open (WORD port)
virtual BOOL	Close ()
	Close all socket(s).
virtual BOOL	GetAddress (const PString &iface, PIPSocket::Address &address, WORD &port, BOOL usingNAT) const
	Get the local address for the given interface.
virtual PChannel::Errors	WriteToBundle (const void *buf, PINDEX len, const PIPSocket::Address &addr, WORD port, const PString &iface, PINDEX &lastWriteCount)
virtual PChannel::Errors	ReadFromBundle (void *buf, PINDEX len, PIPSocket::Address &addr, WORD &port, PString &iface, PINDEX &lastReadCount, const PTimeInterval &timeout)
Protected Types
typedef std::map< std::string, SocketInfo >	SocketInfoMap_T
Protected Member Functions
virtual void	OnAddInterface (const InterfaceEntry &entry)
	Call back function for when an interface has been added to the system.
virtual void	OnRemoveInterface (const InterfaceEntry &entry)
	Call back function for when an interface has been removed from the system.
void	OpenSocket (const PString &iface)
void	CloseSocket (const SocketInfoMap_T::iterator &iterSocket)
Protected Attributes
SocketInfoMap_T	socketInfoMap

Detailed Description

This concrete class bundles a set of UDP sockets which are dynamically adjusted as interfaces are added and removed from the system.

Member Typedef Documentation

typedef std::map<std::string, SocketInfo> PMonitoredSocketBundle::SocketInfoMap_T [protected]

Constructor & Destructor Documentation

PMonitoredSocketBundle::PMonitoredSocketBundle	(	BOOL	reuseAddr = `FALSE`,
		PSTUNClient *	stunClient = `NULL`
	)

PMonitoredSocketBundle::~PMonitoredSocketBundle ( )

Member Function Documentation

virtual BOOL PMonitoredSocketBundle::Open ( WORD port ) [virtual]

Open the socket(s) using the specified port. If port is zero then a system allocated port is used. In this case and when multiple interfaces are supported, all sockets use the same dynamic port value.

Returns TRUE if all sockets are opened.

Implements PMonitoredSockets.

Reimplemented in PSingleMonitoredSocket.

virtual BOOL PMonitoredSocketBundle::Close ( ) [virtual]

Close all socket(s).

Implements PMonitoredSockets.

Reimplemented in PSingleMonitoredSocket.

virtual BOOL PMonitoredSocketBundle::GetAddress	(	const PString &	iface,
		PIPSocket::Address &	address,
		WORD &	port,
		BOOL	usingNAT
	)			const `[virtual]`

Get the local address for the given interface.

Parameters:

address	Interface to get address for
port	Address of interface
usingNAT	Port listening on Require NAT address/port

Implements PMonitoredSockets.

Reimplemented in PSingleMonitoredSocket.

virtual PChannel::Errors PMonitoredSocketBundle::WriteToBundle	(	const void *	buf,
		PINDEX	len,
		const PIPSocket::Address &	addr,
		WORD	port,
		const PString &	iface,
		PINDEX &	lastWriteCount
	)			`[virtual]`

Write to the remote address/port using the socket(s) available. If the iface parameter is empty, then the data is written to all socket(s). Otherwise the iface parameter indicates the specific interface socket to write the data to.

Implements PMonitoredSockets.

Reimplemented in PSingleMonitoredSocket.

virtual PChannel::Errors PMonitoredSocketBundle::ReadFromBundle	(	void *	buf,
		PINDEX	len,
		PIPSocket::Address &	addr,
		WORD &	port,
		PString &	iface,
		PINDEX &	lastReadCount,
		const PTimeInterval &	timeout
	)			`[virtual]`

Read fram a remote address/port using the socket(s) available. If the iface parameter is empty, then the first data received on any socket(s) is used, and the iface parameter is set to the name of that interface. Otherwise the iface parameter indicates the specific interface socket to read the data from.

Implements PMonitoredSockets.

Reimplemented in PSingleMonitoredSocket.

virtual void PMonitoredSocketBundle::OnAddInterface ( const InterfaceEntry & entry ) [protected, virtual]

Call back function for when an interface has been added to the system.

Implements PInterfaceMonitorClient.

virtual void PMonitoredSocketBundle::OnRemoveInterface ( const InterfaceEntry & entry ) [protected, virtual]

Call back function for when an interface has been removed from the system.

Implements PInterfaceMonitorClient.

void PMonitoredSocketBundle::OpenSocket ( const PString & iface ) [protected]
