SIP_PDU Class Reference

#include <sippdu.h>

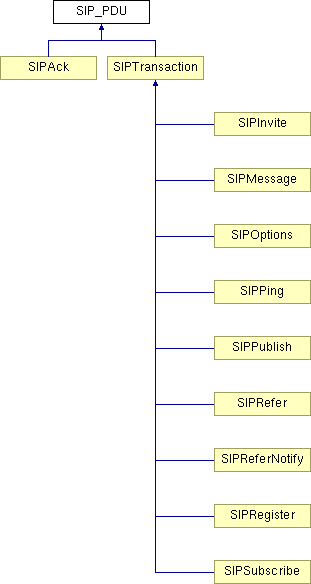

Inheritance diagram for SIP_PDU:

SIPAck SIPTransaction SIPInvite SIPMessage SIPOptions SIPPing SIPPublish SIPRefer SIPReferNotify SIPRegister SIPSubscribe List of all members.

Public Types

enum  Methods {
  Method_INVITE, Method_ACK, Method_OPTIONS, Method_BYE,
  Method_CANCEL, Method_REGISTER, Method_SUBSCRIBE, Method_NOTIFY,
  Method_REFER, Method_MESSAGE, Method_INFO, Method_PING,
  Method_PUBLISH, NumMethods
}
enum  StatusCodes {
  IllegalStatusCode, Information_Trying = 100, Information_Ringing = 180, Information_CallForwarded = 181,
  Information_Queued = 182, Information_Session_Progress = 183, Successful_OK = 200, Successful_Accepted = 202,
  Redirection_MultipleChoices = 300, Redirection_MovedPermanently = 301, Redirection_MovedTemporarily = 302, Redirection_UseProxy = 305,
  Redirection_AlternativeService = 380, Failure_BadRequest = 400, Failure_UnAuthorised = 401, Failure_PaymentRequired = 402,
  Failure_Forbidden = 403, Failure_NotFound = 404, Failure_MethodNotAllowed = 405, Failure_NotAcceptable = 406,
  Failure_ProxyAuthenticationRequired = 407, Failure_RequestTimeout = 408, Failure_Conflict = 409, Failure_Gone = 410,
  Failure_LengthRequired = 411, Failure_RequestEntityTooLarge = 413, Failure_RequestURITooLong = 414, Failure_UnsupportedMediaType = 415,
  Failure_UnsupportedURIScheme = 416, Failure_BadExtension = 420, Failure_ExtensionRequired = 421, Failure_IntervalTooBrief = 423,
  Failure_TemporarilyUnavailable = 480, Failure_TransactionDoesNotExist = 481, Failure_LoopDetected = 482, Failure_TooManyHops = 483,
  Failure_AddressIncomplete = 484, Failure_Ambiguous = 485, Failure_BusyHere = 486, Failure_RequestTerminated = 487,
  Failure_NotAcceptableHere = 488, Failure_BadEvent = 489, Failure_RequestPending = 491, Failure_Undecipherable = 493,
  Failure_InternalServerError = 500, Failure_NotImplemented = 501, Failure_BadGateway = 502, Failure_ServiceUnavailable = 503,
  Failure_ServerTimeout = 504, Failure_SIPVersionNotSupported = 505, Failure_MessageTooLarge = 513, GlobalFailure_BusyEverywhere = 600,
  GlobalFailure_Decline = 603, GlobalFailure_DoesNotExistAnywhere = 604, GlobalFailure_NotAcceptable = 606, MaxStatusCode = 699
}
enum  { MaxSize = 65535 }

Public Member Functions

 SIP_PDU ()
 SIP_PDU (Methods method, const SIPURL &dest, const PString &to, const PString &from, const PString &callID, unsigned cseq, const OpalTransportAddress &via)
 SIP_PDU (Methods method, SIPConnection &connection, const OpalTransport &transport)
 SIP_PDU (const SIP_PDU &request, StatusCodes code, const char *contact=NULL, const char *extra=NULL)
 SIP_PDU (const SIP_PDU &)
SIP_PDU & operator= (const SIP_PDU &)
 ~SIP_PDU ()
void PrintOn (ostream &strm) const
void Construct (Methods method)
void Construct (Methods method, const SIPURL &dest, const PString &to, const PString &from, const PString &callID, unsigned cseq, const OpalTransportAddress &via)
void Construct (Methods method, SIPConnection &connection, const OpalTransport &transport)
BOOL SetRoute (const PStringList &routeSet)
void SetAllow (void)
void AdjustVia (OpalTransport &transport)
OpalTransportAddress GetViaAddress (OpalEndPoint &)
OpalTransportAddress GetSendAddress (const PStringList &routeSet)
BOOL Read (OpalTransport &transport)
BOOL Write (OpalTransport &transport, const OpalTransportAddress &remoteAddress=OpalTransportAddress())
PString Build ()
PString GetTransactionID () const
Methods GetMethod () const
StatusCodes GetStatusCode () const
const SIPURL & GetURI () const
unsigned GetVersionMajor () const
unsigned GetVersionMinor () const
const PString & GetEntityBody () const
PString & GetEntityBody ()
const PString & GetInfo () const
const SIPMIMEInfo & GetMIME () const
SIPMIMEInfo & GetMIME ()
BOOL HasSDP () const
SDPSessionDescription & GetSDP () const
void SetSDP (SDPSessionDescription *s)
void SetSDP (const SDPSessionDescription &s)

Static Public Member Functions

static const char * GetStatusCodeDescription (int code)

Protected Attributes

Methods method
StatusCodes statusCode
SIPURL uri
unsigned versionMajor
unsigned versionMinor
PString info
SIPMIMEInfo mime
PString entityBody
OpalTransportAddress lastTransportAddress
SDPSessionDescription * sdp

Detailed Description

Session Initiation Protocol message. Each message contains a header, MIME lines and possibly SDP. Class provides methods for reading from and writing to transport.

Member Enumeration Documentation

enum SIP_PDU::Methods

Enumerator:
Method_INVITE
Method_ACK
Method_OPTIONS
Method_BYE
Method_CANCEL
Method_REGISTER
Method_SUBSCRIBE
Method_NOTIFY
Method_REFER
Method_MESSAGE
Method_INFO
Method_PING
Method_PUBLISH
NumMethods

enum SIP_PDU::StatusCodes

Enumerator:
IllegalStatusCode
Information_Trying
Information_Ringing
Information_CallForwarded
Information_Queued
Information_Session_Progress
Successful_OK
Successful_Accepted
Redirection_MultipleChoices
Redirection_MovedPermanently
Redirection_MovedTemporarily
Redirection_UseProxy
Redirection_AlternativeService
Failure_BadRequest
Failure_UnAuthorised
Failure_PaymentRequired
Failure_Forbidden
Failure_NotFound
Failure_MethodNotAllowed
Failure_NotAcceptable
Failure_ProxyAuthenticationRequired
Failure_RequestTimeout
Failure_Conflict
Failure_Gone
Failure_LengthRequired
Failure_RequestEntityTooLarge
Failure_RequestURITooLong
Failure_UnsupportedMediaType
Failure_UnsupportedURIScheme
Failure_BadExtension
Failure_ExtensionRequired
Failure_IntervalTooBrief
Failure_TemporarilyUnavailable
Failure_TransactionDoesNotExist
Failure_LoopDetected
Failure_TooManyHops
Failure_AddressIncomplete
Failure_Ambiguous
Failure_BusyHere
Failure_RequestTerminated
Failure_NotAcceptableHere
Failure_BadEvent
Failure_RequestPending
Failure_Undecipherable
Failure_InternalServerError
Failure_NotImplemented
Failure_BadGateway
Failure_ServiceUnavailable
Failure_ServerTimeout
Failure_SIPVersionNotSupported
Failure_MessageTooLarge
GlobalFailure_BusyEverywhere
GlobalFailure_Decline
GlobalFailure_DoesNotExistAnywhere
GlobalFailure_NotAcceptable
MaxStatusCode

anonymous enum

Enumerator:
MaxSize

Constructor & Destructor Documentation

SIP_PDU::SIP_PDU (  )

SIP_PDU::SIP_PDU ( Methods  method,
const SIPURL &  dest,
const PString &  to,
const PString &  from,
const PString &  callID,
unsigned  cseq,
const OpalTransportAddress &  via
)

Construct a Request message

SIP_PDU::SIP_PDU ( Methods  method,
SIPConnection &  connection,
const OpalTransport &  transport
)

Construct a Request message for requests in a dialog

SIP_PDU::SIP_PDU ( const SIP_PDU &  request,
StatusCodes  code,
const char *  contact = NULL,
const char *  extra = NULL
)

Construct a Response message extra is passed as message body

SIP_PDU::SIP_PDU ( const SIP_PDU &   )

SIP_PDU::~SIP_PDU (  )

Member Function Documentation

static const char* SIP_PDU::GetStatusCodeDescription ( int  code  )  [static]

SIP_PDU& SIP_PDU::operator= ( const SIP_PDU &   )

void SIP_PDU::PrintOn ( ostream &  strm  )  const

void SIP_PDU::Construct ( Methods  method  )

void SIP_PDU::Construct ( Methods  method,
const SIPURL &  dest,
const PString &  to,
const PString &  from,
const PString &  callID,
unsigned  cseq,
const OpalTransportAddress &  via
)

void SIP_PDU::Construct ( Methods  method,
SIPConnection &  connection,
const OpalTransport &  transport
)

BOOL SIP_PDU::SetRoute ( const PStringList &  routeSet  )

Add and populate Route header following the given routeSet. If first route is strict, exchange with URI. Returns TRUE if routeSet.

void SIP_PDU::SetAllow ( void   )

Set mime allow field to all supported methods.

void SIP_PDU::AdjustVia ( OpalTransport &  transport  )

Update the VIA field following RFC3261, 18.2.1 and RFC3581.

OpalTransportAddress SIP_PDU::GetViaAddress ( OpalEndPoint &   )

Return the address from the via field. That address should be used to send responses to incoming PDUs.

OpalTransportAddress SIP_PDU::GetSendAddress ( const PStringList &  routeSet  )

Return the address to which the request PDU should be sent according to the RFC, for a request in a dialog.

BOOL SIP_PDU::Read ( OpalTransport &  transport  )

Read PDU from the specified transport.

BOOL SIP_PDU::Write ( OpalTransport &  transport,
const OpalTransportAddress &  remoteAddress = OpalTransportAddress()
)

Write the PDU to the transport.

PString SIP_PDU::Build (  )

Construct the PDU string to output. Returns the total length of the PDU.

PString SIP_PDU::GetTransactionID (  )  const

Methods SIP_PDU::GetMethod (  )  const [inline]

StatusCodes SIP_PDU::GetStatusCode (  )  const [inline]

const SIPURL& SIP_PDU::GetURI (  )  const [inline]

unsigned SIP_PDU::GetVersionMajor (  )  const [inline]

unsigned SIP_PDU::GetVersionMinor (  )  const [inline]

const PString& SIP_PDU::GetEntityBody (  )  const [inline]

PString& SIP_PDU::GetEntityBody (  )  [inline]

const PString& SIP_PDU::GetInfo (  )  const [inline]

const SIPMIMEInfo& SIP_PDU::GetMIME (  )  const [inline]

SIPMIMEInfo& SIP_PDU::GetMIME (  )  [inline]

BOOL SIP_PDU::HasSDP (  )  const [inline]

SDPSessionDescription& SIP_PDU::GetSDP (  )  const [inline]

void SIP_PDU::SetSDP ( SDPSessionDescription *  s  )  [inline]

void SIP_PDU::SetSDP ( const SDPSessionDescription &  s  )  [inline]

Member Data Documentation

Methods SIP_PDU::method [protected]

StatusCodes SIP_PDU::statusCode [protected]

SIPURL SIP_PDU::uri [protected]

unsigned SIP_PDU::versionMajor [protected]

unsigned SIP_PDU::versionMinor [protected]

PString SIP_PDU::info [protected]

SIPMIMEInfo SIP_PDU::mime [protected]

PString SIP_PDU::entityBody [protected]

OpalTransportAddress SIP_PDU::lastTransportAddress [protected]

SDPSessionDescription* SIP_PDU::sdp [protected]

The documentation for this class was generated from the following file:
