#include <endpoint.h>

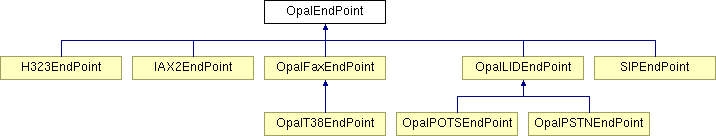

Inheritance diagram for OpalEndPoint:
Public Types | |
| enum | Attributes { CanTerminateCall = 1, HasLineInterface = 2 } |
Public Member Functions | |
| virtual PString | GetDefaultTransport () const |
| virtual void | OnNewConnection (OpalCall &call, OpalConnection &conn) |
| virtual void | SetDefaultSecurityMode (const PString &v) |
| virtual PString | GetDefaultSecurityMode () const |
| virtual BOOL | UseRTPAggregation () const |
| void | SetRTPAggregationSize (PINDEX size) |
| PINDEX | GetRTPAggregationSize () const |
| PHandleAggregator * | GetRTPAggregator () |
| virtual BOOL | AdjustInterfaceTable (PIPSocket::Address &remoteAddress, PIPSocket::InterfaceTable &interfaceTable) |
| virtual BOOL | IsRTPNATEnabled (OpalConnection &conn, const PIPSocket::Address &localAddr, const PIPSocket::Address &peerAddr, const PIPSocket::Address &sigAddr, BOOL incoming) |
Overrides from PObject | |
| void | PrintOn (ostream &strm) const |
Listeners management | |
| BOOL | StartListeners (const PStringArray &interfaces) |
| BOOL | StartListener (const OpalTransportAddress &iface) |
| BOOL | StartListener (OpalListener *listener) |
| virtual PStringArray | GetDefaultListeners () const |
| OpalListener * | FindListener (const OpalTransportAddress &iface) |
| BOOL | StopListener (const OpalTransportAddress &iface) |
| BOOL | RemoveListener (OpalListener *listener) |
| OpalTransportAddressArray | GetInterfaceAddresses (BOOL excludeLocalHost=TRUE, OpalTransport *associatedTransport=NULL) |
| PDECLARE_NOTIFIER (PThread, OpalEndPoint, ListenerCallback) | |
| virtual BOOL | NewIncomingConnection (OpalTransport *transport) |
Connection management | |
| virtual BOOL | MakeConnection (OpalCall &call, const PString &party, void *userData=NULL, unsigned int options=0, OpalConnection::StringOptions *stringOptions=NULL)=0 |
| virtual BOOL | OnSetUpConnection (OpalConnection &connection) |
| virtual BOOL | OnIncomingConnection (OpalConnection &connection, unsigned options, OpalConnection::StringOptions *stringOptions) |
| virtual BOOL | OnIncomingConnection (OpalConnection &connection, unsigned options) |
| virtual BOOL | OnIncomingConnection (OpalConnection &connection) |
| virtual void | OnAlerting (OpalConnection &connection) |
| virtual OpalConnection::AnswerCallResponse | OnAnswerCall (OpalConnection &connection, const PString &caller) |
| virtual void | OnConnected (OpalConnection &connection) |
| virtual void | OnEstablished (OpalConnection &connection) |
| virtual void | OnReleased (OpalConnection &connection) |
| void | OnHold (OpalConnection &connection) |
| virtual BOOL | OnForwarded (OpalConnection &connection, const PString &remoteParty) |
| virtual BOOL | ClearCall (const PString &token, OpalConnection::CallEndReason reason=OpalConnection::EndedByLocalUser, PSyncPoint *sync=NULL) |
| virtual BOOL | ClearCallSynchronous (const PString &token, OpalConnection::CallEndReason reason=OpalConnection::EndedByLocalUser, PSyncPoint *sync=NULL) |
| virtual void | ClearAllCalls (OpalConnection::CallEndReason reason=OpalConnection::EndedByLocalUser, BOOL wait=TRUE) |
| PSafePtr< OpalConnection > | GetConnectionWithLock (const PString &token, PSafetyMode mode=PSafeReadWrite) |
| PStringList | GetAllConnections () |
| virtual BOOL | HasConnection (const PString &token) |
| virtual void | DestroyConnection (OpalConnection *connection) |
Media Streams management | |
| virtual OpalMediaFormatList | GetMediaFormats () const=0 |
| virtual void | AdjustMediaFormats (const OpalConnection &connection, OpalMediaFormatList &mediaFormats) const |
| virtual BOOL | OnOpenMediaStream (OpalConnection &connection, OpalMediaStream &stream) |
| virtual void | OnClosedMediaStream (const OpalMediaStream &stream) |
User indications | |
| virtual void | OnUserInputString (OpalConnection &connection, const PString &value) |
| virtual void | OnUserInputTone (OpalConnection &connection, char tone, int duration) |
| virtual PString | ReadUserInput (OpalConnection &connection, const char *terminators="#\r\n", unsigned lastDigitTimeout=4, unsigned firstDigitTimeout=30) |
Other services | |
| virtual BOOL | GarbageCollection () |
Member variable access | |
| OpalManager & | GetManager () const |
| const PString & | GetPrefixName () const |
| BOOL | HasAttribute (Attributes opt) const |
| WORD | GetDefaultSignalPort () const |
| const OpalProductInfo & | GetProductInfo () const |
| void | SetProductInfo (const OpalProductInfo &info) |
| const PString & | GetDefaultLocalPartyName () const |
| void | SetDefaultLocalPartyName (const PString &name) |
| const PString & | GetDefaultDisplayName () const |
| void | SetDefaultDisplayName (const PString &name) |
| unsigned | GetInitialBandwidth () const |
| void | SetInitialBandwidth (unsigned bandwidth) |
| const OpalListenerList & | GetListeners () const |
| OpalConnection::SendUserInputModes | GetSendUserInputMode () const |
| void | SetSendUserInputMode (OpalConnection::SendUserInputModes mode) |
Protected Member Functions | |
| BOOL | AddConnection (OpalConnection *connection) |
Protected Attributes | |
| OpalManager & | manager |
| PCaselessString | prefixName |
| unsigned | attributeBits |
| WORD | defaultSignalPort |
| OpalProductInfo | productInfo |
| PString | defaultLocalPartyName |
| PString | defaultDisplayName |
| unsigned | initialBandwidth |
| OpalConnection::SendUserInputModes | defaultSendUserInputMode |
| OpalListenerList | listeners |
| OpalEndPoint::ConnectionDict | connectionsActive |
| PMutex | inUseFlag |
| PString | defaultSecurityMode |
Friends | |
| void | OpalManager::GarbageCollection () |
| void | OpalConnection::Release (CallEndReason reason) |
Classes | |
| class | ConnectionDict |
An endpoint will also have a default set of media data formats that it can support. Connections created by it would initially have the same set, but according to the semantics of the underlying protocol may end up using a different set.
Various call backs are provided for points in the connection management. As a rule these are passed straight on to the OpalManager for processing. An application may create descendants off this class' subclasses, eg H323EndPoint, to modify or monitor its behaviour but it does not have to do so as all basic operations are passed to the OpalManager so only that class need be subclassed.
| OpalEndPoint::OpalEndPoint | ( | OpalManager & | manager, | |
| const PCaselessString & | prefix, | |||
| unsigned | attributes | |||
| ) |
Create a new endpoint.
| manager | Manager of all endpoints. |
| prefix | Prefix for URL style address strings |
| attributes | Bit mask of attributes endpoint has |
| OpalEndPoint::~OpalEndPoint | ( | ) |
Destroy the endpoint.
| OpalEndPoint::OpalEndPoint | ( | OpalManager & | manager, | |
| const PCaselessString & | prefix, | |||
| unsigned | attributes | |||
| ) |
Create a new endpoint.
| manager | Manager of all endpoints. |
| prefix | Prefix for URL style address strings |
| attributes | Bit mask of attributes endpoint has |
| OpalEndPoint::~OpalEndPoint | ( | ) |
Destroy the endpoint.
| void OpalEndPoint::PrintOn | ( | ostream & | strm | ) | const |
Standard stream print function. The PObject class has a << operator defined that calls this function polymorphically.
| strm | Stream to output text representation |
| BOOL OpalEndPoint::StartListeners | ( | const PStringArray & | interfaces | ) |
Add a set of listeners to the endoint. This allows for the automatic creating of incoming call connections. An application should use OnConnectionEstablished() to monitor when calls have arrived and been successfully negotiated.
If the list is empty then GetDefaultListeners() is used.
| interfaces | Address of interface to listen on. |
| BOOL OpalEndPoint::StartListener | ( | const OpalTransportAddress & | iface | ) |
Add a listener to the endoint. This allows for the automatic creating of incoming call connections. An application should use OnConnectionEstablished() to monitor when calls have arrived and been successfully negotiated.
If the address is empty then the first entry of GetDefaultListeners() is used.
| iface | Address of interface to listen on. |
| BOOL OpalEndPoint::StartListener | ( | OpalListener * | listener | ) |
Add a listener to the endoint. This allows for the automatic creating of incoming call connections. An application should use OnConnectionEstablished() to monitor when calls have arrived and been successfully negotiated.
| listener | Transport dependent listener. |
| virtual PStringArray OpalEndPoint::GetDefaultListeners | ( | ) | const [virtual] |
Get the default listeners for the endpoint type. Default behaviour returns empty list if defaultSignalPort is zero, else one entry using tcp and INADDR_ANY, eg tcp$*:1720
| OpalListener* OpalEndPoint::FindListener | ( | const OpalTransportAddress & | iface | ) |
Find a listener given the transport address.
| iface | Address of interface we may be listening on. |
| BOOL OpalEndPoint::StopListener | ( | const OpalTransportAddress & | iface | ) |
Stop a listener given the transport address. Returns TRUE if a listener was on that interface, and was stopped.
| iface | Address of interface we may be listening on. |
| BOOL OpalEndPoint::RemoveListener | ( | OpalListener * | listener | ) |
Remove a listener from the endoint. If the listener parameter is NULL then all listeners are removed.
| listener | Transport dependent listener. |
| OpalTransportAddressArray OpalEndPoint::GetInterfaceAddresses | ( | BOOL | excludeLocalHost = TRUE, |
|
| OpalTransport * | associatedTransport = NULL | |||
| ) |
Return a list of the transport addresses for all listeners on this endpoint
| excludeLocalHost | Flag to exclude 127.0.0.1 |
| associatedTransport | Associated transport for precedence and translation |
| OpalEndPoint::PDECLARE_NOTIFIER | ( | PThread | , | |
| OpalEndPoint | , | |||
| ListenerCallback | ||||
| ) |
Handle new incoming connection. This will either create a new connection object or utilise a previously created connection on the same transport address and reference number.
| virtual BOOL OpalEndPoint::NewIncomingConnection | ( | OpalTransport * | transport | ) | [virtual] |
Handle new incoming connection from listener.
A return value of TRUE indicates that the transport object should be deleted by the caller. FALSE indicates that something else (eg the connection) has taken over responsibility for deleting the transport.
The default behaviour just returns TRUE.
| transport | Transport connection came in on |
Reimplemented in H323EndPoint, IAX2EndPoint, and SIPEndPoint.
| virtual BOOL OpalEndPoint::MakeConnection | ( | OpalCall & | call, | |
| const PString & | party, | |||
| void * | userData = NULL, |
|||
| unsigned int | options = 0, |
|||
| OpalConnection::StringOptions * | stringOptions = NULL | |||
| ) | [pure virtual] |
Set up a connection to a remote party. This is called from the OpalManager::MakeConnection() function once it has determined that this is the endpoint for the protocol.
The general form for this party parameter is:
[proto:][alias@][transport$]address[:port]
where the various fields will have meanings specific to the endpoint type. For example, with H.323 it could be "h323:Fred@site.com" which indicates a user Fred at gatekeeper size.com. Whereas for the PSTN endpoint it could be "pstn:5551234" which is to call 5551234 on the first available PSTN line.
The proto field is optional when passed to a specific endpoint. If it is present, however, it must agree with the endpoints protocol name or FALSE is returned.
This function usually returns almost immediately with the connection continuing to occur in a new background thread.
If FALSE is returned then the connection could not be established. For example if a PSTN endpoint is used and the assiciated line is engaged then it may return immediately. Returning a non-NULL value does not mean that the connection will succeed, only that an attempt is being made.
The default behaviour is pure.
| call | Owner of connection |
| party | Remote party to call |
| userData | Arbitrary data to pass to connection |
| options | options to pass to conneciton |
Implemented in H323EndPoint, IAX2EndPoint, OpalLIDEndPoint, SIPEndPoint, and OpalFaxEndPoint.
| virtual BOOL OpalEndPoint::OnSetUpConnection | ( | OpalConnection & | connection | ) | [virtual] |
Callback for outgoing connection, it is invoked after OpalLineConnection::SetUpConnection This function allows the application to set up some parameters or to log some messages
| virtual BOOL OpalEndPoint::OnIncomingConnection | ( | OpalConnection & | connection, | |
| unsigned | options, | |||
| OpalConnection::StringOptions * | stringOptions | |||
| ) | [virtual] |
Call back for answering an incoming call. This function is used for an application to control the answering of incoming calls.
If TRUE is returned then the connection continues. If FALSE then the connection is aborted.
Note this function should not block for any length of time. If the decision to answer the call may take some time eg waiting for a user to pick up the phone, then AnswerCallPending or AnswerCallDeferred should be returned.
If an application overrides this function, it should generally call the ancestor version to complete calls. Unless the application completely takes over that responsibility. Generally, an application would only intercept this function if it wishes to do some form of logging. For this you can obtain the name of the caller by using the function OpalConnection::GetRemotePartyName().
The default behaviour calls the OpalManager function of the same name.
| connection | Connection that is calling |
| options | options for new connection (can't use default value as overrides will fail) |
| virtual BOOL OpalEndPoint::OnIncomingConnection | ( | OpalConnection & | connection, | |
| unsigned | options | |||
| ) | [virtual] |
| connection | Connection that is calling |
| options | options for new connection (can't use default value as overrides will fail) |
| virtual BOOL OpalEndPoint::OnIncomingConnection | ( | OpalConnection & | connection | ) | [virtual] |
| connection | Connection that is calling |
| virtual void OpalEndPoint::OnAlerting | ( | OpalConnection & | connection | ) | [virtual] |
Call back for remote party being alerted. This function is called after the connection is informed that the remote endpoint is "ringing". Generally some time after the MakeConnection() function was called, this is function is called.
If FALSE is returned the connection is aborted.
If an application overrides this function, it should generally call the ancestor version for correct operation. An application would typically only intercept this function if it wishes to do some form of logging. For this you can obtain the name of the caller by using the function OpalConnection::GetRemotePartyName().
The default behaviour calls the OpalManager function of the same name.
| connection | Connection that was established |
| virtual OpalConnection::AnswerCallResponse OpalEndPoint::OnAnswerCall | ( | OpalConnection & | connection, | |
| const PString & | caller | |||
| ) | [virtual] |
Call back for answering an incoming call. This function is called after the connection has been acknowledged but before the connection is established
This gives the application time to wait for some event before signalling to the endpoint that the connection is to proceed. For example the user pressing an "Answer call" button.
If AnswerCallDenied is returned the connection is aborted and the connetion specific end call PDU is sent. If AnswerCallNow is returned then the connection proceeding, Finally if AnswerCallPending is returned then the protocol negotiations are paused until the AnsweringCall() function is called.
The default behaviour simply returns AnswerNow.
| connection | connection that is being answered |
| caller | caller |
Reimplemented in H323EndPoint.
| virtual void OpalEndPoint::OnConnected | ( | OpalConnection & | connection | ) | [virtual] |
A call back function whenever a connection is "connected". This indicates that a connection to an endpoint was connected. That is the endpoint received acknowledgement via whatever protocol it uses that the connection may now start media streams.
In the context of H.323 this means that the CONNECT pdu has been received.
The default behaviour calls the OpalManager function of the same name.
| connection | Connection that was established |
| virtual void OpalEndPoint::OnEstablished | ( | OpalConnection & | connection | ) | [virtual] |
A call back function whenever a connection is established. This indicates that a connection to an endpoint was established. That is the endpoint received acknowledgement via whatever protocol it uses that the connection may now start media streams.
In the context of H.323 this means that the signalling and control channels are open and the TerminalCapabilitySet and MasterSlave negotiations are complete.
The default behaviour does nothing.
| connection | Connection that was established |
Reimplemented in IAX2EndPoint.
| virtual void OpalEndPoint::OnReleased | ( | OpalConnection & | connection | ) | [virtual] |
A call back function whenever a connection is broken. This function can do any internal cleaning up and waiting on background threads that may be using the connection object.
Note that there is not a one to one relationship with the OnEstablishedConnection() function. This function may be called without that function being called. For example if MakeConnection() was used but the call never completed.
Classes that override this function should make sure they call the ancestor version for correct operation.
An application will not typically call this function as it is used by the OpalManager during a release of the connection.
The default behaviour removes the connection from the internal database and calls the OpalManager function of the same name.
| connection | Connection that was established |
| void OpalEndPoint::OnHold | ( | OpalConnection & | connection | ) |
A call back function whenever a connection is "held" or "retrieved". This indicates that a connection to an endpoint was held, or retrieved, either locally or by the remote endpoint.
The default behaviour calls the OpalManager function of the same name.
| connection | Connection that was held |
| virtual BOOL OpalEndPoint::OnForwarded | ( | OpalConnection & | connection, | |
| const PString & | remoteParty | |||
| ) | [virtual] |
A call back function whenever a connection is forwarded.
The default behaviour does nothing.
| connection | Connection that was held |
| remoteParty | The new remote party |
| virtual BOOL OpalEndPoint::ClearCall | ( | const PString & | token, | |
| OpalConnection::CallEndReason | reason = OpalConnection::EndedByLocalUser, |
|||
| PSyncPoint * | sync = NULL | |||
| ) | [virtual] |
Clear a call. This finds the call by using the token then calls the OpalCall::Clear() function on it. All connections are released, and the conenctions and call disposed of. Note that this function returns quickly and the disposal happens at some later time by a background thread. This it is safe to call this function from anywhere.
| token | Token for identifying connection |
| reason | Reason for call clearing |
| sync | Sync point to wait on. |
| virtual BOOL OpalEndPoint::ClearCallSynchronous | ( | const PString & | token, | |
| OpalConnection::CallEndReason | reason = OpalConnection::EndedByLocalUser, |
|||
| PSyncPoint * | sync = NULL | |||
| ) | [virtual] |
Clear a current connection. This hangs up the connection to a remote endpoint. Note that these functions are synchronous
| token | Token for identifying connection |
| reason | Reason for call clearing |
| sync | Sync point to wait on. |
| virtual void OpalEndPoint::ClearAllCalls | ( | OpalConnection::CallEndReason | reason = OpalConnection::EndedByLocalUser, |
|
| BOOL | wait = TRUE | |||
| ) | [virtual] |
Clear all current connections. This hangs up all the connections to remote endpoints. The wait parameter is used to wait for all the calls to be cleared and their memory usage cleaned up before returning. This is typically used in the destructor for your descendant of H323EndPoint.
| reason | Reason for call clearing |
| wait | Flag for wait for calls to e cleared. |
| PSafePtr<OpalConnection> OpalEndPoint::GetConnectionWithLock | ( | const PString & | token, | |
| PSafetyMode | mode = PSafeReadWrite | |||
| ) | [inline] |
Find a connection that uses the specified token. This searches the endpoint for the connection that contains the token as provided by functions such as MakeConnection().
| token | Token to identify connection |
| PStringList OpalEndPoint::GetAllConnections | ( | ) |
Get all calls current on the endpoint.
| virtual BOOL OpalEndPoint::HasConnection | ( | const PString & | token | ) | [virtual] |
Determine if a connection is active.
| token | Token for identifying connection |
| virtual void OpalEndPoint::DestroyConnection | ( | OpalConnection * | connection | ) | [virtual] |
Destroy the connection.
| connection | Connection to destroy |
| virtual OpalMediaFormatList OpalEndPoint::GetMediaFormats | ( | ) | const [pure virtual] |
Get the data formats this endpoint is capable of operating. This provides a list of media data format names that may be used by an OpalMediaStream may be created by a connection from this endpoint.
Note that a specific connection may not actually support all of the media formats returned here, but should return no more.
The default behaviour is pure.
Implemented in H323EndPoint, IAX2EndPoint, OpalLIDEndPoint, SIPEndPoint, OpalFaxEndPoint, and OpalT38EndPoint.
| virtual void OpalEndPoint::AdjustMediaFormats | ( | const OpalConnection & | connection, | |
| OpalMediaFormatList & | mediaFormats | |||
| ) | const [virtual] |
Adjust media formats available on a connection. This is called by a connection after it has called OpalCall::GetMediaFormats() to get all media formats that it can use so that an application may remove or reorder the media formats before they are used to open media streams.
The default behaviour calls the OpalManager function of the same name.
| connection | Connection that is about to use formats |
| mediaFormats | Media formats to use |
| virtual BOOL OpalEndPoint::OnOpenMediaStream | ( | OpalConnection & | connection, | |
| OpalMediaStream & | stream | |||
| ) | [virtual] |
Call back when opening a media stream. This function is called when a connection has created a new media stream according to the logic of its underlying protocol.
The usual requirement is that media streams are created on all other connections participating in the call and all of the media streams are attached to an instance of an OpalMediaPatch object that will read from one of the media streams passing data to the other media streams.
The default behaviour calls the OpalManager function of the same name.
| connection | Connection that owns the media stream |
| stream | New media stream being opened |
| virtual void OpalEndPoint::OnClosedMediaStream | ( | const OpalMediaStream & | stream | ) | [virtual] |
Call back for closed a media stream.
The default behaviour calls the OpalManager function of the same name.
| stream | Media stream being closed |
| virtual void OpalEndPoint::OnUserInputString | ( | OpalConnection & | connection, | |
| const PString & | value | |||
| ) | [virtual] |
Call back for remote enpoint has sent user input as a string.
The default behaviour calls the OpalManager function of the same name.
| connection | Connection input has come from |
| value | String value of indication |
| virtual void OpalEndPoint::OnUserInputTone | ( | OpalConnection & | connection, | |
| char | tone, | |||
| int | duration | |||
| ) | [virtual] |
Call back for remote enpoint has sent user input. If duration is zero then this indicates the beginning of the tone. If duration is non-zero then it indicates the end of the tone output.
The default behaviour calls the OpalManager function of the same name.
| connection | Connection input has come from |
| tone | Tone received |
| duration | Duration of tone |
| virtual PString OpalEndPoint::ReadUserInput | ( | OpalConnection & | connection, | |
| const char * | terminators = "#\r\n", |
|||
| unsigned | lastDigitTimeout = 4, |
|||
| unsigned | firstDigitTimeout = 30 | |||
| ) | [virtual] |
Read a sequence of user indications from connection with timeouts.
| connection | Connection to read input from |
| terminators | Characters that can terminte input |
| lastDigitTimeout | Timeout on last digit in string |
| firstDigitTimeout | Timeout on receiving any digits |
| virtual BOOL OpalEndPoint::GarbageCollection | ( | ) | [virtual] |
Execute garbage collection for endpoint. Returns TRUE if all garbage has been collected. Default behaviour deletes the objects in the connectionsActive list.
Reimplemented in SIPEndPoint.
| OpalManager& OpalEndPoint::GetManager | ( | ) | const [inline] |
Get the manager for this endpoint.
| const PString& OpalEndPoint::GetPrefixName | ( | ) | const [inline] |
Get the protocol prefix name for the endpoint.
| BOOL OpalEndPoint::HasAttribute | ( | Attributes | opt | ) | const [inline] |
Get an indication of if this endpoint has particular option.
| WORD OpalEndPoint::GetDefaultSignalPort | ( | ) | const [inline] |
Get the initial bandwidth parameter.
| const OpalProductInfo& OpalEndPoint::GetProductInfo | ( | ) | const [inline] |
Get the product info for all endpoints.
| void OpalEndPoint::SetProductInfo | ( | const OpalProductInfo & | info | ) | [inline] |
Set the product info for all endpoints.
| const PString& OpalEndPoint::GetDefaultLocalPartyName | ( | ) | const [inline] |
Get the default local party name for all connections on this endpoint.
| void OpalEndPoint::SetDefaultLocalPartyName | ( | const PString & | name | ) | [inline] |
Set the default local party name for all connections on this endpoint.
| const PString& OpalEndPoint::GetDefaultDisplayName | ( | ) | const [inline] |
Get the default local display name for all connections on this endpoint.
| void OpalEndPoint::SetDefaultDisplayName | ( | const PString & | name | ) | [inline] |
Set the default local display name for all connections on this endpoint.
| unsigned OpalEndPoint::GetInitialBandwidth | ( | ) | const [inline] |
Get the initial bandwidth parameter.
Reimplemented in H323EndPoint.
| void OpalEndPoint::SetInitialBandwidth | ( | unsigned | bandwidth | ) | [inline] |
Get the initial bandwidth parameter.
Reimplemented in H323EndPoint.
| const OpalListenerList& OpalEndPoint::GetListeners | ( | ) | const [inline] |
Get the set of listeners (incoming call transports) for this endpoint.
| OpalConnection::SendUserInputModes OpalEndPoint::GetSendUserInputMode | ( | ) | const [inline] |
Get the default mode for sending User Input Indications.
| void OpalEndPoint::SetSendUserInputMode | ( | OpalConnection::SendUserInputModes | mode | ) | [inline] |
Set the default mode for sending User Input Indications.
| virtual PString OpalEndPoint::GetDefaultTransport | ( | ) | const [virtual] |
Reimplemented in SIPEndPoint.
| virtual void OpalEndPoint::OnNewConnection | ( | OpalCall & | call, | |
| OpalConnection & | conn | |||
| ) | [virtual] |
| virtual void OpalEndPoint::SetDefaultSecurityMode | ( | const PString & | v | ) | [inline, virtual] |
| virtual PString OpalEndPoint::GetDefaultSecurityMode | ( | ) | const [inline, virtual] |
| virtual BOOL OpalEndPoint::UseRTPAggregation | ( | ) | const [virtual] |
| void OpalEndPoint::SetRTPAggregationSize | ( | PINDEX | size | ) |
Set the RTP aggregation size
| size | max connections per aggregation thread. Value of 1 or zero disables aggregation |
| PINDEX OpalEndPoint::GetRTPAggregationSize | ( | ) | const |
Get the RTP aggregation size
| PHandleAggregator* OpalEndPoint::GetRTPAggregator | ( | ) |
Get the aggregator used for RTP channels
| virtual BOOL OpalEndPoint::AdjustInterfaceTable | ( | PIPSocket::Address & | remoteAddress, | |
| PIPSocket::InterfaceTable & | interfaceTable | |||
| ) | [virtual] |
Callback to allow interface adjustments before connecting to the remote party The default implementation does nothing and returns TRUE
| virtual BOOL OpalEndPoint::IsRTPNATEnabled | ( | OpalConnection & | conn, | |
| const PIPSocket::Address & | localAddr, | |||
| const PIPSocket::Address & | peerAddr, | |||
| const PIPSocket::Address & | sigAddr, | |||
| BOOL | incoming | |||
| ) | [virtual] |
| BOOL OpalEndPoint::AddConnection | ( | OpalConnection * | connection | ) | [protected] |
| void OpalManager::GarbageCollection | ( | ) | [friend] |
| void OpalConnection::Release | ( | CallEndReason | reason | ) | [friend] |
OpalManager& OpalEndPoint::manager [protected] |
PCaselessString OpalEndPoint::prefixName [protected] |
unsigned OpalEndPoint::attributeBits [protected] |
WORD OpalEndPoint::defaultSignalPort [protected] |
OpalProductInfo OpalEndPoint::productInfo [protected] |
PString OpalEndPoint::defaultLocalPartyName [protected] |
PString OpalEndPoint::defaultDisplayName [protected] |
unsigned OpalEndPoint::initialBandwidth [protected] |
OpalListenerList OpalEndPoint::listeners [protected] |
PMutex OpalEndPoint::inUseFlag [protected] |
PString OpalEndPoint::defaultSecurityMode [protected] |
1.5.1
