#include <mediastrm.h>

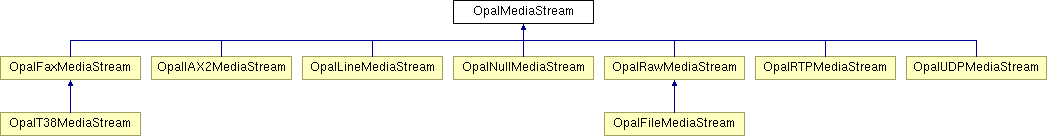

Inheritance diagram for OpalMediaStream:
Public Member Functions | |
| PMutex & | GetDeleteMutex () const |
| PString | GetID () const |
| virtual BOOL | IsNull () const |
Overrides from PObject | |
| void | PrintOn (ostream &strm) const |
Operations | |
| virtual OpalMediaFormat | GetMediaFormat () const |
| virtual BOOL | UpdateMediaFormat (const OpalMediaFormat &mediaFormat) |
| virtual BOOL | ExecuteCommand (const OpalMediaCommand &command) |
| virtual void | SetCommandNotifier (const PNotifier ¬ifier) |
| virtual BOOL | Open () |
| virtual BOOL | Start () |
| virtual BOOL | Close () |
| virtual void | OnPatchStart () |
| virtual BOOL | WritePackets (RTP_DataFrameList &packets) |
| virtual BOOL | ReadPacket (RTP_DataFrame &packet) |
| virtual BOOL | WritePacket (RTP_DataFrame &packet) |
| virtual BOOL | ReadData (BYTE *data, PINDEX size, PINDEX &length) |
| virtual BOOL | WriteData (const BYTE *data, PINDEX length, PINDEX &written) |
| BOOL | PushPacket (RTP_DataFrame &packet) |
| virtual BOOL | SetDataSize (PINDEX dataSize) |
| PINDEX | GetDataSize () const |
| virtual BOOL | IsSynchronous () const=0 |
| virtual BOOL | RequiresPatch () const |
| virtual BOOL | RequiresPatchThread () const |
| virtual void | EnableJitterBuffer () const |
Member variable access | |
| BOOL | IsSource () const |
| BOOL | IsSink () const |
| unsigned | GetSessionID () const |
| unsigned | GetTimestamp () const |
| void | SetTimestamp (unsigned ts) |
| BOOL | GetMarker () const |
| void | SetMarker (BOOL m) |
| BOOL | IsPaused () const |
| void | SetPaused (BOOL p) |
| BOOL | IsOpen () |
| virtual BOOL | SetPatch (OpalMediaPatch *patch) |
| virtual void | RemovePatch (OpalMediaPatch *patch) |
| OpalMediaPatch * | GetPatch () const |
| void | AddFilter (const PNotifier &Filter, const OpalMediaFormat &Stage=OpalMediaFormat()) |
| BOOL | RemoveFilter (const PNotifier &Filter, const OpalMediaFormat &Stage) |
Protected Attributes | |
| OpalMediaFormat | mediaFormat |
| unsigned | sessionID |
| BOOL | paused |
| BOOL | isSource |
| BOOL | isOpen |
| PINDEX | defaultDataSize |
| unsigned | timestamp |
| BOOL | marker |
| unsigned | mismatchedPayloadTypes |
| OpalMediaPatch * | mediaPatch |
| PMutex | patchMutex |
| PNotifier | commandNotifier |
| PMutex | deleteMutex |
| PString | id |
| OpalMediaStream::OpalMediaStream | ( | OpalConnection & | conn, | |
| const OpalMediaFormat & | mediaFormat, | |||
| unsigned | sessionID, | |||
| BOOL | isSource | |||
| ) | [protected] |
Construct a new media stream.
| mediaFormat | Media format for stream |
| sessionID | Session number for stream |
| isSource | Is a source stream |
| OpalMediaStream::~OpalMediaStream | ( | ) |
Destroy the media stream. Make sure the patch, if present, has been stopped and deleted.
| OpalMediaStream::OpalMediaStream | ( | OpalConnection & | conn, | |
| const OpalMediaFormat & | mediaFormat, | |||
| unsigned | sessionID, | |||
| BOOL | isSource | |||
| ) | [protected] |
Construct a new media stream.
| mediaFormat | Media format for stream |
| sessionID | Session number for stream |
| isSource | Is a source stream |
| OpalMediaStream::~OpalMediaStream | ( | ) |
Destroy the media stream. Make sure the patch, if present, has been stopped and deleted.
| void OpalMediaStream::PrintOn | ( | ostream & | strm | ) | const |
Standard stream print function. The PObject class has a << operator defined that calls this function polymorphically.
| strm | Stream to output text representation |
| virtual OpalMediaFormat OpalMediaStream::GetMediaFormat | ( | ) | const [virtual] |
Get the currently selected media format. The media data format is a string representation of the format being transferred by the media channel. It is typically a value as provided by the RTP_PayloadType class.
The default behaviour simply returns the member variable "mediaFormat".
| virtual BOOL OpalMediaStream::UpdateMediaFormat | ( | const OpalMediaFormat & | mediaFormat | ) | [virtual] |
Update the media format. This can be used to adjust the parameters of a codec at run time. Note you cannot change the basic media format, eg change GSM0610 to G.711, only options for that format, eg 6k3 mode to 5k3 mode in G.723.1.
The default behaviour updates the mediaFormat member variable and pases the value on to the OpalMediaPatch.
| mediaFormat | New media format |
| virtual BOOL OpalMediaStream::ExecuteCommand | ( | const OpalMediaCommand & | command | ) | [virtual] |
Execute the command specified to the transcoder. The commands are highly context sensitive, for example VideoFastUpdate would only apply to a video transcoder.
The default behaviour passes the command on to the OpalMediaPatch.
| command | Command to execute. |
| virtual void OpalMediaStream::SetCommandNotifier | ( | const PNotifier & | notifier | ) | [virtual] |
Set a notifier to receive commands generated by the transcoder. The commands are highly context sensitive, for example VideoFastUpdate would only apply to a video transcoder.
The default behaviour passes the command on to the OpalMediaPatch and sets the member variable commandNotifier.
| notifier | Command to execute. |
| virtual BOOL OpalMediaStream::Open | ( | ) | [virtual] |
Open the media stream using the media format.
The default behaviour simply sets the isOpen variable to TRUE.
Reimplemented in OpalIAX2MediaStream, OpalLineMediaStream, OpalRTPMediaStream, and OpalFaxMediaStream.
| virtual BOOL OpalMediaStream::Start | ( | ) | [virtual] |
Start the media stream.
The default behaviour calls Resume() on the associated OpalMediaPatch thread if it was suspended.
Reimplemented in OpalIAX2MediaStream, and OpalFaxMediaStream.
| virtual BOOL OpalMediaStream::Close | ( | ) | [virtual] |
Close the media stream.
The default does nothing.
Reimplemented in OpalIAX2MediaStream, OpalLineMediaStream, OpalRTPMediaStream, OpalRawMediaStream, OpalUDPMediaStream, and OpalFaxMediaStream.
| virtual void OpalMediaStream::OnPatchStart | ( | ) | [inline, virtual] |
Callback that is called on the source stream once the media patch has started. The default behaviour does nothing
| virtual BOOL OpalMediaStream::WritePackets | ( | RTP_DataFrameList & | packets | ) | [virtual] |
Write a list of RTP frames of data to the sink media stream. The default behaviour simply calls WritePacket() on each of the elements in the list.
| virtual BOOL OpalMediaStream::ReadPacket | ( | RTP_DataFrame & | packet | ) | [virtual] |
Read an RTP frame of data from the source media stream. The default behaviour simply calls ReadData() on the data portion of the RTP_DataFrame and sets the frames timestamp and marker from the internal member variables of the media stream class.
Reimplemented in OpalIAX2MediaStream, OpalRTPMediaStream, OpalUDPMediaStream, OpalFaxMediaStream, and OpalT38MediaStream.
| virtual BOOL OpalMediaStream::WritePacket | ( | RTP_DataFrame & | packet | ) | [virtual] |
Write an RTP frame of data to the sink media stream. The default behaviour simply calls WriteData() on the data portion of the RTP_DataFrame and and sets the internal timestamp and marker from the member variables of the media stream class.
Reimplemented in OpalRTPMediaStream, OpalUDPMediaStream, OpalFaxMediaStream, and OpalT38MediaStream.
| virtual BOOL OpalMediaStream::ReadData | ( | BYTE * | data, | |
| PINDEX | size, | |||
| PINDEX & | length | |||
| ) | [virtual] |
Read raw media data from the source media stream. The default behaviour simply calls ReadPacket() on the data portion of the RTP_DataFrame and sets the frames timestamp and marker from the internal member variables of the media stream class.
| data | Data buffer to read to |
| size | Size of buffer |
| length | Length of data actually read |
Reimplemented in OpalLineMediaStream, OpalNullMediaStream, OpalRawMediaStream, and OpalFileMediaStream.
| virtual BOOL OpalMediaStream::WriteData | ( | const BYTE * | data, | |
| PINDEX | length, | |||
| PINDEX & | written | |||
| ) | [virtual] |
Write raw media data to the sink media stream. The default behaviour calls WritePacket() on the data portion of the RTP_DataFrame and and sets the internal timestamp and marker from the member variables of the media stream class.
| data | Data to write |
| length | Length of data to read. |
| written | Length of data actually written |
Reimplemented in OpalIAX2MediaStream, OpalLineMediaStream, OpalNullMediaStream, OpalRawMediaStream, and OpalFileMediaStream.
| BOOL OpalMediaStream::PushPacket | ( | RTP_DataFrame & | packet | ) |
Pushes a frame to the patch
| virtual BOOL OpalMediaStream::SetDataSize | ( | PINDEX | dataSize | ) | [virtual] |
Set the data size in bytes that is expected to be used. Some media streams can make use of this information to perform optimisations.
The default behaviour does nothing.
| dataSize | New data size |
Reimplemented in OpalLineMediaStream, and OpalRTPMediaStream.
| PINDEX OpalMediaStream::GetDataSize | ( | ) | const [inline] |
Get the data size in bytes that is expected to be used. Some media streams can make use of this information to perform optimisations.
| virtual BOOL OpalMediaStream::IsSynchronous | ( | ) | const [pure virtual] |
Indicate if the media stream is synchronous. If this returns TRUE then the media stream will block of the amount of time it takes to annunciate the data. For example if the media stream is over a sound card, and 480 bytes of data are to be written it will take 30 milliseconds to complete.
Implemented in OpalIAX2MediaStream, OpalLineMediaStream, OpalNullMediaStream, OpalRTPMediaStream, OpalFileMediaStream, OpalUDPMediaStream, and OpalFaxMediaStream.
| virtual BOOL OpalMediaStream::RequiresPatch | ( | ) | const [virtual] |
Indicate if the media stream requires a OpalMediaPatch instance. The default behaviour returns TRUE.
Reimplemented in OpalNullMediaStream.
| virtual BOOL OpalMediaStream::RequiresPatchThread | ( | ) | const [virtual] |
Indicate if the media stream requires a OpalMediaPatch thread (active patch). The default behaviour returns TRUE.
Reimplemented in OpalNullMediaStream.
| virtual void OpalMediaStream::EnableJitterBuffer | ( | ) | const [virtual] |
Enable jitter buffer for the media stream.
The default behaviour does nothing.
Reimplemented in OpalRTPMediaStream.
| BOOL OpalMediaStream::IsSource | ( | ) | const [inline] |
Determine of media stream is a source or a sink.
| BOOL OpalMediaStream::IsSink | ( | ) | const [inline] |
Determine of media stream is a source or a sink.
| unsigned OpalMediaStream::GetSessionID | ( | ) | const [inline] |
Get the session number of the stream.
| unsigned OpalMediaStream::GetTimestamp | ( | ) | const [inline] |
Get the timestamp of last read.
| void OpalMediaStream::SetTimestamp | ( | unsigned | ts | ) | [inline] |
Set timestamp for next write.
| BOOL OpalMediaStream::GetMarker | ( | ) | const [inline] |
Get the marker bit of last read.
| void OpalMediaStream::SetMarker | ( | BOOL | m | ) | [inline] |
Set marker bit for next write.
| BOOL OpalMediaStream::IsPaused | ( | ) | const [inline] |
Get the paused state for writing.
| void OpalMediaStream::SetPaused | ( | BOOL | p | ) | [inline] |
Set the paused state for writing.
| BOOL OpalMediaStream::IsOpen | ( | ) | [inline] |
Returns TRUE if the media stream is open.
| virtual BOOL OpalMediaStream::SetPatch | ( | OpalMediaPatch * | patch | ) | [virtual] |
Set the patch thread that is using this stream.
| patch | Media patch thread |
| virtual void OpalMediaStream::RemovePatch | ( | OpalMediaPatch * | patch | ) | [virtual] |
Remove the patch thread that is using this stream. This function is useful in case of streams which can be accessed by multiple instances of OpalMediaPatch.
The default behaviour simply sets patchThread to NULL.
| OpalMediaPatch* OpalMediaStream::GetPatch | ( | ) | const [inline] |
Get the patch thread that is using the stream.
| void OpalMediaStream::AddFilter | ( | const PNotifier & | Filter, | |
| const OpalMediaFormat & | Stage = OpalMediaFormat() | |||
| ) |
Add a filter to the owning patch safely.
| BOOL OpalMediaStream::RemoveFilter | ( | const PNotifier & | Filter, | |
| const OpalMediaFormat & | Stage | |||
| ) |
Remove a filter from the owning patch safely.
| PMutex& OpalMediaStream::GetDeleteMutex | ( | ) | const [inline] |
Get the mutex that prevents the destructor from completing.
| PString OpalMediaStream::GetID | ( | ) | const [inline] |
Get the ID associated with this stream. Used for detecting two the streams associated with a bidirectional media channel
| virtual BOOL OpalMediaStream::IsNull | ( | ) | const [inline, virtual] |
OpalMediaFormat OpalMediaStream::mediaFormat [protected] |
unsigned OpalMediaStream::sessionID [protected] |
BOOL OpalMediaStream::paused [protected] |
BOOL OpalMediaStream::isSource [protected] |
BOOL OpalMediaStream::isOpen [protected] |
PINDEX OpalMediaStream::defaultDataSize [protected] |
unsigned OpalMediaStream::timestamp [protected] |
BOOL OpalMediaStream::marker [protected] |
unsigned OpalMediaStream::mismatchedPayloadTypes [protected] |
OpalMediaPatch* OpalMediaStream::mediaPatch [protected] |
PMutex OpalMediaStream::patchMutex [protected] |
PNotifier OpalMediaStream::commandNotifier [protected] |
PMutex OpalMediaStream::deleteMutex [mutable, protected] |
PString OpalMediaStream::id [protected] |
