#include <videoio.h>

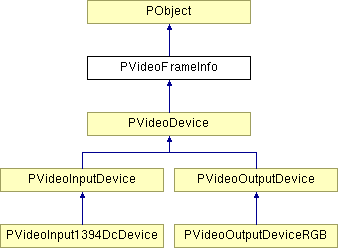

Inheritance diagram for PVideoFrameInfo:
Public Types | |
| eScale | |
| eCropCentre | |
| eCropTopLeft | |
| eMaxResizeMode | |
| SQCIFWidth = 128 | |
| SQCIFHeight = 96 | |
| QCIFWidth = 176 | |
| QCIFHeight = 144 | |
| CIFWidth = 352 | |
| CIFHeight = 288 | |
| CIF4Width = 704 | |
| CIF4Height = 576 | |
| CIF16Width = 1408 | |
| CIF16Height = 1152 | |
| i480Width = 640 | |
| i480Height = 480 | |
| p720Width = 960 | |
| p720Height = 720 | |
| i1080Width = 1920 | |
| i1080Height = 1080 | |
| HDTVWidth = 1920 | |
| HDTVHeight = 1080 | |
| MaxWidth = 1920 | |
| MaxHeight = 1152 | |
| enum | ResizeMode { eScale, eCropCentre, eCropTopLeft, eMaxResizeMode } |
| enum | StandardSizes { SQCIFWidth = 128, SQCIFHeight = 96, QCIFWidth = 176, QCIFHeight = 144, CIFWidth = 352, CIFHeight = 288, CIF4Width = 704, CIF4Height = 576, CIF16Width = 1408, CIF16Height = 1152, i480Width = 640, i480Height = 480, p720Width = 960, p720Height = 720, i1080Width = 1920, i1080Height = 1080, HDTVWidth = 1920, HDTVHeight = 1080, MaxWidth = 1920, MaxHeight = 1152 } |
Public Member Functions | |
| PVideoFrameInfo () | |
| Construct video frame information. | |
| PVideoFrameInfo (unsigned frameWidth, unsigned frameHeight, const PString &colourFormat="YUV420P", unsigned frameRate=15, ResizeMode resizeMode=eScale) | |
| virtual PBoolean | SetFrameSize (unsigned width, unsigned height) |
| Set the frame size to be used. | |
| virtual PBoolean | GetFrameSize (unsigned &width, unsigned &height) const |
| Get the frame size being used. | |
| virtual unsigned | GetFrameWidth () const |
| Get the width of the frame being used. | |
| virtual unsigned | GetFrameHeight () const |
| Get the height of the frame being used. | |
| virtual PBoolean | SetFrameRate (unsigned rate) |
| Set the video frame rate to be used on the device. | |
| virtual unsigned | GetFrameRate () const |
| Get the video frame rate used on the device. | |
| virtual PBoolean | SetColourFormat (const PString &colourFormat) |
| Set the colour format to be used. | |
| virtual const PString & | GetColourFormat () const |
| Get the colour format to be used. | |
| void | SetResizeMode (ResizeMode mode) |
| Set the resize mode to be used. | |
| ResizeMode | GetResizeMode () const |
| Get the resize mode to be used. | |
| PINDEX | CalculateFrameBytes () const |
| Get the number of bytes of an image, given a particular width, height and colour format. | |
| bool | Parse (const PString &str) |
| Parse a descriptor string for the video format. | |
Static Public Member Functions | |
| static PINDEX | CalculateFrameBytes (unsigned width, unsigned height, const PString &colourFormat) |
| static bool | ParseSize (const PString &str, unsigned &width, unsigned &height) |
| Parse the standard size string names. | |
| static PString | AsString (unsigned width, unsigned height) |
| Get a width/height as a standard size string name. | |
Protected Attributes | |
| unsigned | frameWidth |
| unsigned | frameHeight |
| unsigned | frameRate |
| PString | colourFormat |
| ResizeMode | resizeMode |
| PVideoFrameInfo::PVideoFrameInfo | ( | ) |
Construct video frame information.
| PVideoFrameInfo::PVideoFrameInfo | ( | unsigned | frameWidth, | |
| unsigned | frameHeight, | |||
| const PString & | colourFormat = "YUV420P", |
|||
| unsigned | frameRate = 15, |
|||
| ResizeMode | resizeMode = eScale | |||
| ) |
| static PString PVideoFrameInfo::AsString | ( | unsigned | width, | |
| unsigned | height | |||
| ) | [static] |
Get a width/height as a standard size string name.
| width | Width to convert |
| height | Height to convert |
| static PINDEX PVideoFrameInfo::CalculateFrameBytes | ( | unsigned | width, | |
| unsigned | height, | |||
| const PString & | colourFormat | |||
| ) | [static] |
| width | WIdth of frame |
| height | Height of frame |
| colourFormat | Colour format of frame |
| PINDEX PVideoFrameInfo::CalculateFrameBytes | ( | ) | const [inline] |
Get the number of bytes of an image, given a particular width, height and colour format.
| virtual const PString& PVideoFrameInfo::GetColourFormat | ( | ) | const [virtual] |
Get the colour format to be used.
Default behaviour returns the value of the colourFormat variable.
| virtual unsigned PVideoFrameInfo::GetFrameHeight | ( | ) | const [virtual] |
Get the height of the frame being used.
Default behaviour returns the value of the frameHeight variable
| virtual unsigned PVideoFrameInfo::GetFrameRate | ( | ) | const [virtual] |
Get the video frame rate used on the device.
Default behaviour returns the value of the frameRate variable.
| virtual PBoolean PVideoFrameInfo::GetFrameSize | ( | unsigned & | width, | |
| unsigned & | height | |||
| ) | const [virtual] |
Get the frame size being used.
Default behaviour returns the value of the frameWidth and frameHeight variable and returns true.
Reimplemented in PVideoDevice.
| virtual unsigned PVideoFrameInfo::GetFrameWidth | ( | ) | const [virtual] |
Get the width of the frame being used.
Default behaviour returns the value of the frameWidth variable
| ResizeMode PVideoFrameInfo::GetResizeMode | ( | ) | const [inline] |
Get the resize mode to be used.
| bool PVideoFrameInfo::Parse | ( | const PString & | str | ) |
Parse a descriptor string for the video format.
This is of the form [fmt ':' ] size [ '@' rate][ '/' crop ]. The size component is as for the ParseSize() function.
The fmt string is the colour format such as "RGB32", "YUV420P" etc.
The rate field is a simple integer from 1 to 100.
The crop field is one of "scale", "resize" (synonym for "scale"), "centre", "center", "topleft" or "crop" (synonym for "topleft").
Note no spaces are allowed in the descriptor.
| str | String to parse |
| static bool PVideoFrameInfo::ParseSize | ( | const PString & | str, | |
| unsigned & | width, | |||
| unsigned & | height | |||
| ) | [static] |
Parse the standard size string names.
This will parse a size desciption using either standard names: "qcif", "cif", "vga", "hd1080" etc or WxY form e.g. "640x480".
| str | String to parse |
| width | Resultant width |
| height | Resulatant height |
Set the colour format to be used.
Default behaviour sets the value of the colourFormat variable and then returns true if not an empty string.
Reimplemented in PVideoOutputDeviceRGB, and PVideoInput1394DcDevice.
| virtual PBoolean PVideoFrameInfo::SetFrameRate | ( | unsigned | rate | ) | [virtual] |
Set the video frame rate to be used on the device.
Default behaviour sets the value of the frameRate variable and then returns true.
| rate | Frames per second |
Reimplemented in PVideoInput1394DcDevice.
| virtual PBoolean PVideoFrameInfo::SetFrameSize | ( | unsigned | width, | |
| unsigned | height | |||
| ) | [virtual] |
Set the frame size to be used.
Default behaviour sets the frameWidth and frameHeight variables and returns true.
| width | New width of frame |
| height | New height of frame |
Reimplemented in PVideoDevice, PVideoOutputDeviceRGB, and PVideoInput1394DcDevice.
| void PVideoFrameInfo::SetResizeMode | ( | ResizeMode | mode | ) | [inline] |
Set the resize mode to be used.
PString PVideoFrameInfo::colourFormat [protected] |
unsigned PVideoFrameInfo::frameHeight [protected] |
unsigned PVideoFrameInfo::frameRate [protected] |
unsigned PVideoFrameInfo::frameWidth [protected] |
ResizeMode PVideoFrameInfo::resizeMode [protected] |
