PHTTPField Class Reference

This class is the abstract base class for fields in a PHTTPForm resource type. More...

#include <httpform.h>

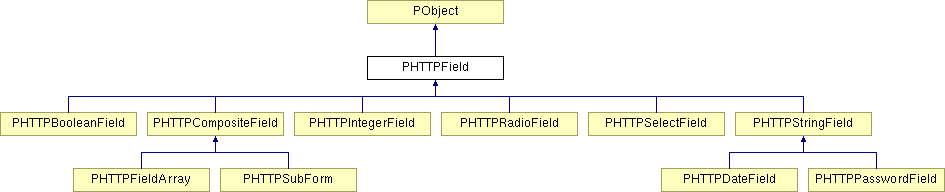

Inheritance diagram for PHTTPField:

List of all members.

Public Member Functions
	PHTTPField (const char *bname, const char *title, const char *help)
virtual Comparison	Compare (const PObject &obj) const
	Compare the fields using the field names.
const PCaselessString &	GetName () const
	Get the identifier name of the field.
const PCaselessString &	GetBaseName () const
	Get the identifier name of the field.
virtual void	SetName (const PString &newName)
	Set the name for the field.
virtual const PHTTPField *	LocateName (const PString &name) const
	Locate the field naem, recusing down for composite fields.
const PString &	GetTitle () const
	Get the title of the field.
const PString &	GetHelp () const
	Get the title of the field.
void	SetHelp (const PString &text)
void	SetHelp (const PString &hotLinkURL, const PString &linkText)
void	SetHelp (const PString &hotLinkURL, const PString &imageURL, const PString &imageText)
virtual PHTTPField *	NewField () const =0
	Create a new field of the same class as the current field.
virtual void	ExpandFieldNames (PString &text, PINDEX start, PINDEX &finish) const
virtual void	GetHTMLTag (PHTML &html) const =0
	Convert the field to HTML form tag for inclusion into the HTTP page.
virtual PString	GetHTMLInput (const PString &input) const
	Convert the field input to HTML for inclusion into the HTTP page.
virtual PString	GetHTMLSelect (const PString &selection) const
	Convert the field input to HTML for inclusion into the HTTP page.
virtual void	GetHTMLHeading (PHTML &html) const
	Convert the field to HTML for inclusion into the HTTP page.
virtual PString	GetValue (PBoolean dflt=false) const =0
	Get the string value of the field.
virtual void	SetValue (const PString &newValue)=0
	Set the value of the field.
virtual void	LoadFromConfig (PConfig &cfg)
	Get the value of the PConfig to the sub-field.
virtual void	SaveToConfig (PConfig &cfg) const
	Set the value of the sub-field into the PConfig.
virtual PBoolean	Validated (const PString &newVal, PStringStream &msg) const
	Validate the new field value before SetValue() is called.
virtual void	GetAllNames (PStringArray &names) const
	Retrieve all the names in the field and subfields.
virtual void	SetAllValues (const PStringToString &data)
	Set the value of the field in a list of fields.
virtual PBoolean	ValidateAll (const PStringToString &data, PStringStream &msg) const
	Validate the new field value in a list before SetValue() is called.
PBoolean	NotYetInHTML () const
void	SetInHTML ()
Protected Attributes
PCaselessString	baseName
PCaselessString	fullName
PString	title
PString	help
PBoolean	notInHTML

---

Detailed Description

This class is the abstract base class for fields in a PHTTPForm resource type.

---

Constructor & Destructor Documentation

PHTTPField::PHTTPField	(	const char *	bname,
		const char *	title,
		const char *	help
	)

---

Member Function Documentation

virtual Comparison PHTTPField::Compare

(

const PObject &

obj

)

const [virtual]

Compare the fields using the field names.

Returns:

Comparison of the name fields of the two fields.

Reimplemented from PObject.

virtual void PHTTPField::ExpandFieldNames	(	PString &	text,
		PINDEX	start,
		PINDEX &	finish
	)			const [virtual]

Reimplemented in PHTTPCompositeField, and PHTTPFieldArray.

virtual void PHTTPField::GetAllNames

(

PStringArray &

names

)

const [virtual]

Retrieve all the names in the field and subfields.

Returns:

Array of strings for each subfield.

Reimplemented in PHTTPCompositeField.

const PCaselessString& PHTTPField::GetBaseName

(

)

const [inline]

Get the identifier name of the field.

Returns:

String for field name.

const PString& PHTTPField::GetHelp

(

)

const [inline]

Get the title of the field.

Returns:

String for title placed next to the field.

virtual void PHTTPField::GetHTMLHeading

(

PHTML &

html

)

const [virtual]

Convert the field to HTML for inclusion into the HTTP page.

Reimplemented in PHTTPCompositeField, and PHTTPSubForm.

virtual PString PHTTPField::GetHTMLInput

(

const PString &

input

)

const [virtual]

Convert the field input to HTML for inclusion into the HTTP page.

Reimplemented in PHTTPCompositeField, PHTTPBooleanField, and PHTTPRadioField.

virtual PString PHTTPField::GetHTMLSelect

(

const PString &

selection

)

const [virtual]

Convert the field input to HTML for inclusion into the HTTP page.

virtual void PHTTPField::GetHTMLTag

(

PHTML &

html

)

const [pure virtual]

Convert the field to HTML form tag for inclusion into the HTTP page.

Implemented in PHTTPCompositeField, PHTTPSubForm, PHTTPFieldArray, PHTTPStringField, PHTTPPasswordField, PHTTPIntegerField, PHTTPBooleanField, PHTTPRadioField, and PHTTPSelectField.

const PCaselessString& PHTTPField::GetName

(

)

const [inline]

Get the identifier name of the field.

Returns:

String for field name.

const PString& PHTTPField::GetTitle

(

)

const [inline]

Get the title of the field.

Returns:

String for title placed next to the field.

virtual PString PHTTPField::GetValue

(

PBoolean

dflt = false

)

const [pure virtual]

Get the string value of the field.

Returns:

String for field value.

Implemented in PHTTPCompositeField, PHTTPStringField, PHTTPPasswordField, PHTTPIntegerField, PHTTPBooleanField, PHTTPRadioField, and PHTTPSelectField.

virtual void PHTTPField::LoadFromConfig

(

PConfig &

cfg

)

[virtual]

Get the value of the PConfig to the sub-field.

If the field is not composite then it always sets the value as for the non-indexed version.

Reimplemented in PHTTPCompositeField, PHTTPFieldArray, PHTTPIntegerField, and PHTTPBooleanField.

virtual const PHTTPField* PHTTPField::LocateName

(

const PString &

name

)

const [virtual]

Locate the field naem, recusing down for composite fields.

Returns:

Pointer to located field, or NULL if not found.

Reimplemented in PHTTPCompositeField.

virtual PHTTPField* PHTTPField::NewField

(

)

const [pure virtual]

Create a new field of the same class as the current field.

Returns:

New field object instance.

Implemented in PHTTPCompositeField, PHTTPSubForm, PHTTPFieldArray, PHTTPStringField, PHTTPPasswordField, PHTTPDateField, PHTTPIntegerField, PHTTPBooleanField, PHTTPRadioField, and PHTTPSelectField.

PBoolean PHTTPField::NotYetInHTML

(

)

const [inline]

virtual void PHTTPField::SaveToConfig

(

PConfig &

cfg

)

const [virtual]

Set the value of the sub-field into the PConfig.

If the field is not composite then it always sets the value as for the non-indexed version.

Reimplemented in PHTTPCompositeField, PHTTPFieldArray, PHTTPIntegerField, and PHTTPBooleanField.

virtual void PHTTPField::SetAllValues

(

const PStringToString &

data

)

[virtual]

Set the value of the field in a list of fields.

Reimplemented in PHTTPCompositeField, and PHTTPFieldArray.

void PHTTPField::SetHelp	(	const PString &	hotLinkURL,
		const PString &	imageURL,
		const PString &	imageText
	)

void PHTTPField::SetHelp	(	const PString &	hotLinkURL,
		const PString &	linkText
	)

void PHTTPField::SetHelp

(

const PString &

text

)

[inline]

void PHTTPField::SetInHTML

(

)

[inline]

virtual void PHTTPField::SetName

(

const PString &

newName

)

[virtual]

Set the name for the field.

Reimplemented in PHTTPCompositeField.

virtual void PHTTPField::SetValue

(

const PString &

newValue

)

[pure virtual]

Set the value of the field.

Implemented in PHTTPCompositeField, PHTTPStringField, PHTTPPasswordField, PHTTPDateField, PHTTPIntegerField, PHTTPBooleanField, PHTTPRadioField, and PHTTPSelectField.

virtual PBoolean PHTTPField::ValidateAll	(	const PStringToString &	data,
		PStringStream &	msg
	)			const [virtual]

Validate the new field value in a list before SetValue() is called.

Returns:

PBoolean if the all the new field values are OK.

Reimplemented in PHTTPCompositeField.

virtual PBoolean PHTTPField::Validated	(	const PString &	newVal,
		PStringStream &	msg
	)			const [virtual]

Validate the new field value before SetValue() is called.

Returns:

PBoolean if the new field value is OK.

Reimplemented in PHTTPDateField, and PHTTPIntegerField.

---

Member Data Documentation

PCaselessString PHTTPField::baseName [protected]

PCaselessString PHTTPField::fullName [protected]

PString PHTTPField::help [protected]

PBoolean PHTTPField::notInHTML [protected]

PString PHTTPField::title [protected]

---

The documentation for this class was generated from the following file:

• httpform.h

---
