#include <videoio.h>

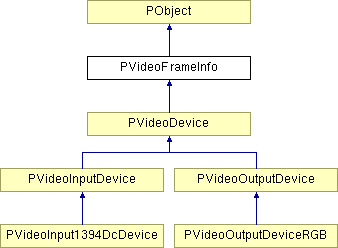

Inheritance diagram for PVideoFrameInfo:
Public Types | |
| eScale | |
| eCropCentre | |
| eCropTopLeft | |
| eMaxResizeMode | |
| SQCIFWidth = 128 | |
| SQCIFHeight = 96 | |
| QCIFWidth = 176 | |
| QCIFHeight = 144 | |
| CIFWidth = 352 | |
| CIFHeight = 288 | |
| CIF4Width = 704 | |
| CIF4Height = 576 | |
| CIF16Width = 1408 | |
| CIF16Height = 1152 | |
| i480Width = 640 | |
| i480Height = 480 | |
| p720Width = 960 | |
| p720Height = 720 | |
| i1080Width = 1920 | |
| i1080Height = 1080 | |
| HDTVWidth = 1920 | |
| HDTVHeight = 1080 | |
| MaxWidth = 1920 | |
| MaxHeight = 1152 | |
| enum | ResizeMode { eScale, eCropCentre, eCropTopLeft, eMaxResizeMode } |
| enum | StandardSizes { SQCIFWidth = 128, SQCIFHeight = 96, QCIFWidth = 176, QCIFHeight = 144, CIFWidth = 352, CIFHeight = 288, CIF4Width = 704, CIF4Height = 576, CIF16Width = 1408, CIF16Height = 1152, i480Width = 640, i480Height = 480, p720Width = 960, p720Height = 720, i1080Width = 1920, i1080Height = 1080, HDTVWidth = 1920, HDTVHeight = 1080, MaxWidth = 1920, MaxHeight = 1152 } |
Public Member Functions | |
| PVideoFrameInfo () | |
| Construct video frame information. | |
| PVideoFrameInfo (unsigned frameWidth, unsigned frameHeight, const PString &colourFormat="YUV420P", unsigned frameRate=15, ResizeMode resizeMode=eScale) | |
| virtual void | PrintOn (ostream &strm) const |
| Output the contents of the object to the stream. | |
| virtual PBoolean | SetFrameSize (unsigned width, unsigned height) |
| Set the frame size to be used. | |
| virtual PBoolean | GetFrameSize (unsigned &width, unsigned &height) const |
| Get the frame size being used. | |
| virtual unsigned | GetFrameWidth () const |
| Get the width of the frame being used. | |
| virtual unsigned | GetFrameHeight () const |
| Get the height of the frame being used. | |
| virtual PBoolean | SetFrameSar (unsigned width, unsigned height) |
| Set the sar size to be used. | |
| virtual PBoolean | GetSarSize (unsigned &width, unsigned &height) const |
| Get the sar size being used. | |
| virtual unsigned | GetSarWidth () const |
| Get the width of the sar being used. | |
| virtual unsigned | GetSarHeight () const |
| Get the height of the sar being used. | |
| virtual PBoolean | SetFrameRate (unsigned rate) |
| Set the video frame rate to be used on the device. | |
| virtual unsigned | GetFrameRate () const |
| Get the video frame rate used on the device. | |
| virtual PBoolean | SetColourFormat (const PString &colourFormat) |
| Set the colour format to be used. | |
| virtual const PString & | GetColourFormat () const |
| Get the colour format to be used. | |
| void | SetResizeMode (ResizeMode mode) |
| Set the resize mode to be used. | |
| ResizeMode | GetResizeMode () const |
| Get the resize mode to be used. | |
| PINDEX | CalculateFrameBytes () const |
| Get the number of bytes of an image, given a particular width, height and colour format. | |
| bool | Parse (const PString &str) |
| Parse a descriptor string for the video format. | |
Static Public Member Functions | |
| static PINDEX | CalculateFrameBytes (unsigned width, unsigned height, const PString &colourFormat) |
| static bool | ParseSize (const PString &str, unsigned &width, unsigned &height) |
| Parse the standard size string names. | |
| static PString | AsString (unsigned width, unsigned height) |
| Get a width/height as a standard size string name. | |
Protected Attributes | |
| unsigned | frameWidth |
| unsigned | frameHeight |
| unsigned | sarWidth |
| unsigned | sarHeight |
| unsigned | frameRate |
| PString | colourFormat |
| ResizeMode | resizeMode |
Friends | |
| ostream & | operator<< (ostream &strm, ResizeMode mode) |
| PVideoFrameInfo::PVideoFrameInfo | ( | ) |
Construct video frame information.
| PVideoFrameInfo::PVideoFrameInfo | ( | unsigned | frameWidth, | |
| unsigned | frameHeight, | |||
| const PString & | colourFormat = "YUV420P", |
|||
| unsigned | frameRate = 15, |
|||
| ResizeMode | resizeMode = eScale | |||
| ) |
| static PString PVideoFrameInfo::AsString | ( | unsigned | width, | |
| unsigned | height | |||
| ) | [static] |
Get a width/height as a standard size string name.
| width | Width to convert |
| height | Height to convert |
| static PINDEX PVideoFrameInfo::CalculateFrameBytes | ( | unsigned | width, | |
| unsigned | height, | |||
| const PString & | colourFormat | |||
| ) | [static] |
| width | WIdth of frame |
| height | Height of frame |
| colourFormat | Colour format of frame |
| PINDEX PVideoFrameInfo::CalculateFrameBytes | ( | ) | const [inline] |
Get the number of bytes of an image, given a particular width, height and colour format.
| virtual const PString& PVideoFrameInfo::GetColourFormat | ( | ) | const [virtual] |
Get the colour format to be used.
Default behaviour returns the value of the colourFormat variable.
| virtual unsigned PVideoFrameInfo::GetFrameHeight | ( | ) | const [virtual] |
Get the height of the frame being used.
Default behaviour returns the value of the frameHeight variable
| virtual unsigned PVideoFrameInfo::GetFrameRate | ( | ) | const [virtual] |
Get the video frame rate used on the device.
Default behaviour returns the value of the frameRate variable.
| virtual PBoolean PVideoFrameInfo::GetFrameSize | ( | unsigned & | width, | |
| unsigned & | height | |||
| ) | const [virtual] |
Get the frame size being used.
Default behaviour returns the value of the frameWidth and frameHeight variable and returns true.
Reimplemented in PVideoDevice.
| virtual unsigned PVideoFrameInfo::GetFrameWidth | ( | ) | const [virtual] |
Get the width of the frame being used.
Default behaviour returns the value of the frameWidth variable
| ResizeMode PVideoFrameInfo::GetResizeMode | ( | ) | const [inline] |
Get the resize mode to be used.
| virtual unsigned PVideoFrameInfo::GetSarHeight | ( | ) | const [virtual] |
Get the height of the sar being used.
Default behaviour returns the value of the sarHeight variable
| virtual PBoolean PVideoFrameInfo::GetSarSize | ( | unsigned & | width, | |
| unsigned & | height | |||
| ) | const [virtual] |
Get the sar size being used.
Default behaviour returns the value of the sarWidth and sarHeight variable and returns PTrue.
| virtual unsigned PVideoFrameInfo::GetSarWidth | ( | ) | const [virtual] |
Get the width of the sar being used.
Default behaviour returns the value of the sarWidth variable
| bool PVideoFrameInfo::Parse | ( | const PString & | str | ) |
Parse a descriptor string for the video format.
This is of the form [fmt ':' ] size [ '@' rate][ '/' crop ]. The size component is as for the ParseSize() function.
The fmt string is the colour format such as "RGB32", "YUV420P" etc.
The rate field is a simple integer from 1 to 100.
The crop field is one of "scale", "resize" (synonym for "scale"), "centre", "center", "topleft" or "crop" (synonym for "topleft").
Note no spaces are allowed in the descriptor.
| str | String to parse |
| static bool PVideoFrameInfo::ParseSize | ( | const PString & | str, | |
| unsigned & | width, | |||
| unsigned & | height | |||
| ) | [static] |
Parse the standard size string names.
This will parse a size desciption using either standard names: "qcif", "cif", "vga", "hd1080" etc or WxY form e.g. "640x480".
| str | String to parse |
| width | Resultant width |
| height | Resulatant height |
| virtual void PVideoFrameInfo::PrintOn | ( | ostream & | strm | ) | const [virtual] |
Output the contents of the object to the stream.
The exact output is dependent on the exact semantics of the descendent class. This is primarily used by the standard operator<< function.
The default behaviour is to print the class name.
Reimplemented from PObject.
Set the colour format to be used.
Default behaviour sets the value of the colourFormat variable and then returns true if not an empty string.
Reimplemented in PVideoOutputDeviceRGB, and PVideoInput1394DcDevice.
| virtual PBoolean PVideoFrameInfo::SetFrameRate | ( | unsigned | rate | ) | [virtual] |
Set the video frame rate to be used on the device.
Default behaviour sets the value of the frameRate variable and then returns true.
| rate | Frames per second |
Reimplemented in PVideoInput1394DcDevice.
| virtual PBoolean PVideoFrameInfo::SetFrameSar | ( | unsigned | width, | |
| unsigned | height | |||
| ) | [virtual] |
Set the sar size to be used.
Default behaviour sets the sarWidth and sarHeight variables and returns PTrue.
| virtual PBoolean PVideoFrameInfo::SetFrameSize | ( | unsigned | width, | |
| unsigned | height | |||
| ) | [virtual] |
Set the frame size to be used.
Default behaviour sets the frameWidth and frameHeight variables and returns true.
| width | New width of frame |
| height | New height of frame |
Reimplemented in PVideoDevice, PVideoOutputDeviceRGB, and PVideoInput1394DcDevice.
| void PVideoFrameInfo::SetResizeMode | ( | ResizeMode | mode | ) | [inline] |
Set the resize mode to be used.
| ostream& operator<< | ( | ostream & | strm, | |
| ResizeMode | mode | |||
| ) | [friend] |
PString PVideoFrameInfo::colourFormat [protected] |
unsigned PVideoFrameInfo::frameHeight [protected] |
unsigned PVideoFrameInfo::frameRate [protected] |
unsigned PVideoFrameInfo::frameWidth [protected] |
ResizeMode PVideoFrameInfo::resizeMode [protected] |
unsigned PVideoFrameInfo::sarHeight [protected] |
unsigned PVideoFrameInfo::sarWidth [protected] |
