PAbstractList Class Reference

This class is a collection of objects which are descendents of the PObject class. More...

#include <lists.h>

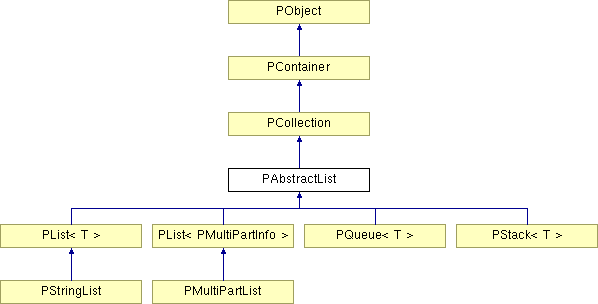

Inheritance diagram for PAbstractList:

List of all members.

Public Member Functions
virtual Comparison	Compare (const PObject &obj) const
	Get the relative rank of the two lists.
Construction
PINLINE	PAbstractList ()
	Create a new, empty, list.
Overrides from class PContainer
virtual PBoolean	SetSize (PINDEX newSize)
	This function is meaningless for lists.
Overrides from class PCollection
virtual PINDEX	Append (PObject *obj)
	Append a new object to the collection.
virtual PINDEX	Insert (const PObject &before, PObject *obj)
	Insert a new object immediately before the specified object.
virtual PINDEX	InsertAt (PINDEX index, PObject *obj)
	Insert a new object at the specified ordinal index.
virtual PBoolean	Remove (const PObject *obj)
	Remove the object from the collection.
virtual PObject *	RemoveAt (PINDEX index)
	Remove the object at the specified ordinal index from the collection.
virtual PBoolean	SetAt (PINDEX index, PObject *val)
	Set the object at the specified ordinal position to the new value.
virtual PBoolean	ReplaceAt (PINDEX index, PObject *val)
	Set the object at the specified ordinal position to the new value.
virtual PObject *	GetAt (PINDEX index) const
	Get the object at the specified ordinal position.
virtual PINDEX	GetObjectsIndex (const PObject *obj) const
	Search the collection for the specific instance of the object.
virtual PINDEX	GetValuesIndex (const PObject &obj) const
	Search the collection for the specified value of the object.
Protected Types
typedef PListElement	Element
Protected Member Functions
PINLINE PObject &	GetReferenceAt (PINDEX index) const
	Get the object at the specified ordinal position.
PBoolean	SetCurrent (PINDEX index, PListElement *&lastElement) const
	Move the internal "cursor" to the index position specified.
PObject *	RemoveElement (PListElement *element)
Protected Attributes
PListInfo *	info

---

Detailed Description

This class is a collection of objects which are descendents of the PObject class.

It is implemeted as a doubly linked list.

The implementation of a list allows very fast inserting and deleting of objects in the collection, but has severe penalties for random access. All object access should be done sequentially to avoid these speed penalties.

The class remembers the last accessed element. This state information is used to optimise access by the "virtual array" model of collections. If access via ordinal index is made sequentially there is little overhead.

The PAbstractList class would very rarely be descended from directly by the user. The PDECLARE_LIST and PLIST macros would normally be used to create descendent classes. They will instantiate the template based on PList or directly declare and define the class (using inline functions) if templates are not being used.

The PList class or PDECLARE_LIST macro will define the correctly typed operators for subscript access (operator[]).

---

Member Typedef Documentation

typedef PListElement PAbstractList::Element [protected]

---

Constructor & Destructor Documentation

PINLINE PAbstractList::PAbstractList

(

)

Create a new, empty, list.

Note that by default, objects placed into the list will be deleted when removed or when all references to the list are destroyed.

---

Member Function Documentation

virtual PINDEX PAbstractList::Append

(

PObject *

obj

)

[virtual]

Append a new object to the collection.

This places a new link at the "tail" of the list.

Returns:

index of the newly added object.

Parameters:

obj	New object to place into the collection.

Implements PCollection.

virtual Comparison PAbstractList::Compare

(

const PObject &

obj

)

const [virtual]

Get the relative rank of the two lists.

The following algorithm is employed for the comparison:

• EqualTo if the two lists are identical in length and each objects values, not pointer, are equal.

• LessThan if the instances object value at an ordinal position is less than the corresponding objects value in the obj parameters list.

This is also returned if all objects are equal and the instances list length is less than the obj parameters list length.

• GreaterThan if the instances object value at an ordinal position is greater than the corresponding objects value in the obj parameters list.

This is also returned if all objects are equal and the instances list length is greater than the obj parameters list length.

Returns:

comparison of the two objects, EqualTo for same, LessThan for obj logically less than the object and GreaterThan for obj logically greater than the object.

Parameters:

obj	Object being compared to

Reimplemented from PObject.

virtual PObject* PAbstractList::GetAt

(

PINDEX

index

)

const [virtual]

Get the object at the specified ordinal position.

If the index was greater than the size of the collection then NULL is returned.

The object accessed in this way is remembered by the class and further access will be fast. Access to elements one either side of that saved element, and the head and tail of the list, will always be fast.

Returns:

pointer to object at the specified index.

Parameters:

index

Index position in the collection of the object.

Implements PCollection.

virtual PINDEX PAbstractList::GetObjectsIndex

(

const PObject *

obj

)

const [virtual]

Search the collection for the specific instance of the object.

The object pointers are compared, not the values. A simple linear search from "head" of the list is performed.

Returns:

ordinal index position of the object, or P_MAX_INDEX.

Parameters:

obj	Object to find.

Implements PCollection.

PINLINE PObject& PAbstractList::GetReferenceAt

(

PINDEX

index

)

const [protected]

Get the object at the specified ordinal position.

If the index was greater than the size of the collection then this asserts.

The object accessed in this way is remembered by the class and further access will be fast. Access to elements one either side of that saved element, and the head and tail of the list, will always be fast.

Returns:

reference to object at the specified index.

Parameters:

index

Ordinal index of the list element to set as current.

virtual PINDEX PAbstractList::GetValuesIndex

(

const PObject &

obj

)

const [virtual]

Search the collection for the specified value of the object.

The object values are compared, not the pointers. So the objects in the collection must correctly implement the PObject::Compare() function. A simple linear search from "head" of the list is performed.

Returns:

ordinal index position of the object, or P_MAX_INDEX.

Parameters:

obj	Object to find value of.

Implements PCollection.

virtual PINDEX PAbstractList::Insert	(	const PObject &	before,
		PObject *	obj
	)			[virtual]

Insert a new object immediately before the specified object.

If the object to insert before is not in the collection then the equivalent of the Append() function is performed.

Note that the object values are compared for the search of the before parameter, not the pointers. So the objects in the collection must correctly implement the PObject::Compare() function.

Returns:

index of the newly inserted object.

Parameters:

before	Object value to insert before.
obj	New object to place into the collection.

Implements PCollection.

virtual PINDEX PAbstractList::InsertAt	(	PINDEX	index,
		PObject *	obj
	)			[virtual]

Insert a new object at the specified ordinal index.

If the index is greater than the number of objects in the collection then the equivalent of the Append() function is performed.

Returns:

index of the newly inserted object.

Parameters:

index	Index position in collection to place the object.
obj	New object to place into the collection.

Implements PCollection.

virtual PBoolean PAbstractList::Remove

(

const PObject *

obj

)

[virtual]

Remove the object from the collection.

If the AllowDeleteObjects option is set then the object is also deleted.

Returns:

true if the object was in the collection.

Parameters:

obj	Existing object to remove from the collection.

Implements PCollection.

virtual PObject* PAbstractList::RemoveAt

(

PINDEX

index

)

[virtual]

Remove the object at the specified ordinal index from the collection.

If the AllowDeleteObjects option is set then the object is also deleted.

Note if the index is beyond the size of the collection then the function will assert.

Returns:

pointer to the object being removed, or NULL if it was deleted.

Parameters:

index

Index position in collection to place the object.

Implements PCollection.

PObject* PAbstractList::RemoveElement

(

PListElement *

element

)

[protected]

virtual PBoolean PAbstractList::ReplaceAt	(	PINDEX	index,
		PObject *	val
	)			[virtual]

Set the object at the specified ordinal position to the new value.

This will overwrite the existing entry. If the AllowDeleteObjects option is set then the old object is also deleted.

Note if the index is beyond the size of the collection then the function will assert.

Returns:

true if the object was successfully replaced.

Parameters:

index	Index position in collection to set.
val	New value to place into the collection.

virtual PBoolean PAbstractList::SetAt	(	PINDEX	index,
		PObject *	val
	)			[virtual]

Set the object at the specified ordinal position to the new value.

This will overwrite the existing entry. This method will NOT delete the old object independently of the AllowDeleteObjects option. Use ReplaceAt() instead.

Note if the index is beyond the size of the collection then the function will assert.

Returns:

true if the object was successfully added.

Parameters:

index	Index position in collection to set.
val	New value to place into the collection.

Implements PCollection.

PBoolean PAbstractList::SetCurrent	(	PINDEX	index,
		PListElement *&	lastElement
	)			const [protected]

Move the internal "cursor" to the index position specified.

This function will optimise the sequential move taking into account the previous current position and the position at the head and tail of the list. Whichever of these three points is closes is used as the starting point for a sequential move to the required index.

Returns:

true if the index could be set as the current element.

Parameters:

index	Ordinal index of the list element to set as current.
lastElement	pointer to final element

virtual PBoolean PAbstractList::SetSize

(

PINDEX

newSize

)

[virtual]

This function is meaningless for lists.

The size of the collection is determined by the addition and removal of objects. The size cannot be set in any other way.

Returns:

Always true.

Parameters:

newSize

New size for the list, this is ignored.

Implements PContainer.

---

Member Data Documentation

PListInfo* PAbstractList::info [protected]

---

The documentation for this class was generated from the following file:

• lists.h

---
