PInterfaceMonitorClient Class Reference

This is a base class for clients of the PInterfaceMonitor singleton object. More...

#include <psockbun.h>

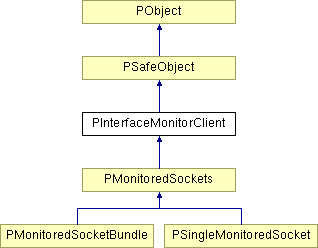

Inheritance diagram for PInterfaceMonitorClient:

List of all members.

Public Types
typedef PIPSocket::InterfaceEntry	InterfaceEntry
	DefaultPriority = 50
enum	{ DefaultPriority = 50 }
Public Member Functions
	PInterfaceMonitorClient (PINDEX priority=DefaultPriority)
	~PInterfaceMonitorClient ()
virtual PStringArray	GetInterfaces (bool includeLoopBack=false, const PIPSocket::Address &destination=PIPSocket::GetDefaultIpAny())
	Get an array of all current interface descriptors, possibly including the loopback (127.0.0.1) interface.
virtual PBoolean	GetInterfaceInfo (const PString &iface, InterfaceEntry &info) const
	Return information about an active interface given the descriptor string.
PINDEX	GetPriority () const
	Returns the priority of this client.
Protected Member Functions
virtual void	OnAddInterface (const InterfaceEntry &entry)=0
	Call back function for when an interface has been added to the system.
virtual void	OnRemoveInterface (const InterfaceEntry &entry)=0
	Call back function for when an interface has been removed from the system.
virtual void	OnRemoveNatMethod (const PNatMethod *)
	Called when a NAT method is about to be destroyed.
Protected Attributes
PINDEX	priority

---

Detailed Description

This is a base class for clients of the PInterfaceMonitor singleton object.

The OnAddInterface() and OnRemoveInterface() functions are called in the context of a thread that is monitoring interfaces. The client object is locked for Read/Write before these functions are called.

---

Member Typedef Documentation

typedef PIPSocket::InterfaceEntry PInterfaceMonitorClient::InterfaceEntry

---

Member Enumeration Documentation

anonymous enum

Enumerator:

DefaultPriority

---

Constructor & Destructor Documentation

PInterfaceMonitorClient::PInterfaceMonitorClient

(

PINDEX

priority = DefaultPriority

)

PInterfaceMonitorClient::~PInterfaceMonitorClient

(

)

---

Member Function Documentation

virtual PBoolean PInterfaceMonitorClient::GetInterfaceInfo	(	const PString &	iface,
		InterfaceEntry &	info
	)			const [virtual]

Return information about an active interface given the descriptor string.

Note that when searchin the descriptor may be a partial match e.g. "10.0.1.11" or "%eth0" may be used.

Parameters:

iface	Interface desciptor name
info	Information on the interface

virtual PStringArray PInterfaceMonitorClient::GetInterfaces	(	bool	includeLoopBack = false,
		const PIPSocket::Address &	destination = PIPSocket::GetDefaultIpAny()
	)			[virtual]

Get an array of all current interface descriptors, possibly including the loopback (127.0.0.1) interface.

Note the names are of the form ipname, eg "10.0.1.11%3Com 3C90x Ethernet Adapter" or "192.168.0.10%eth0". If destination is not 'any' and a filter is set, filters the interface list before returning it.

Parameters:

includeLoopBack	Flag for if loopback is to included in list
destination	Optional destination for selecting specific interface

Reimplemented in PSingleMonitoredSocket.

PINDEX PInterfaceMonitorClient::GetPriority

(

)

const [inline]

Returns the priority of this client.

A higher value means higher priority. Higher priority clients get their callback functions called first. Clients with the same priority get called in the order of their insertion.

virtual void PInterfaceMonitorClient::OnAddInterface

(

const InterfaceEntry &

entry

)

[protected, pure virtual]

Call back function for when an interface has been added to the system.

virtual void PInterfaceMonitorClient::OnRemoveInterface

(

const InterfaceEntry &

entry

)

[protected, pure virtual]

Call back function for when an interface has been removed from the system.

virtual void PInterfaceMonitorClient::OnRemoveNatMethod

(

const PNatMethod *

)

[inline, protected, virtual]

Called when a NAT method is about to be destroyed.

Reimplemented in PMonitoredSockets.

---

Member Data Documentation

PINDEX PInterfaceMonitorClient::priority [protected]

---

The documentation for this class was generated from the following file:

• psockbun.h

---
