PXML Class Reference

#include <pxml.h>

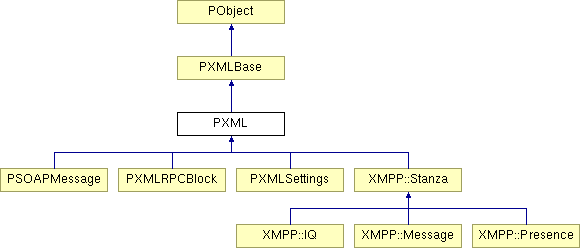

Inheritance diagram for PXML:

List of all members.

Public Types
	EndOfValidationList
	DocType
	ElementName
	RequiredAttribute
	RequiredNonEmptyAttribute
	RequiredAttributeWithValue
	RequiredElement
	Subtree
	RequiredAttributeWithValueMatching
	RequiredElementWithBodyMatching
	OptionalElement
	OptionalAttribute
	OptionalNonEmptyAttribute
	OptionalAttributeWithValue
	OptionalAttributeWithValueMatching
	OptionalElementWithBodyMatching
	SetDefaultNamespace
	SetNamespace
	RequiredAttributeWithValueMatchingEx = RequiredAttributeWithValueMatching + 0x8000
	OptionalAttributeWithValueMatchingEx = OptionalAttributeWithValueMatching + 0x8000
	RequiredElementWithBodyMatchingEx = RequiredElementWithBodyMatching + 0x8000
	OptionalElementWithBodyMatchingEx = OptionalElementWithBodyMatching + 0x8000
enum	ValidationOp {   EndOfValidationList, DocType, ElementName, RequiredAttribute,   RequiredNonEmptyAttribute, RequiredAttributeWithValue, RequiredElement, Subtree,   RequiredAttributeWithValueMatching, RequiredElementWithBodyMatching, OptionalElement, OptionalAttribute,   OptionalNonEmptyAttribute, OptionalAttributeWithValue, OptionalAttributeWithValueMatching, OptionalElementWithBodyMatching,   SetDefaultNamespace, SetNamespace, RequiredAttributeWithValueMatchingEx = RequiredAttributeWithValueMatching + 0x8000, OptionalAttributeWithValueMatchingEx = OptionalAttributeWithValueMatching + 0x8000,   RequiredElementWithBodyMatchingEx = RequiredElementWithBodyMatching + 0x8000, OptionalElementWithBodyMatchingEx = OptionalElementWithBodyMatching + 0x8000 }
Public Member Functions
	PXML (int options=NoOptions, const char *noIndentElements=NULL)
	PXML (const PString &data, int options=NoOptions, const char *noIndentElements=NULL)
	PXML (const PXML &xml)
	~PXML ()
bool	IsLoaded () const
bool	IsDirty () const
bool	Load (const PString &data, Options options=NoOptions)
bool	StartAutoReloadURL (const PURL &url, const PTimeInterval &timeout, const PTimeInterval &refreshTime, Options options=NoOptions)
bool	StopAutoReloadURL ()
PString	GetAutoReloadStatus ()
bool	AutoLoadURL ()
virtual void	OnAutoLoad (PBoolean ok)
bool	LoadURL (const PURL &url)
bool	LoadURL (const PURL &url, const PTimeInterval &timeout, Options options=NoOptions)
bool	LoadFile (const PFilePath &fn, Options options=NoOptions)
virtual void	OnLoaded ()
bool	Save (Options options=NoOptions)
bool	Save (PString &data, Options options=NoOptions)
bool	SaveFile (const PFilePath &fn, Options options=NoOptions)
void	RemoveAll ()
PBoolean	IsNoIndentElement (const PString &elementName) const
PString	AsString () const
void	PrintOn (ostream &strm) const
	Output the contents of the object to the stream.
void	ReadFrom (istream &strm)
	Input the contents of the object from the stream.
PXMLElement *	GetElement (const PCaselessString &name, const PCaselessString &attr, const PString &attrval) const
PXMLElement *	GetElement (const PCaselessString &name, PINDEX idx=0) const
PXMLElement *	GetElement (PINDEX idx) const
PINDEX	GetNumElements () const
PXMLElement *	GetRootElement () const
PXMLElement *	SetRootElement (PXMLElement *p)
PXMLElement *	SetRootElement (const PString &documentType)
bool	RemoveElement (PINDEX idx)
PCaselessString	GetDocumentType () const
bool	Validate (const ValidationInfo *validator)
bool	ValidateElements (ValidationContext &context, PXMLElement *baseElement, const ValidationInfo *elements)
bool	ValidateElement (ValidationContext &context, PXMLElement *element, const ValidationInfo *elements)
PString	GetErrorString () const
unsigned	GetErrorColumn () const
unsigned	GetErrorLine () const
PString	GetDocType () const
void	SetDocType (const PString &v)
PMutex &	GetMutex ()
	PDECLARE_NOTIFIER (PTimer, PXML, AutoReloadTimeout)
	PDECLARE_NOTIFIER (PThread, PXML, AutoReloadThread)
Static Public Member Functions
static PString	CreateStartTag (const PString &text)
static PString	CreateEndTag (const PString &text)
static PString	CreateTagNoData (const PString &text)
static PString	CreateTag (const PString &text, const PString &data)
static PString	EscapeSpecialChars (const PString &string)
Protected Member Functions
void	Construct (int options, const char *noIndentElements)
Protected Attributes
PXMLElement *	rootElement
PMutex	rootMutex
bool	loadFromFile
PFilePath	loadFilename
PString	version
PString	encoding
StandAloneType	m_standAlone
PTimer	autoLoadTimer
PURL	autoloadURL
PTimeInterval	autoLoadWaitTime
PMutex	autoLoadMutex
PString	autoLoadError
PStringStream	m_errorString
unsigned	m_errorLine
unsigned	m_errorColumn
PSortedStringList	noIndentElements
PString	docType
PString	m_defaultNameSpace
Classes
struct	ValidationContext
struct	ValidationInfo

---

Member Enumeration Documentation

enum PXML::ValidationOp

Enumerator:

EndOfValidationList
DocType
ElementName
RequiredAttribute
RequiredNonEmptyAttribute
RequiredAttributeWithValue
RequiredElement
Subtree
RequiredAttributeWithValueMatching
RequiredElementWithBodyMatching
OptionalElement
OptionalAttribute
OptionalNonEmptyAttribute
OptionalAttributeWithValue
OptionalAttributeWithValueMatching
OptionalElementWithBodyMatching
SetDefaultNamespace
SetNamespace
RequiredAttributeWithValueMatchingEx
OptionalAttributeWithValueMatchingEx
RequiredElementWithBodyMatchingEx
OptionalElementWithBodyMatchingEx

---

Constructor & Destructor Documentation

PXML::PXML	(	int	options = NoOptions,
		const char *	noIndentElements = NULL
	)

PXML::PXML	(	const PString &	data,
		int	options = NoOptions,
		const char *	noIndentElements = NULL
	)

PXML::PXML

(

const PXML &

xml

)

PXML::~PXML

(

)

---

Member Function Documentation

PString PXML::AsString

(

)

const

bool PXML::AutoLoadURL

(

)

void PXML::Construct	(	int	options,
		const char *	noIndentElements
	)			[protected]

static PString PXML::CreateEndTag

(

const PString &

text

)

[static]

static PString PXML::CreateStartTag

(

const PString &

text

)

[static]

static PString PXML::CreateTag	(	const PString &	text,
		const PString &	data
	)			[static]

static PString PXML::CreateTagNoData

(

const PString &

text

)

[static]

static PString PXML::EscapeSpecialChars

(

const PString &

string

)

[static]

PString PXML::GetAutoReloadStatus

(

)

[inline]

PString PXML::GetDocType

(

)

const [inline]

PCaselessString PXML::GetDocumentType

(

)

const

PXMLElement* PXML::GetElement

(

PINDEX

idx

)

const

PXMLElement* PXML::GetElement	(	const PCaselessString &	name,
		PINDEX	idx = 0
	)			const

PXMLElement* PXML::GetElement	(	const PCaselessString &	name,
		const PCaselessString &	attr,
		const PString &	attrval
	)			const

unsigned PXML::GetErrorColumn

(

)

const [inline]

unsigned PXML::GetErrorLine

(

)

const [inline]

PString PXML::GetErrorString

(

)

const [inline]

PMutex& PXML::GetMutex

(

)

[inline]

PINDEX PXML::GetNumElements

(

)

const

PXMLElement* PXML::GetRootElement

(

)

const [inline]

bool PXML::IsDirty

(

)

const

bool PXML::IsLoaded

(

)

const [inline]

PBoolean PXML::IsNoIndentElement

(

const PString &

elementName

)

const [virtual]

Reimplemented from PXMLBase.

bool PXML::Load	(	const PString &	data,
		Options	options = NoOptions
	)

bool PXML::LoadFile	(	const PFilePath &	fn,
		Options	options = NoOptions
	)

bool PXML::LoadURL	(	const PURL &	url,
		const PTimeInterval &	timeout,
		Options	options = NoOptions
	)

bool PXML::LoadURL

(

const PURL &

url

)

virtual void PXML::OnAutoLoad

(

PBoolean

ok

)

[virtual]

virtual void PXML::OnLoaded

(

)

[inline, virtual]

PXML::PDECLARE_NOTIFIER	(	PThread	,
		PXML	,
		AutoReloadThread
	)

PXML::PDECLARE_NOTIFIER	(	PTimer	,
		PXML	,
		AutoReloadTimeout
	)

void PXML::PrintOn

(

ostream &

strm

)

const [virtual]

Output the contents of the object to the stream.

The exact output is dependent on the exact semantics of the descendent class. This is primarily used by the standard operator<< function.

The default behaviour is to print the class name.

Reimplemented from PObject.

void PXML::ReadFrom

(

istream &

strm

)

[virtual]

Input the contents of the object from the stream.

The exact input is dependent on the exact semantics of the descendent class. This is primarily used by the standard operator>> function.

The default behaviour is to do nothing.

Reimplemented from PObject.

void PXML::RemoveAll

(

)

bool PXML::RemoveElement

(

PINDEX

idx

)

bool PXML::Save	(	PString &	data,
		Options	options = NoOptions
	)

bool PXML::Save

(

Options

options = NoOptions

)

bool PXML::SaveFile	(	const PFilePath &	fn,
		Options	options = NoOptions
	)

void PXML::SetDocType

(

const PString &

v

)

[inline]

PXMLElement* PXML::SetRootElement

(

const PString &

documentType

)

PXMLElement* PXML::SetRootElement

(

PXMLElement *

p

)

bool PXML::StartAutoReloadURL	(	const PURL &	url,
		const PTimeInterval &	timeout,
		const PTimeInterval &	refreshTime,
		Options	options = NoOptions
	)

bool PXML::StopAutoReloadURL

(

)

bool PXML::Validate

(

const ValidationInfo *

validator

)

bool PXML::ValidateElement	(	ValidationContext &	context,
		PXMLElement *	element,
		const ValidationInfo *	elements
	)

bool PXML::ValidateElements	(	ValidationContext &	context,
		PXMLElement *	baseElement,
		const ValidationInfo *	elements
	)

---

Member Data Documentation

PString PXML::autoLoadError [protected]

PMutex PXML::autoLoadMutex [protected]

PTimer PXML::autoLoadTimer [protected]

PURL PXML::autoloadURL [protected]

PTimeInterval PXML::autoLoadWaitTime [protected]

PString PXML::docType [protected]

PString PXML::encoding [protected]

PFilePath PXML::loadFilename [protected]

bool PXML::loadFromFile [protected]

PString PXML::m_defaultNameSpace [protected]

unsigned PXML::m_errorColumn [protected]

unsigned PXML::m_errorLine [protected]

PStringStream PXML::m_errorString [protected]

StandAloneType PXML::m_standAlone [protected]

PSortedStringList PXML::noIndentElements [protected]

PXMLElement* PXML::rootElement [protected]

PMutex PXML::rootMutex [protected]

PString PXML::version [protected]

---

The documentation for this class was generated from the following file:

• pxml.h

---
