PUDPSocket Class Reference

A socket channel that uses the UDP transport on the Internet Protocol. More...

#include <udpsock.h>

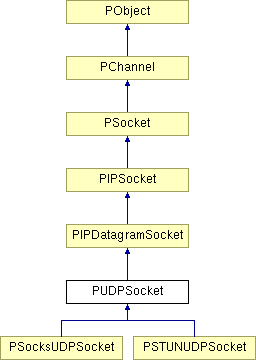

Inheritance diagram for PUDPSocket:

List of all members.

New functions for class
void	SetSendAddress (const Address &address, WORD port)
	Set the address to use for connectionless Write() or Windows QoS.
void	GetSendAddress (Address &address, WORD &port)
	Get the address to use for connectionless Write().
virtual PBoolean	ModifyQoSSpec (PQoS *qos)
	Change the QOS spec for the socket and try to apply the changes.
virtual PQoS &	GetQoSSpec ()
	Get the QOS object for the socket.
void	GetLastReceiveAddress (Address &address, WORD &port)
	Get the address of the sender in the last connectionless Read().
virtual PBoolean	IsAlternateAddress (const Address &address, WORD port)
	CallBack to check if the detected address of the connectionless Read() is an alternate address.
virtual PBoolean	DoPseudoRead (int &selectStatus)
	PseudoRead This indicates to the upper system that reading on this socket will be a pseudo read when means there is data available that did not orginate from the physical socket but was programmically injected.
static PBoolean	SupportQoS (const PIPSocket::Address &address)
	Check to See if the socket will support QoS on the given local Address.
static void	EnableGQoS ()
	Manually Enable GQoS Support.
Public Member Functions
Construction
	PUDPSocket (WORD port=0, int iAddressFamily=AF_INET)
	Create a UDP socket.
	PUDPSocket (PQoS *qos, WORD port=0, int iAddressFamily=AF_INET)
	PUDPSocket (const PString &service, PQoS *qos=NULL, int iAddressFamily=AF_INET)
	PUDPSocket (const PString &address, WORD port)
	PUDPSocket (const PString &address, const PString &service)
Overrides from class PSocket
PBoolean	Read (void *buf, PINDEX len)
	Override of PChannel functions to allow connectionless reads.
PBoolean	Write (const void *buf, PINDEX len)
	Override of PChannel functions to allow connectionless writes.
PBoolean	Connect (const PString &address)
	Override of PSocket functions to allow connectionless writes.
Protected Member Functions
virtual PBoolean	OpenSocket ()
virtual PBoolean	OpenSocket (int ipAdressFamily)
	Open an IPv4 or IPv6 socket.
virtual PBoolean	OpenSocketGQOS (int af, int type, int proto)
virtual PBoolean	ApplyQoS ()
virtual const char *	GetProtocolName () const
	This function returns the protocol name for the socket type.
Protected Attributes
Address	sendAddress
WORD	sendPort
Address	lastReceiveAddress
WORD	lastReceivePort
PQoS	qosSpec

---

Detailed Description

A socket channel that uses the UDP transport on the Internet Protocol.

---

Constructor & Destructor Documentation

PUDPSocket::PUDPSocket	(	WORD	port = 0,
		int	iAddressFamily = AF_INET
	)

Create a UDP socket.

If a remote machine address or a "listening" socket is specified then the channel is also opened.

Parameters:

port	Port number to use for the connection.
iAddressFamily	Family

PUDPSocket::PUDPSocket	(	PQoS *	qos,
		WORD	port = 0,
		int	iAddressFamily = AF_INET
	)

Parameters:

qos	Pointer to a QOS structure for the connection
port	Port number to use for the connection.
iAddressFamily	Family

PUDPSocket::PUDPSocket	(	const PString &	service,
		PQoS *	qos = NULL,
		int	iAddressFamily = AF_INET
	)

Parameters:

service	Service name to use for the connection.
qos	Pointer to a QOS structure for the connection
iAddressFamily	Family

PUDPSocket::PUDPSocket	(	const PString &	address,
		WORD	port
	)

Parameters:

address	Address of remote machine to connect to.
port	Port number to use for the connection.

PUDPSocket::PUDPSocket	(	const PString &	address,
		const PString &	service
	)

Parameters:

address	Address of remote machine to connect to.
service	Service name to use for the connection.

---

Member Function Documentation

virtual PBoolean PUDPSocket::ApplyQoS

(

)

[protected, virtual]

PBoolean PUDPSocket::Connect

(

const PString &

address

)

[virtual]

Override of PSocket functions to allow connectionless writes.

Parameters:

address

Address of remote machine to connect to.

Reimplemented from PIPSocket.

Reimplemented in PSocksUDPSocket.

virtual PBoolean PUDPSocket::DoPseudoRead

(

int &

selectStatus

)

[virtual]

PseudoRead This indicates to the upper system that reading on this socket will be a pseudo read when means there is data available that did not orginate from the physical socket but was programmically injected.

static void PUDPSocket::EnableGQoS

(

)

[static]

Manually Enable GQoS Support.

void PUDPSocket::GetLastReceiveAddress	(	Address &	address,
		WORD &	port
	)

Get the address of the sender in the last connectionless Read().

Note that thsi only applies to the Read() and not the ReadFrom() function.

Parameters:

address	IP address to send packets.
port	Port to send packets.

virtual const char* PUDPSocket::GetProtocolName

(

)

const [protected, virtual]

This function returns the protocol name for the socket type.

Implements PSocket.

virtual PQoS& PUDPSocket::GetQoSSpec

(

)

[virtual]

Get the QOS object for the socket.

void PUDPSocket::GetSendAddress	(	Address &	address,
		WORD &	port
	)

Get the address to use for connectionless Write().

Parameters:

address	IP address to send packets.
port	Port to send packets.

virtual PBoolean PUDPSocket::IsAlternateAddress	(	const Address &	address,
		WORD	port
	)			[virtual]

CallBack to check if the detected address of the connectionless Read() is an alternate address.

Use this to switch the target to send and receive the connectionless read/write.

Parameters:

address	Detected IP Address.
port	Detected Port.

virtual PBoolean PUDPSocket::ModifyQoSSpec

(

PQoS *

qos

)

[virtual]

Change the QOS spec for the socket and try to apply the changes.

Parameters:

qos	QoS specification to use

virtual PBoolean PUDPSocket::OpenSocket

(

int

ipAdressFamily

)

[protected, virtual]

Open an IPv4 or IPv6 socket.

Implements PIPSocket.

virtual PBoolean PUDPSocket::OpenSocket

(

)

[protected, virtual]

Implements PSocket.

virtual PBoolean PUDPSocket::OpenSocketGQOS	(	int	af,
		int	type,
		int	proto
	)			[protected, virtual]

PBoolean PUDPSocket::Read	(	void *	buf,
		PINDEX	len
	)			[virtual]

Override of PChannel functions to allow connectionless reads.

Parameters:

buf	Pointer to a block of memory to read.
len	Number of bytes to read.

Reimplemented from PSocket.

void PUDPSocket::SetSendAddress	(	const Address &	address,
		WORD	port
	)

Set the address to use for connectionless Write() or Windows QoS.

Parameters:

address	IP address to send packets.
port	Port to send packets.

static PBoolean PUDPSocket::SupportQoS

(

const PIPSocket::Address &

address

)

[static]

Check to See if the socket will support QoS on the given local Address.

PBoolean PUDPSocket::Write	(	const void *	buf,
		PINDEX	len
	)			[virtual]

Override of PChannel functions to allow connectionless writes.

Parameters:

buf	Pointer to a block of memory to write.
len	Number of bytes to write.

Reimplemented from PChannel.

---

Member Data Documentation

Address PUDPSocket::lastReceiveAddress [protected]

WORD PUDPSocket::lastReceivePort [protected]

PQoS PUDPSocket::qosSpec [protected]

Address PUDPSocket::sendAddress [protected]

WORD PUDPSocket::sendPort [protected]

---

The documentation for this class was generated from the following file:

• udpsock.h

---
