PASNObject Class Reference

This class defines the common behviour of all ASN objects. More...

#include <pasn.h>

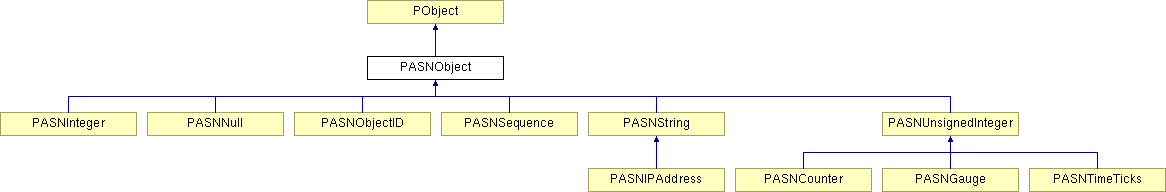

Inheritance diagram for PASNObject:


Public Types
	Integer
	ASN Integer object.
	String
	ASN Octet String object.
	ObjectID
	ASN Object ID object.
	Sequence
	ASN Sequence object.
	Choice
	ASN Sequence with discriminator.
	IPAddress
	ASN IPAddress object.
	Counter
	ASN Counter object.
	Gauge
	ASN Gauge object.
	TimeTicks
	ASN TimeTicks object.
	Opaque
	ASN Opaque object.
	NsapAddress
	ASN NsapAddress.
	Counter64
	ASN Counter64.
	UInteger32
	ASN Unsigned integer 32.
	Null
	ASN Null.
	Unknown
	unknown ASN object type
	ASNTypeMax
	maximum of number of ASN object types
enum	ASNType { Integer, String, ObjectID, Sequence, Choice, IPAddress, Counter, Gauge, TimeTicks, Opaque, NsapAddress, Counter64, UInteger32, Null, Unknown, ASNTypeMax }
	Value returned by the GetType() function to indicate the type of an ASN object. More...
Public Member Functions
virtual ASNType	GetType () const
	Return a value of type enum ASNType which indicates the type of the object.
int	GetChoice () const
	Return the descriminator for Choice sequences.
virtual PString	GetTypeAsString () const
	Return a string giving the type of the object.
virtual PASNInt	GetInteger () const
	Return the value of the ASN object as a PASNInt.
virtual PASNUnsigned	GetUnsigned () const
	Return the value of the object as a PASNUnsigned.
virtual PString	GetString () const
	Return the value of the object as a PString.
virtual const PASNSequence &	GetSequence () const
	Return the value of the object as a PString.
virtual PIPSocket::Address	GetIPAddress () const
	Return the value of the object as an IPAddress.
virtual void	PrintOn (ostream &strm) const
	Virtual functions used by the PObject::operator<< function to print the value of the object.
virtual void	Encode (PBYTEArray &buffer)
	Virtual function used to encode the object into ASN format.
virtual WORD	GetEncodedLength ()
	Virtual function used to get the length of object when encoded into ASN format.
virtual PObject *	Clone () const
	Virtual function used to duplicate objects.
Static Public Member Functions
static void	EncodeASNLength (PBYTEArray &buffer, WORD length)
	Encode an ASN length value.
static WORD	GetASNLengthLength (WORD length)
	Return the length of an encoded ASN length value.
static PBoolean	DecodeASNLength (const PBYTEArray &buffer, PINDEX &ptr, WORD &len)
	Decode an ASN length in the buffer at the given ptr.
static void	EncodeASNSequenceStart (PBYTEArray &buffer, BYTE type, WORD length)
	Encode a sequence header into the buffer at the specified offset.
static WORD	GetASNSequenceStartLength (WORD length)
	Return the encoded length of a sequence if it has the specified length.
static void	EncodeASNHeader (PBYTEArray &buffer, PASNObject::ASNType type, WORD length)
	Encode an ASN object header into the buffer.
static WORD	GetASNHeaderLength (WORD length)
	Return the length of an ASN object header if the object is the specified length.
static void	EncodeASNInteger (PBYTEArray &buffer, PASNInt data, PASNObject::ASNType type)
static void	EncodeASNUnsigned (PBYTEArray &buffer, PASNUnsigned data, PASNObject::ASNType type)
static WORD	GetASNIntegerLength (PASNInt data)
static WORD	GetASNUnsignedLength (PASNUnsigned data)
static PBoolean	DecodeASNInteger (const PBYTEArray &buffer, PINDEX &ptr, PASNInt &value, ASNType type=Integer)
static PBoolean	DecodeASNUnsigned (const PBYTEArray &buffer, PINDEX &ptr, PASNUnsigned &value, ASNType type=TimeTicks)
Protected Member Functions
	PASNObject ()
	Create an empty ASN object.
Static Protected Attributes
static BYTE	ASNTypeToType [ASNTypeMax]
	Table to map enum ASNType values to ASN identifiers.

Detailed Description

This class defines the common behviour of all ASN objects.

It also contains several functions which are used for encoding common ASN primitives.

This class will never be instantiated directly. See the PASNInteger, PASNSequence, PASNString and PASNObjectID classes for examples of ASN objects that can be created.

Only descendants of this class can be put into the ASNSequence class.

Member Enumeration Documentation

enum PASNObject::ASNType

Value returned by the GetType() function to indicate the type of an ASN object.

Enumerator:

Integer	ASN Integer object.
String	ASN Octet String object.
ObjectID	ASN Object ID object.
Sequence	ASN Sequence object.
Choice	ASN Sequence with discriminator.
IPAddress	ASN IPAddress object.
Counter	ASN Counter object.
Gauge	ASN Gauge object.
TimeTicks	ASN TimeTicks object.
Opaque	ASN Opaque object.
NsapAddress	ASN NsapAddress.
Counter64	ASN Counter64.
UInteger32	ASN Unsigned integer 32.
Null	ASN Null.
Unknown	unknown ASN object type
ASNTypeMax	maximum of number of ASN object types

Constructor & Destructor Documentation

PASNObject::PASNObject ( ) [protected]

Create an empty ASN object.

Used only by descendant constructors

Member Function Documentation

virtual PObject* PASNObject::Clone ( ) const [virtual]

Virtual function used to duplicate objects.

Reimplemented from PObject.

Reimplemented in PASNInteger, PASNString, PASNIPAddress, PASNTimeTicks, PASNCounter, PASNGauge, PASNObjectID, and PASNNull.

static PBoolean PASNObject::DecodeASNInteger	(	const PBYTEArray &	buffer,
		PINDEX &	ptr,
		PASNInt &	value,
		ASNType	type = `Integer`
	)			`[static]`

Parameters:

buffer	buffer to decode from
ptr	ptr to data in buffer
value	returned value
type	actual integer type

static PBoolean PASNObject::DecodeASNLength	(	const PBYTEArray &	buffer,
		PINDEX &	ptr,
		WORD &	len
	)			`[static]`

Decode an ASN length in the buffer at the given ptr.

The ptr is moved to the byte after the end of the encoded length.

Parameters:

buffer	buffer to decode data from
ptr	ptr to decode from
len	returned length

static PBoolean PASNObject::DecodeASNUnsigned	(	const PBYTEArray &	buffer,
		PINDEX &	ptr,
		PASNUnsigned &	value,
		ASNType	type = `TimeTicks`
	)			`[static]`

Parameters:

buffer	buffer to decode from
ptr	ptr to data in buffer
value	returned value
type	actual integer type

virtual void PASNObject::Encode ( PBYTEArray & buffer ) [virtual]

Virtual function used to encode the object into ASN format.

Parameters:

buffer

buffer to encode into

Reimplemented in PASNInteger, PASNString, PASNIPAddress, PASNTimeTicks, PASNCounter, PASNGauge, PASNObjectID, PASNNull, and PASNSequence.

static void PASNObject::EncodeASNHeader	(	PBYTEArray &	buffer,
		PASNObject::ASNType	type,
		WORD	length
	)			`[static]`

Encode an ASN object header into the buffer.

Parameters:

buffer	buffer to encode into
type	ASN type of the object
length	length of the object

static void PASNObject::EncodeASNInteger	(	PBYTEArray &	buffer,
		PASNInt	data,
		PASNObject::ASNType	type
	)			`[static]`

Parameters:

buffer	buffer to encode into
data	value to encode
type	actual integer type

static void PASNObject::EncodeASNLength	(	PBYTEArray &	buffer,
		WORD	length
	)			`[static]`

Encode an ASN length value.

Parameters:

buffer	buffer to encode into
length	ASN length to encode

static void PASNObject::EncodeASNSequenceStart	(	PBYTEArray &	buffer,
		BYTE	type,
		WORD	length
	)			`[static]`

Encode a sequence header into the buffer at the specified offset.

Parameters:

buffer	buffer to encode data into
type	sequence type
length	length of sequence data

static void PASNObject::EncodeASNUnsigned	(	PBYTEArray &	buffer,
		PASNUnsigned	data,
		PASNObject::ASNType	type
	)			`[static]`

Parameters:

buffer	buffer to encode into
data	value to encode
type	actual integer type

static WORD PASNObject::GetASNHeaderLength ( WORD length ) [static]

Return the length of an ASN object header if the object is the specified length.

Parameters:

length

length of object

static WORD PASNObject::GetASNIntegerLength ( PASNInt data ) [static]

Parameters:

data

value to get length of

static WORD PASNObject::GetASNLengthLength ( WORD length ) [static]

Return the length of an encoded ASN length value.

Parameters:

length

length to find length of

static WORD PASNObject::GetASNSequenceStartLength ( WORD length ) [static]

Return the encoded length of a sequence if it has the specified length.

Parameters:

length

length of sequence data

static WORD PASNObject::GetASNUnsignedLength ( PASNUnsigned data ) [static]

Parameters:

data

value to get length of

int PASNObject::GetChoice ( ) const

Return the descriminator for Choice sequences.

Reimplemented in PASNSequence.

virtual WORD PASNObject::GetEncodedLength ( ) [virtual]

Virtual function used to get the length of object when encoded into ASN format.

Reimplemented in PASNInteger, PASNString, PASNUnsignedInteger, PASNObjectID, PASNNull, and PASNSequence.

virtual PASNInt PASNObject::GetInteger ( ) const [virtual]

Return the value of the ASN object as a PASNInt.

This function will assert if the object is not a descendant of PASNInteger.

Reimplemented in PASNInteger.

virtual PIPSocket::Address PASNObject::GetIPAddress ( ) const [virtual]

Return the value of the object as an IPAddress.

This function will assert if the object is not a descendant of PASNIPAddress.

Reimplemented in PASNIPAddress.

virtual const PASNSequence& PASNObject::GetSequence ( ) const [virtual]

Return the value of the object as a PString.

This function will assert if the object is not a descendant of PASNSequence.

Reimplemented in PASNSequence.

virtual PString PASNObject::GetString ( ) const [virtual]

Return the value of the object as a PString.

This function can be use for all ASN object types

Reimplemented in PASNInteger, PASNString, PASNIPAddress, PASNUnsignedInteger, PASNObjectID, and PASNNull.

virtual ASNType PASNObject::GetType ( ) const [virtual]

Return a value of type enum ASNType which indicates the type of the object.

Reimplemented in PASNInteger, PASNString, PASNIPAddress, PASNTimeTicks, PASNCounter, PASNGauge, PASNObjectID, PASNNull, and PASNSequence.

virtual PString PASNObject::GetTypeAsString ( ) const [virtual]

Return a string giving the type of the object.

Reimplemented in PASNInteger, PASNString, PASNIPAddress, PASNTimeTicks, PASNCounter, PASNGauge, PASNObjectID, PASNNull, and PASNSequence.

virtual PASNUnsigned PASNObject::GetUnsigned ( ) const [virtual]

Return the value of the object as a PASNUnsigned.

This function will assert if the object is not a descendant of PASNTimeTicks or

PASNCounter.

Reimplemented in PASNUnsignedInteger.

virtual void PASNObject::PrintOn ( ostream & strm ) const [virtual]

Virtual functions used by the PObject::operator<< function to print the value of the object.

Parameters:

strm

stream to print on

Reimplemented from PObject.

Reimplemented in PASNInteger, PASNString, PASNUnsignedInteger, PASNObjectID, PASNNull, and PASNSequence.

Member Data Documentation

BYTE PASNObject::ASNTypeToType[ASNTypeMax] [static, protected]

Table to map enum ASNType values to ASN identifiers.

The documentation for this class was generated from the following file:

pasn.h

Generated on Fri Oct 14 01:44:11 2011 for PTLib by

1.4.7
