PICMPSocket Class Reference

Create a socket channel that uses allows ICMP commands in the Internal Protocol. More...

#include <icmpsock.h>

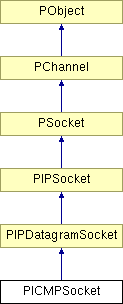

Inheritance diagram for PICMPSocket:

List of all members.

Public Types
	PingSuccess
	NetworkUnreachable
	HostUnreachable
	PacketTooBig
	RequestTimedOut
	BadRoute
	TtlExpiredTransmit
	TtlExpiredReassembly
	SourceQuench
	MtuChange
	GeneralError
	NumStatuses
Status & Information
enum	PingStatus {   PingSuccess, NetworkUnreachable, HostUnreachable, PacketTooBig,   RequestTimedOut, BadRoute, TtlExpiredTransmit, TtlExpiredReassembly,   SourceQuench, MtuChange, GeneralError, NumStatuses }
	Results of ICMP operation. More...
Public Member Functions
Construction
	PICMPSocket ()
	Create a TCP/IP protocol socket channel.
Ping
PBoolean	Ping (const PString &host)
	Send an ECHO_REPLY message to the specified host and wait for a reply to be sent back.
PBoolean	Ping (const PString &host, PingInfo &info)
	Send an ECHO_REPLY message to the specified host and wait for a reply to be sent back.
Protected Member Functions
const char *	GetProtocolName () const
	This function returns the protocol name for the socket type.
virtual PBoolean	OpenSocket ()
virtual PBoolean	OpenSocket (int ipAdressFamily)
	Open an IPv4 or IPv6 socket.
PBoolean	WritePing (const PString &host, PingInfo &info)
PBoolean	ReadPing (PingInfo &info)
Classes
class	PingInfo
	Information used by and obtained by the ping operation. More...

---

Detailed Description

Create a socket channel that uses allows ICMP commands in the Internal Protocol.

---

Member Enumeration Documentation

enum PICMPSocket::PingStatus

Results of ICMP operation.

Enumerator:

PingSuccess
NetworkUnreachable
HostUnreachable
PacketTooBig
RequestTimedOut
BadRoute
TtlExpiredTransmit
TtlExpiredReassembly
SourceQuench
MtuChange
GeneralError
NumStatuses

---

Constructor & Destructor Documentation

PICMPSocket::PICMPSocket

(

)

Create a TCP/IP protocol socket channel.

If a remote machine address or a "listening" socket is specified then the channel is also opened.

---

Member Function Documentation

const char* PICMPSocket::GetProtocolName

(

)

const [protected, virtual]

This function returns the protocol name for the socket type.

Implements PSocket.

virtual PBoolean PICMPSocket::OpenSocket

(

int

ipAdressFamily

)

[protected, virtual]

Open an IPv4 or IPv6 socket.

Implements PIPSocket.

virtual PBoolean PICMPSocket::OpenSocket

(

)

[protected, virtual]

Implements PSocket.

PBoolean PICMPSocket::Ping	(	const PString &	host,
		PingInfo &	info
	)

Send an ECHO_REPLY message to the specified host and wait for a reply to be sent back.

Returns:

false if host not found or no response.

Parameters:

host	Host to send ping.
info	Information on the ping and reply.

PBoolean PICMPSocket::Ping

(

const PString &

host

)

Send an ECHO_REPLY message to the specified host and wait for a reply to be sent back.

Returns:

false if host not found or no response.

Parameters:

host	Host to send ping.

PBoolean PICMPSocket::ReadPing

(

PingInfo &

info

)

[protected]

PBoolean PICMPSocket::WritePing	(	const PString &	host,
		PingInfo &	info
	)			[protected]

---

The documentation for this class was generated from the following file:

• icmpsock.h

---
