PUDPSocket Class Reference

#include <udpsock.h>

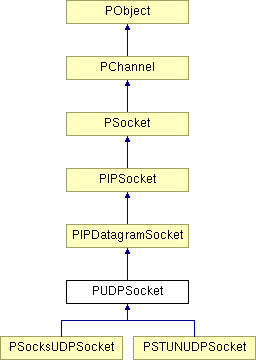

Inheritance diagram for PUDPSocket:

List of all members.

New functions for class
void	SetSendAddress (const Address &address, WORD port)
void	GetSendAddress (Address &address, WORD &port)
virtual PBoolean	ModifyQoSSpec (PQoS *qos)
void	GetLastReceiveAddress (Address &address, WORD &port)
static PBoolean	SupportQoS (const PIPSocket::Address &address)
static void	EnableGQoS ()
Public Member Functions
Construction
	PUDPSocket (WORD port=0, int iAddressFamily=AF_INET)
	PUDPSocket (PQoS *qos, WORD port=0, int iAddressFamily=AF_INET)
	PUDPSocket (const PString &service, PQoS *qos=NULL, int iAddressFamily=AF_INET)
	PUDPSocket (const PString &address, WORD port)
	PUDPSocket (const PString &address, const PString &service)
Overrides from class PSocket
PBoolean	Read (void *buf, PINDEX len)
PBoolean	Write (const void *buf, PINDEX len)
PBoolean	Connect (const PString &address)
Protected Member Functions
virtual PBoolean	OpenSocket ()
virtual PBoolean	OpenSocket (int ipAdressFamily)
virtual PBoolean	OpenSocketGQOS (int af, int type, int proto)
virtual PBoolean	ApplyQoS ()
virtual const char *	GetProtocolName () const
Protected Attributes
Address	sendAddress
WORD	sendPort
Address	lastReceiveAddress
WORD	lastReceivePort
PQoS	qosSpec

---

Detailed Description

A socket channel that uses the UDP transport on the Internet Protocol.

---

Constructor & Destructor Documentation

PUDPSocket::PUDPSocket	(	WORD	port = 0,
		int	iAddressFamily = AF_INET
	)

Create a UDP socket. If a remote machine address or a "listening" socket is specified then the channel is also opened.

Parameters:

port	Port number to use for the connection.
iAddressFamily	Family

PUDPSocket::PUDPSocket	(	PQoS *	qos,
		WORD	port = 0,
		int	iAddressFamily = AF_INET
	)

Parameters:

qos	Pointer to a QOS structure for the connection
port	Port number to use for the connection.
iAddressFamily	Family

PUDPSocket::PUDPSocket	(	const PString &	service,
		PQoS *	qos = NULL,
		int	iAddressFamily = AF_INET
	)

Parameters:

service	Service name to use for the connection.
qos	Pointer to a QOS structure for the connection
iAddressFamily	Family

PUDPSocket::PUDPSocket	(	const PString &	address,
		WORD	port
	)

Parameters:

address	Address of remote machine to connect to.
port	Port number to use for the connection.

PUDPSocket::PUDPSocket	(	const PString &	address,
		const PString &	service
	)

Parameters:

address	Address of remote machine to connect to.
service	Service name to use for the connection.

---

Member Function Documentation

virtual PBoolean PUDPSocket::ApplyQoS

(

)

[protected, virtual]

PBoolean PUDPSocket::Connect

(

const PString &

address

)

[virtual]

Override of PSocket functions to allow connectionless writes

Parameters:

address

Address of remote machine to connect to.

Reimplemented from PIPSocket.

Reimplemented in PSocksUDPSocket.

static void PUDPSocket::EnableGQoS

(

)

[static]

Manually Enable GQoS Support

void PUDPSocket::GetLastReceiveAddress	(	Address &	address,
		WORD &	port
	)

Get the address of the sender in the last connectionless Read(). Note that thsi only applies to the Read() and not the ReadFrom() function.

Parameters:

address	IP address to send packets.
port	Port to send packets.

virtual const char* PUDPSocket::GetProtocolName

(

)

const [protected, virtual]

This function returns the protocol name for the socket type.

Implements PSocket.

void PUDPSocket::GetSendAddress	(	Address &	address,
		WORD &	port
	)

Get the address to use for connectionless Write().

Parameters:

address	IP address to send packets.
port	Port to send packets.

virtual PBoolean PUDPSocket::ModifyQoSSpec

(

PQoS *

qos

)

[virtual]

Change the QOS spec for the socket and try to apply the changes

Parameters:

qos	QoS specification to use

virtual PBoolean PUDPSocket::OpenSocket

(

int

ipAdressFamily

)

[protected, virtual]

Open an IPv4 or IPv6 socket

Implements PIPSocket.

virtual PBoolean PUDPSocket::OpenSocket

(

)

[protected, virtual]

Implements PSocket.

virtual PBoolean PUDPSocket::OpenSocketGQOS	(	int	af,
		int	type,
		int	proto
	)			[protected, virtual]

PBoolean PUDPSocket::Read	(	void *	buf,
		PINDEX	len
	)			[virtual]

Override of PChannel functions to allow connectionless reads

Parameters:

buf	Pointer to a block of memory to read.
len	Number of bytes to read.

Reimplemented from PSocket.

void PUDPSocket::SetSendAddress	(	const Address &	address,
		WORD	port
	)

Set the address to use for connectionless Write() or Windows QoS

Parameters:

address	IP address to send packets.
port	Port to send packets.

static PBoolean PUDPSocket::SupportQoS

(

const PIPSocket::Address &

address

)

[static]

Check to See if the socket will support QoS on the given local Address

PBoolean PUDPSocket::Write	(	const void *	buf,
		PINDEX	len
	)			[virtual]

Override of PChannel functions to allow connectionless writes

Parameters:

buf	Pointer to a block of memory to write.
len	Number of bytes to write.

Reimplemented from PChannel.

---

Member Data Documentation

Address PUDPSocket::lastReceiveAddress [protected]

WORD PUDPSocket::lastReceivePort [protected]

PQoS PUDPSocket::qosSpec [protected]

Address PUDPSocket::sendAddress [protected]

WORD PUDPSocket::sendPort [protected]

---

The documentation for this class was generated from the following file:

• udpsock.h

---
