PSMTPServer Class Reference

#include <inetmail.h>

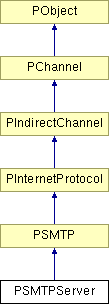

Inheritance diagram for PSMTPServer:


Public Types
	LocalDomain
	User may be on local machine, do LookUpName().
	WillForward
	User may be forwarded to another SMTP host.
	CannotForward
	User cannot be forwarded.
	ValidUser
	User name was valid and unique.
	AmbiguousUser
	User name was valid but ambiguous.
	UnknownUser
	User name was invalid.
	LookUpError
	Some other error occurred in look up.
enum	ForwardResult { LocalDomain, WillForward, CannotForward }
enum	LookUpResult { ValidUser, AmbiguousUser, UnknownUser, LookUpError }
Public Member Functions
	PSMTPServer ()
PBoolean	ProcessCommand ()
void	ServerReset ()
virtual ForwardResult	ForwardDomain (PCaselessString &userDomain, PCaselessString &forwardDomainList)
virtual LookUpResult	LookUpName (const PCaselessString &name, PString &expandedName)
virtual PBoolean	HandleMessage (PCharArray &buffer, PBoolean starting, PBoolean completed)
Protected Types
	WasMAIL
	WasSEND
	WasSAML
	WasSOML
enum	{ WasMAIL, WasSEND, WasSAML, WasSOML }
Protected Member Functions
PBoolean	OnOpen ()
virtual void	OnHELO (const PCaselessString &remoteHost)
virtual void	OnEHLO (const PCaselessString &remoteHost)
virtual void	OnQUIT ()
virtual void	OnHELP ()
virtual void	OnNOOP ()
virtual void	OnTURN ()
virtual void	OnRSET ()
virtual void	OnVRFY (const PCaselessString &name)
virtual void	OnEXPN (const PCaselessString &name)
virtual void	OnRCPT (const PCaselessString &recipient)
virtual void	OnMAIL (const PCaselessString &sender)
virtual void	OnSEND (const PCaselessString &sender)
virtual void	OnSAML (const PCaselessString &sender)
virtual void	OnSOML (const PCaselessString &sender)
virtual void	OnDATA ()
virtual PBoolean	OnUnknown (const PCaselessString &command)
virtual void	OnSendMail (const PCaselessString &sender)
virtual PBoolean	OnTextData (PCharArray &buffer, PBoolean &completed)
virtual PBoolean	OnMIMEData (PCharArray &buffer, PBoolean &completed)
Protected Attributes
PBoolean	extendedHello
PBoolean	eightBitMIME
PString	fromAddress
PString	fromPath
PStringList	toNames
PStringList	toDomains
PINDEX	messageBufferSize
enum PSMTPServer:: { ... }	sendCommand
StuffState	endMIMEDetectState

Detailed Description

A TCP/IP socket for the Simple Mail Transfer Protocol.

When acting as a client, the procedure is to make the connection to a remote server, then to send a message using the following procedure:


      PSMTPSocket mail("mailserver");
      if (mail.IsOpen()) {
        mail.BeginMessage("Me@here.com.au", "Fred@somwhere.com");
        mail.Write(myMessage);
        if (!mail.EndMessage())
          PError << "Mail send failed." << endl;
      }
      else
         PError << "Mail conection failed." << endl;

    When acting as a server, a descendant class would be created to override
    at least the LookUpName() and HandleMessage() functions.
    Other functions may be overridden for further enhancement to the sockets
    capabilities, but these two will give a basic SMTP server functionality.

    The server socket thread would continuously call the
    ProcessMessage() function until it returns PFalse. This will then
    call the appropriate virtual function on parsing the SMTP protocol.

Member Enumeration Documentation

anonymous enum [protected]

Enumerator:

WasMAIL
WasSEND
WasSAML
WasSOML

enum PSMTPServer::ForwardResult

Enumerator:

LocalDomain	User may be on local machine, do LookUpName().
WillForward	User may be forwarded to another SMTP host.
CannotForward	User cannot be forwarded.

enum PSMTPServer::LookUpResult

Enumerator:

ValidUser	User name was valid and unique.
AmbiguousUser	User name was valid but ambiguous.
UnknownUser	User name was invalid.
LookUpError	Some other error occurred in look up.

Constructor & Destructor Documentation

PSMTPServer::PSMTPServer ( )

Create a TCP/IP SMPTP protocol socket channel. The parameterless form creates an unopened socket, the form with the address parameter makes a connection to a remote system, opening the socket. The form with the socket parameter opens the socket to an incoming call from a "listening" socket.

Member Function Documentation

virtual ForwardResult PSMTPServer::ForwardDomain	(	PCaselessString &	userDomain,
		PCaselessString &	forwardDomainList
	)			`[virtual]`

Determine if a user for this domain may be on the local system, or should be forwarded.

Returns:: Result of forward check operation.

Parameters:

userDomain	Domain for user
forwardDomainList	Domains forwarding to

virtual PBoolean PSMTPServer::HandleMessage	(	PCharArray &	buffer,
		PBoolean	starting,
		PBoolean	completed
	)			`[virtual]`

Handle a received message. The buffer parameter contains the partial or complete message received, depending on the completed parameter.

The default behaviour is to simply return PFalse;

Returns:: PTrue if message was handled, PFalse if an error occurs.

Parameters:

buffer	Buffer containing message data received.
starting	This is the first call for the message.
completed	This is the last call for the message. Indication that the entire message has been received.

virtual LookUpResult PSMTPServer::LookUpName	(	const PCaselessString &	name,
		PString &	expandedName
	)			`[virtual]`

Look up a name in the context of the SMTP server.

The default bahaviour simply returns PFalse.

Returns:: Result of name look up operation.

Parameters:

name	Name to look up.
expandedName	Expanded form of name (if found).

virtual void PSMTPServer::OnDATA ( ) [protected, virtual]

virtual void PSMTPServer::OnEHLO ( const PCaselessString & remoteHost ) [protected, virtual]

Parameters:

remoteHost

Name of remote host.

virtual void PSMTPServer::OnEXPN ( const PCaselessString & name ) [protected, virtual]

Parameters:

name

Name to expand.

virtual void PSMTPServer::OnHELO ( const PCaselessString & remoteHost ) [protected, virtual]

Parameters:

remoteHost

Name of remote host.

virtual void PSMTPServer::OnHELP ( ) [protected, virtual]

virtual void PSMTPServer::OnMAIL ( const PCaselessString & sender ) [protected, virtual]

Parameters:

sender

Name of sender.

virtual PBoolean PSMTPServer::OnMIMEData	(	PCharArray &	buffer,
		PBoolean &	completed
	)			`[protected, virtual]`

Read an eight bit MIME message that is being received by the socket. The MIME message is terminated by the CR/LF/./CR/LF sequence.

The default behaviour is to read the data into the buffer parameter until either the end of the message or when the messageBufferSize bytes have been read.

Returns:: PTrue if partial message received, PFalse if the end of the data was received.

virtual void PSMTPServer::OnNOOP ( ) [protected, virtual]

PBoolean PSMTPServer::OnOpen ( ) [protected, virtual]

This callback is executed when the Open() function is called with open channels. It may be used by descendent channels to do any handshaking required by the protocol that channel embodies.

The default behaviour is to simply return PTrue.

Returns:: Returns PTrue if the protocol handshaking is successful.

Reimplemented from PIndirectChannel.

virtual void PSMTPServer::OnQUIT ( ) [protected, virtual]

virtual void PSMTPServer::OnRCPT ( const PCaselessString & recipient ) [protected, virtual]

Parameters:

recipient

Name of recipient.

virtual void PSMTPServer::OnRSET ( ) [protected, virtual]

virtual void PSMTPServer::OnSAML ( const PCaselessString & sender ) [protected, virtual]

Parameters:

sender

Name of sender.

virtual void PSMTPServer::OnSEND ( const PCaselessString & sender ) [protected, virtual]

Parameters:

sender

Name of sender.

virtual void PSMTPServer::OnSendMail ( const PCaselessString & sender ) [protected, virtual]

Parameters:

sender

Name of sender.

virtual void PSMTPServer::OnSOML ( const PCaselessString & sender ) [protected, virtual]

Parameters:

sender

Name of sender.

virtual PBoolean PSMTPServer::OnTextData	(	PCharArray &	buffer,
		PBoolean &	completed
	)			`[protected, virtual]`

Read a standard text message that is being received by the socket. The text message is terminated by a line with a '.' character alone.

The default behaviour is to read the data into the buffer parameter until either the end of the message or when the messageBufferSize bytes have been read.
