PPOP3Server Class Reference

#include <inetmail.h>

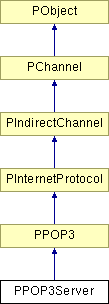

Inheritance diagram for PPOP3Server:

List of all members.

Public Member Functions
	PPOP3Server ()
PBoolean	ProcessCommand ()
virtual PBoolean	HandleOpenMailbox (const PString &username, const PString &password)
virtual void	HandleSendMessage (PINDEX messageNumber, const PString &id, PINDEX lines)
virtual void	HandleDeleteMessage (PINDEX messageNumber, const PString &id)
Protected Member Functions
PBoolean	OnOpen ()
virtual void	OnUSER (const PString &name)
virtual void	OnPASS (const PString &passwd)
virtual void	OnQUIT ()
virtual void	OnRSET ()
virtual void	OnNOOP ()
virtual void	OnSTAT ()
virtual void	OnLIST (PINDEX msg)
virtual void	OnRETR (PINDEX msg)
virtual void	OnDELE (PINDEX msg)
virtual void	OnTOP (PINDEX msg, PINDEX count)
virtual void	OnUIDL (PINDEX msg)
virtual PBoolean	OnUnknown (const PCaselessString &command)
Protected Attributes
PString	username
PUnsignedArray	messageSizes
PStringArray	messageIDs
PBYTEArray	messageDeletions

---

Detailed Description

A TCP/IP socket for the Post Office Protocol version 3.

When acting as a server, a descendant class would be created to override at least the HandleOpenMailbox(), HandleSendMessage() and HandleDeleteMessage() functions. Other functions may be overridden for further enhancement to the sockets capabilities, but these will give a basic POP3 server functionality.

The server socket thread would continuously call the ProcessMessage() function until it returns PFalse. This will then call the appropriate virtual function on parsing the POP3 protocol.

---

Constructor & Destructor Documentation

PPOP3Server::PPOP3Server

(

)

Create a TCP/IP POP3 protocol socket channel. The parameterless form creates an unopened socket, the form with the address parameter makes a connection to a remote system, opening the socket. The form with the socket parameter opens the socket to an incoming call from a "listening" socket.

---

Member Function Documentation

virtual void PPOP3Server::HandleDeleteMessage	(	PINDEX	messageNumber,
		const PString &	id
	)			[virtual]

Handle the deleting of the specified message from the mail box. This is called when the OnQUIT command is called for each message that was deleted using the DELE command.

Returns:

PTrue if successfully sent message.

Parameters:

messageNumber	Number of message to send.
id	Unique id of message to send.

virtual PBoolean PPOP3Server::HandleOpenMailbox	(	const PString &	username,
		const PString &	password
	)			[virtual]

Log the specified user into the mail system and return sizes of each message in mail box.

The user override of this function is expected to populate the protected member fields messageSizes and messageIDs.

Returns:

PTrue if user and password were valid.

Parameters:

username	User name for mail box
password	Password for user name

virtual void PPOP3Server::HandleSendMessage	(	PINDEX	messageNumber,
		const PString &	id,
		PINDEX	lines
	)			[virtual]

Handle the sending of the specified message to the remote client. The data written to the socket will automatically have the '.' character stuffing enabled.

Returns:

PTrue if successfully sent message.

Parameters:

messageNumber	Number of message to send.
id	Unique id of message to send.
lines	Nuumber of lines in body of message to send.

virtual void PPOP3Server::OnDELE

(

PINDEX

msg

)

[protected, virtual]

Parameters:

msg	Number of message.

virtual void PPOP3Server::OnLIST

(

PINDEX

msg

)

[protected, virtual]

Get the size of a message in mailbox. If msg is 0 then get sizes of all messages in mailbox.

Parameters:

msg	Number of message.

virtual void PPOP3Server::OnNOOP

(

)

[protected, virtual]

PBoolean PPOP3Server::OnOpen

(

)

[protected, virtual]

This callback is executed when the Open() function is called with open channels. It may be used by descendent channels to do any handshaking required by the protocol that channel embodies.

The default behaviour is to simply return PTrue.

Returns:

Returns PTrue if the protocol handshaking is successful.

Reimplemented from PIndirectChannel.

virtual void PPOP3Server::OnPASS

(

const PString &

passwd

)

[protected, virtual]

Parameters:

passwd

Password for account.

virtual void PPOP3Server::OnQUIT

(

)

[protected, virtual]

virtual void PPOP3Server::OnRETR

(

PINDEX

msg

)

[protected, virtual]

Parameters:

msg	Number of message.

virtual void PPOP3Server::OnRSET

(

)

[protected, virtual]

virtual void PPOP3Server::OnSTAT

(

)

[protected, virtual]

virtual void PPOP3Server::OnTOP	(	PINDEX	msg,
		PINDEX	count
	)			[protected, virtual]

Parameters:

msg	Number of message.
count	Count of messages

virtual void PPOP3Server::OnUIDL

(

PINDEX

msg

)

[protected, virtual]

Get unique ID for message in mailbox. If msg is 0 then get all IDs for all messages in mailbox.

Parameters:

msg	Number of message.

virtual PBoolean PPOP3Server::OnUnknown

(

const PCaselessString &

command

)

[protected, virtual]

Handle an unknown command.

Returns:

PTrue if more processing may be done, PFalse if the ProcessCommand() function is to return PFalse.

Parameters:

command

Complete command line received.

virtual void PPOP3Server::OnUSER

(

const PString &

name

)

[protected, virtual]

Parameters:

name	Name of user.

PBoolean PPOP3Server::ProcessCommand

(

)

Process commands, dispatching to the appropriate virtual function. This is used when the socket is acting as a server.

Returns:

PTrue if more processing may be done, PFalse if the QUIT command was received or the OnUnknown() function returns PFalse.

---

Member Data Documentation

PBYTEArray PPOP3Server::messageDeletions [protected]

PStringArray PPOP3Server::messageIDs [protected]

PUnsignedArray PPOP3Server::messageSizes [protected]

PString PPOP3Server::username [protected]

---

The documentation for this class was generated from the following file:

• inetmail.h

---
