PInterfaceMonitorClient Class Reference

#include <psockbun.h>

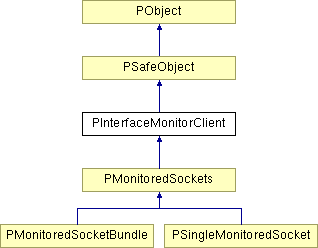

Inheritance diagram for PInterfaceMonitorClient:


Public Types
enum	{ DefaultPriority = 50 }
typedef PIPSocket::InterfaceEntry	InterfaceEntry
Public Member Functions
	PInterfaceMonitorClient (PINDEX priority=DefaultPriority)
	~PInterfaceMonitorClient ()
virtual PStringArray	GetInterfaces (bool includeLoopBack=false, const PIPSocket::Address &destination=PIPSocket::GetDefaultIpAny())
virtual PBoolean	GetInterfaceInfo (const PString &iface, InterfaceEntry &info)
PINDEX	GetPriority () const
Protected Member Functions
virtual void	OnAddInterface (const InterfaceEntry &entry)=0
	Call back function for when an interface has been added to the system.
virtual void	OnRemoveInterface (const InterfaceEntry &entry)=0
	Call back function for when an interface has been removed from the system.
virtual void	OnRemoveNatMethod (const PNatMethod *)
	Called when a NAT method is about to be destroyed.
Protected Attributes
PINDEX	priority
Friends
class	PInterfaceMonitor

Detailed Description

This is a base class for clients of the PInterfaceMonitor singleton object. The OnAddInterface() and OnRemoveInterface() functions are called in the context of a thread that is monitoring interfaces. The client object is locked for Read/Write before these functions are called.

Member Typedef Documentation

typedef PIPSocket::InterfaceEntry PInterfaceMonitorClient::InterfaceEntry

Member Enumeration Documentation

anonymous enum

Enumerator:

DefaultPriority

Constructor & Destructor Documentation

PInterfaceMonitorClient::PInterfaceMonitorClient ( PINDEX priority = DefaultPriority )

PInterfaceMonitorClient::~PInterfaceMonitorClient ( )

Member Function Documentation

virtual PStringArray PInterfaceMonitorClient::GetInterfaces	(	bool	includeLoopBack = `false`,
		const PIPSocket::Address &	destination = `PIPSocket::GetDefaultIpAny()`
	)			`[virtual]`

Get an array of all current interface descriptors, possibly including the loopback (127.0.0.1) interface. Note the names are of the form ipname, eg "10.0.1.11%3Com 3C90x Ethernet Adapter" or "192.168.0.10%eth0". If destination is not 'any' and a filter is set, filters the interface list before returning it.

Parameters:

destination

Flag for if loopback is to included in list destination

virtual PBoolean PInterfaceMonitorClient::GetInterfaceInfo	(	const PString &	iface,
		InterfaceEntry &	info
	)			`[virtual]`

Return information about an active interface given the descriptor string. Note that when searchin the descriptor may be a partial match e.g. "10.0.1.11" or "%eth0" may be used.

Parameters:

info

Interface desciptor name Information on the interface

PINDEX PInterfaceMonitorClient::GetPriority ( ) const [inline]

Returns the priority of this client. A higher value means higher priority. Higher priority clients get their callback functions called first. Clients with the same priority get called in the order of their insertion.

virtual void PInterfaceMonitorClient::OnAddInterface ( const InterfaceEntry & entry ) [protected, pure virtual]

Call back function for when an interface has been added to the system.

Implemented in PMonitoredSocketBundle.

virtual void PInterfaceMonitorClient::OnRemoveInterface ( const InterfaceEntry & entry ) [protected, pure virtual]

Call back function for when an interface has been removed from the system.

Implemented in PMonitoredSocketBundle.

virtual void PInterfaceMonitorClient::OnRemoveNatMethod ( const PNatMethod * ) [inline, protected, virtual]

Called when a NAT method is about to be destroyed.

Reimplemented in PMonitoredSockets.
