PTones Class Reference

#include <dtmf.h>

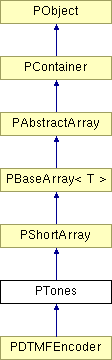

Inheritance diagram for PTones:

List of all members.

Public Types
enum	{   MaxVolume = 100, SampleRate = 8000, MaxFrequency = (SampleRate/4), MinFrequency = 30,   MinModulation = 5, SineScale = 1000 }
Public Member Functions
	PTones (unsigned masterVolume=MaxVolume)
	PTones (const PString &descriptor, unsigned masterVolume=MaxVolume)
bool	Generate (const PString &descriptor)
bool	Generate (char operation, unsigned frequency1, unsigned frequency2, unsigned milliseconds, unsigned volume=MaxVolume)
Protected Member Functions
bool	Juxtapose (unsigned frequency1, unsigned frequency2, unsigned milliseconds, unsigned volume)
bool	Modulate (unsigned frequency, unsigned modulate, unsigned milliseconds, unsigned volume)
bool	PureTone (unsigned frequency, unsigned milliseconds, unsigned volume)
bool	Silence (unsigned milliseconds)
unsigned	CalcSamples (unsigned milliseconds, unsigned frequency1, unsigned frequency2=0)
void	AddSample (int sample, unsigned volume)
Protected Attributes
unsigned	masterVolume
char	lastOperation
unsigned	lastFrequency1
unsigned	lastFrequency2
int	angle1
int	angle2

---

Detailed Description

This class can be used to generate PCM data for tones (such as telephone calling tones and DTMF) at a sample rate of 8khz.

The class contains a master volume which is applied as well as the individual tone volumes. Thus a master volume ot 50% and a tone voluem of 50% would result in a net volume of 25%.

Tones may be described via a list of descriptor strings based on an ITU-T "semi-standard", one used within various standard documents but not a standard in itself. This format was enhanced to allow for multiple tones and volume indications.

The basic format is:

[volume % ] frequency ':' cadence [ '/' ... ]

where frequency is one of frequency single frequency tone freq1 '+' freq2 two frequency juxtaposed (simple mixing) freq1 'x' freq2 first frequency modulated by second frequency freq1 '-' freq2 Alternate frequencies, generated tone is freq1 used for compatibility with tone filters and cadence is mintime ontime '-' offtime [ '-' ontime '-' offtime [ ... ] ]

and volume is a percentage of full volume

examples: 300:0.25 300Hz for minimum 250ms 1100:0.4-0.4 1100Hz with cadence 400ms on, 400ms off 900-1300:1.5 900Hz for 1.5 seconds 350+440:1 350Hz superimposed with 440Hz (US dial tone) for 1 second 425x15:0.4-0.2-0.4-2 425Hz modulated with 15Hz (Aus ring back tone) with cadence 400ms on, 200ms off, 400ms on, 2s off 425:0.4-0.1/50425:0.4-0.1 425Hz with cadence 400ms on, 100ms off, 400ms on, 100ms off, where second tone is reduced in volume by 50%

A database of tones for all contries in the worls is available at: http://www.3amsystems.com/wireline/tone-search.htm

---

Member Enumeration Documentation

anonymous enum

Enumerator:

MaxVolume
SampleRate
MaxFrequency
MinFrequency
MinModulation
SineScale

---

Constructor & Destructor Documentation

PTones::PTones

(

unsigned

masterVolume = MaxVolume

)

Create an empty tone buffer. Tones added will use the specified master volume.

Parameters:

masterVolume

Percentage volume

PTones::PTones	(	const PString &	descriptor,
		unsigned	masterVolume = MaxVolume
	)

Create a filled tone buffer using the specified descriptor.

Parameters:

descriptor	Descriptor string for tone(s). See class notes.
masterVolume	Percentage volume

---

Member Function Documentation

bool PTones::Generate

(

const PString &

descriptor

)

Generate a tone using the specified descriptor. See class general notes for format of the descriptor string.

Parameters:

descriptor

Descriptor string for tone(s). See class notes.

bool PTones::Generate	(	char	operation,
		unsigned	frequency1,
		unsigned	frequency2,
		unsigned	milliseconds,
		unsigned	volume = MaxVolume
	)

Generate a tone using the specified values. The operation parameter may be '+', 'x', '-' or ' ' for summing, modulation, pure tone or silence resepctively. The tones duration is always rounded up to the nearest even multiple of the tone cycle to assure correct zero crossing when tones change.

Parameters:

frequency1	Primary frequency for tone
frequency2	Secondary frequency for summing or modulation
milliseconds	Duration of tone
volume	Percentage volume

bool PTones::Juxtapose	(	unsigned	frequency1,
		unsigned	frequency2,
		unsigned	milliseconds,
		unsigned	volume
	)			[protected]

bool PTones::Modulate	(	unsigned	frequency,
		unsigned	modulate,
		unsigned	milliseconds,
		unsigned	volume
	)			[protected]

bool PTones::PureTone	(	unsigned	frequency,
		unsigned	milliseconds,
		unsigned	volume
	)			[protected]

bool PTones::Silence

(

unsigned

milliseconds

)

[protected]

unsigned PTones::CalcSamples	(	unsigned	milliseconds,
		unsigned	frequency1,
		unsigned	frequency2 = 0
	)			[protected]

void PTones::AddSample	(	int	sample,
		unsigned	volume
	)			[protected]

---

Member Data Documentation

unsigned PTones::masterVolume [protected]

char PTones::lastOperation [protected]

unsigned PTones::lastFrequency1 [protected]

unsigned PTones::lastFrequency2 [protected]

int PTones::angle1 [protected]

int PTones::angle2 [protected]

---

The documentation for this class was generated from the following file:

• dtmf.h

---
