PMonitoredSockets Class Reference

#include <psockbun.h>

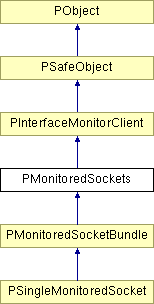

Inheritance diagram for PMonitoredSockets:


Public Member Functions
virtual PBoolean	Open (WORD port)=0
PBoolean	IsOpen () const
	Indicate if the socket(s) are open and ready for reads/writes.
virtual PBoolean	Close ()=0
	Close all socket(s).
WORD	GetPort () const
	Return the local port number being used by the socket(s).
virtual PBoolean	GetAddress (const PString &iface, PIPSocket::Address &address, WORD &port, PBoolean usingNAT) const=0
	Get the local address for the given interface.
virtual PChannel::Errors	WriteToBundle (const void *buffer, PINDEX length, const PIPSocket::Address &addr, WORD port, const PString &iface, PINDEX &lastWriteCount)=0
virtual PChannel::Errors	ReadFromBundle (void *buffer, PINDEX length, PIPSocket::Address &addr, WORD &port, PString &iface, PINDEX &lastReadCount, const PTimeInterval &timeout)=0
void	SetSTUN (PSTUNClient *stunClient)
	Set the STUN server.
PSTUNClient *	GetSTUN () const
Static Public Member Functions
static PMonitoredSockets *	Create (const PString &iface, PBoolean reuseAddr=PFalse, PSTUNClient *stunClient=NULL)
Protected Member Functions
	PMonitoredSockets (PBoolean reuseAddr, PSTUNClient *stunClient)
virtual void	OnRemoveSTUNClient (const PSTUNClient *stun)
	Called when a PSTUNClient is about to be destroyed.
PBoolean	CreateSocket (SocketInfo &info, const PIPSocket::Address &binding)
PBoolean	DestroySocket (SocketInfo &info)
PBoolean	GetSocketAddress (const SocketInfo &info, PIPSocket::Address &address, WORD &port, PBoolean usingNAT) const
PChannel::Errors	WriteToSocket (const void *buf, PINDEX len, const PIPSocket::Address &addr, WORD port, const SocketInfo &info, PINDEX &lastWriteCount)
PChannel::Errors	ReadFromSocket (SocketInfo &info, void *buf, PINDEX len, PIPSocket::Address &addr, WORD &port, PINDEX &lastReadCount, const PTimeInterval &timeout)
Protected Attributes
WORD	localPort
PBoolean	reuseAddress
PSTUNClient *	stun
bool	opened
PUDPSocket	interfaceAddedSignal
Classes
struct	SocketInfo

Detailed Description

This is a base class for UDP socket(s) that are monitored for interface changes. Two derived classes are available, one that is permanently bound to an IP address and/or interface name. The second will dynamically open/close ports as interfaces are added and removed from the system.

Constructor & Destructor Documentation

PMonitoredSockets::PMonitoredSockets	(	PBoolean	reuseAddr,
		PSTUNClient *	stunClient
	)			`[protected]`

Member Function Documentation

virtual PBoolean PMonitoredSockets::Open ( WORD port ) [pure virtual]

Open the socket(s) using the specified port. If port is zero then a system allocated port is used. In this case and when multiple interfaces are supported, all sockets use the same dynamic port value.

Returns PTrue if all sockets are opened.

Implemented in PMonitoredSocketBundle, and PSingleMonitoredSocket.

PBoolean PMonitoredSockets::IsOpen ( ) const [inline]

Indicate if the socket(s) are open and ready for reads/writes.

virtual PBoolean PMonitoredSockets::Close ( ) [pure virtual]

Close all socket(s).

Implemented in PMonitoredSocketBundle, and PSingleMonitoredSocket.

WORD PMonitoredSockets::GetPort ( ) const [inline]

Return the local port number being used by the socket(s).

virtual PBoolean PMonitoredSockets::GetAddress	(	const PString &	iface,
		PIPSocket::Address &	address,
		WORD &	port,
		PBoolean	usingNAT
	)			const `[pure virtual]`

Get the local address for the given interface.

Parameters:

address	Interface to get address for
port	Address of interface
usingNAT	Port listening on Require NAT address/port

Implemented in PMonitoredSocketBundle, and PSingleMonitoredSocket.

virtual PChannel::Errors PMonitoredSockets::WriteToBundle	(	const void *	buffer,
		PINDEX	length,
		const PIPSocket::Address &	addr,
		WORD	port,
		const PString &	iface,
		PINDEX &	lastWriteCount
	)			`[pure virtual]`

Write to the remote address/port using the socket(s) available. If the iface parameter is empty, then the data is written to all socket(s). Otherwise the iface parameter indicates the specific interface socket to write the data to.

Parameters:

length	Data to write
addr	Length of data
port	Remote IP address to write to
iface	Remote port to write to
lastWriteCount	Interface to use for writing

Implemented in PMonitoredSocketBundle, and PSingleMonitoredSocket.

virtual PChannel::Errors PMonitoredSockets::ReadFromBundle	(	void *	buffer,
		PINDEX	length,
		PIPSocket::Address &	addr,
		WORD &	port,
		PString &	iface,
		PINDEX &	lastReadCount,
		const PTimeInterval &	timeout
	)			`[pure virtual]`

Read fram a remote address/port using the socket(s) available. If the iface parameter is empty, then the first data received on any socket(s) is used, and the iface parameter is set to the name of that interface. Otherwise the iface parameter indicates the specific interface socket to read the data from.

Parameters:

length	Data to read
addr	Maximum length of data
port	Remote IP address data came from
iface	Remote port data came from
lastReadCount	Interface to use for read, also one data was read on
timeout	Actual length of data read Time to wait for data

Implemented in PMonitoredSocketBundle, and PSingleMonitoredSocket.

void PMonitoredSockets::SetSTUN ( PSTUNClient * stunClient ) [inline]

Set the STUN server.

PSTUNClient* PMonitoredSockets::GetSTUN ( ) const [inline]

static PMonitoredSockets* PMonitoredSockets::Create	(	const PString &	iface,
		PBoolean	reuseAddr = `PFalse`,
		PSTUNClient *	stunClient = `NULL`
	)			`[static]`

Create a new monitored socket instance based on the interface descriptor. This will create a multiple or single socket derived class of PMonitoredSockets depending on teh iface parameter.

Parameters:

reuseAddr	Interface name to create socket for
stunClient	Re-use or exclusive port number STUN client code

virtual void PMonitoredSockets::OnRemoveSTUNClient ( const PSTUNClient * stun ) [protected, virtual]

Called when a PSTUNClient is about to be destroyed.

Reimplemented from PInterfaceMonitorClient.

PBoolean PMonitoredSockets::CreateSocket	(	SocketInfo &	info,
		const PIPSocket::Address &	binding
	)			`[protected]`

PBoolean PMonitoredSockets::DestroySocket ( SocketInfo & info ) [protected]

PBoolean PMonitoredSockets::GetSocketAddress	(	const SocketInfo &	info,
		PIPSocket::Address &	address,
		WORD &	port,
		PBoolean	usingNAT
	)			const `[protected]`

PChannel::Errors PMonitoredSockets::WriteToSocket	(	const void *	buf,
		PINDEX	len,
		const PIPSocket::Address &	addr,
		WORD	port,
		const SocketInfo &	info,
		PINDEX &	lastWriteCount
	)			`[protected]`

PChannel::Errors PMonitoredSockets::ReadFromSocket	(	SocketInfo &	info,
		void *	buf,
		PINDEX	len,
		PIPSocket::Address &	addr,
		WORD &	port,
		PINDEX &	lastReadCount,
		const PTimeInterval &	timeout
	)			`[protected]`
