PIPSocket Class Reference

#include <ipsock.h>

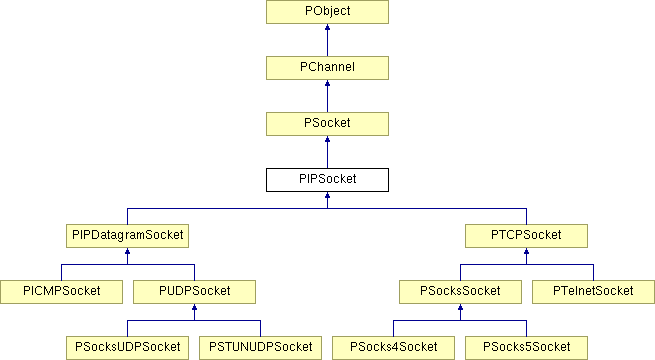

Inheritance diagram for PIPSocket:

PSocket PChannel PObject PIPDatagramSocket PTCPSocket PICMPSocket PUDPSocket PSocksSocket PTelnetSocket PSocksUDPSocket PSTUNUDPSocket PSocks4Socket PSocks5Socket List of all members.

Public Member Functions

virtual PString GetName () const
virtual BOOL OpenSocket (int ipAdressFamily=PF_INET)=0
virtual BOOL Connect (const PString &address)
virtual BOOL Connect (const Address &addr)
virtual BOOL Connect (WORD localPort, const Address &addr)
virtual BOOL Connect (const Address &iface, const Address &addr)
virtual BOOL Connect (const Address &iface, WORD localPort, const Address &addr)
virtual BOOL Listen (unsigned queueSize=5, WORD port=0, Reusability reuse=AddressIsExclusive)
virtual BOOL Listen (const Address &bind, unsigned queueSize=5, WORD port=0, Reusability reuse=AddressIsExclusive)
virtual PString GetLocalAddress ()
virtual BOOL GetLocalAddress (Address &addr)
virtual BOOL GetLocalAddress (Address &addr, WORD &port)
virtual PString GetPeerAddress ()
virtual BOOL GetPeerAddress (Address &addr)
virtual BOOL GetPeerAddress (Address &addr, WORD &port)
PString GetLocalHostName ()
PString GetPeerHostName ()
 PLIST (RouteTable, RouteEntry)
 PLIST (InterfaceTable, InterfaceEntry)
BOOL SetCaptureReceiveToAddress ()
PIPSocket::Address GetLastReceiveToAddress () const

Static Public Member Functions

static int GetDefaultIpAddressFamily ()
static void SetDefaultIpAddressFamily (int ipAdressFamily)
static void SetDefaultIpAddressFamilyV4 ()
static PIPSocket::Address GetDefaultIpAny ()
static PString GetHostName ()
static PString GetHostName (const PString &hostname)
static PString GetHostName (const Address &addr)
static BOOL GetHostAddress (Address &addr)
static BOOL GetHostAddress (const PString &hostname, Address &addr)
static PStringArray GetHostAliases (const PString &hostname)
static PStringArray GetHostAliases (const Address &addr)
static BOOL IsLocalHost (const PString &hostname)
static void ClearNameCache ()
static BOOL GetGatewayAddress (Address &addr)
static PString GetGatewayInterface ()
static BOOL GetRouteTable (RouteTable &table)
static BOOL GetInterfaceTable (InterfaceTable &table, BOOL includeDown=FALSE)
static BOOL GetNetworkInterface (PIPSocket::Address &addr)

Protected Member Functions

 PIPSocket ()

Classes

class  Address
class  InterfaceEntry
class  RouteEntry

Detailed Description

This class describes a type of socket that will communicate using the Internet Protocol. If P_HAS_IPV6 is not set, IPv4 only is supported. If P_HAS_IPV6 is set, both IPv4 and IPv6 adresses are supported, with IPv4 as default. This allows to transparently use IPv4, IPv6 or Dual stack operating systems.

Constructor & Destructor Documentation

PIPSocket::PIPSocket (  )  [protected]

Member Function Documentation

virtual PString PIPSocket::GetName (  )  const [virtual]

Get the platform and I/O channel type name of the channel. For an IP socket this returns the host name of the peer the socket is connected to, followed by the socket number it is connected to.

Returns:
the name of the channel.

Reimplemented from PChannel.

static int PIPSocket::GetDefaultIpAddressFamily (  )  [static]

static void PIPSocket::SetDefaultIpAddressFamily ( int  ipAdressFamily  )  [static]

static void PIPSocket::SetDefaultIpAddressFamilyV4 (  )  [static]

static PIPSocket::Address PIPSocket::GetDefaultIpAny (  )  [static]

virtual BOOL PIPSocket::OpenSocket ( int  ipAdressFamily = PF_INET  )  [pure virtual]

Implemented in PICMPSocket, PTCPSocket, and PUDPSocket.

virtual BOOL PIPSocket::Connect ( const PString &  address  )  [virtual]

Connect a socket to a remote host on the specified port number. This is typically used by the client or initiator of a communications channel. This connects to a "listening" socket at the other end of the communications channel.

The port number as defined by the object instance construction or the PIPSocket::SetPort()# function.

Returns:
TRUE if the channel was successfully connected to the remote host.
Parameters:
address  Address of remote machine to connect to.

Reimplemented from PSocket.

Reimplemented in PUDPSocket, PSocksSocket, PSocksUDPSocket, and PTelnetSocket.

virtual BOOL PIPSocket::Connect ( const Address &  addr  )  [virtual]

Parameters:
addr  Address of remote machine to connect to.

virtual BOOL PIPSocket::Connect ( WORD  localPort,
const Address &  addr
) [virtual]

Parameters:
localPort  Local port number for connection
addr  Address of remote machine to connect to.

virtual BOOL PIPSocket::Connect ( const Address &  iface,
const Address &  addr
) [virtual]

Parameters:
iface  Address of local interface to us.
addr  Address of remote machine to connect to.

virtual BOOL PIPSocket::Connect ( const Address &  iface,
WORD  localPort,
const Address &  addr
) [virtual]

Parameters:
iface  Address of local interface to us.
localPort  Local port number for connection
addr  Address of remote machine to connect to.

virtual BOOL PIPSocket::Listen ( unsigned  queueSize = 5,
WORD  port = 0,
Reusability  reuse = AddressIsExclusive
) [virtual]

Listen on a socket for a remote host on the specified port number. This may be used for server based applications. A "connecting" socket begins a connection by initiating a connection to this socket. An active socket of this type is then used to generate other "accepting" sockets which establish a two way communications channel with the "connecting" socket.

If the port# parameter is zero then the port number as defined by the object instance construction or the PIPSocket::SetPort()# function.

For the UDP protocol, the queueSize# parameter is ignored.

Returns:
TRUE if the channel was successfully opened.
Parameters:
queueSize  Number of pending accepts that may be queued.
port  Port number to use for the connection.
reuse  Can/Cant listen more than once.

Reimplemented from PSocket.

Reimplemented in PTCPSocket, PSocksSocket, and PSocksUDPSocket.

virtual BOOL PIPSocket::Listen ( const Address &  bind,
unsigned  queueSize = 5,
WORD  port = 0,
Reusability  reuse = AddressIsExclusive
) [virtual]

Parameters:
bind  Local interface address to bind to.
queueSize  Number of pending accepts that may be queued.
port  Port number to use for the connection.
reuse  Can/Can't listen more than once.

static PString PIPSocket::GetHostName (  )  [static]

Get the "official" host name for the host specified or if none, the host this process is running on. The host may be specified as an IP number or a hostname alias and is resolved to the canonical form.

Returns:
Name of the host or IP number of host.

static PString PIPSocket::GetHostName ( const PString &  hostname  )  [static]

Parameters:
hostname  Hosts IP address to get name for

static PString PIPSocket::GetHostName ( const Address &  addr  )  [static]

Parameters:
addr  Hosts IP address to get name for

static BOOL PIPSocket::GetHostAddress ( Address &  addr  )  [static]

Get the Internet Protocol address for the specified host, or if none specified, for the host this process is running on.

Returns:
TRUE if the IP number was returned.
Parameters:
addr  Variable to receive hosts IP address

static BOOL PIPSocket::GetHostAddress ( const PString &  hostname,
Address &  addr
) [static]

Parameters:
addr  Variable to receive hosts IP address

static PStringArray PIPSocket::GetHostAliases ( const PString &  hostname  )  [static]

Get the alias host names for the specified host. This includes all DNS names, CNAMEs, names in the local hosts file and IP numbers (as "dot" format strings) for the host.

Returns:
array of strings for each alias for the host.

static PStringArray PIPSocket::GetHostAliases ( const Address &  addr  )  [static]

Parameters:
addr  Hosts IP address

static BOOL PIPSocket::IsLocalHost ( const PString &  hostname  )  [static]

Determine if the specified host is actually the local machine. This can be any of the host aliases or multi-homed IP numbers or even the special number 127.0.0.1 for the loopback device.

Returns:
TRUE if the host is the local machine.

virtual PString PIPSocket::GetLocalAddress (  )  [virtual]

Get the Internet Protocol address and port for the local host.

Returns:
FALSE (or empty string) if the IP number was not available.

virtual BOOL PIPSocket::GetLocalAddress ( Address &  addr  )  [virtual]

Parameters:
addr  Variable to receive hosts IP address

virtual BOOL PIPSocket::GetLocalAddress ( Address &  addr,
WORD &  port
) [virtual]

Parameters:
addr  Variable to receive peer hosts IP address
port  Variable to receive peer hosts port number

virtual PString PIPSocket::GetPeerAddress (  )  [virtual]

Get the Internet Protocol address for the peer host and port the socket is connected to.

Returns:
FALSE (or empty string) if the IP number was not available.

virtual BOOL PIPSocket::GetPeerAddress ( Address &  addr  )  [virtual]

Parameters:
addr  Variable to receive hosts IP address

virtual BOOL PIPSocket::GetPeerAddress ( Address &  addr,
WORD &  port
) [virtual]

Parameters:
addr  Variable to receive peer hosts IP address
port  Variable to receive peer hosts port number

PString PIPSocket::GetLocalHostName (  )

Get the host name for the local host.

Returns:
Name of the host, or an empty string if an error occurs.

PString PIPSocket::GetPeerHostName (  )

Get the host name for the peer host the socket is connected to.

Returns:
Name of the host, or an empty string if an error occurs.

static void PIPSocket::ClearNameCache (  )  [static]

Clear the name (DNS) cache.

static BOOL PIPSocket::GetGatewayAddress ( Address &  addr  )  [static]

Get the IP address that is being used as the gateway, that is, the computer that packets on the default route will be sent.

The string returned may be used in the Connect() function to open that interface.

Note that the driver does not need to be open for this function to work.

Returns:
TRUE if there was a gateway.
Parameters:
addr  Variable to receive the IP address.

static PString PIPSocket::GetGatewayInterface (  )  [static]

Get the name for the interface that is being used as the gateway, that is, the interface that packets on the default route will be sent.

The string returned may be used in the Connect() function to open that interface.

Note that the driver does not need to be open for this function to work.

Returns:
String name of the gateway device, or empty string if there is none.

PIPSocket::PLIST ( RouteTable  ,
RouteEntry
)

static BOOL PIPSocket::GetRouteTable ( RouteTable &  table  )  [static]

Get the systems route table.

Returns:
TRUE if the route table is returned, FALSE if an error occurs.
Parameters:
table  Route table

PIPSocket::PLIST ( InterfaceTable  ,
InterfaceEntry
)

static BOOL PIPSocket::GetInterfaceTable ( InterfaceTable &  table,
BOOL  includeDown = FALSE
) [static]

Get a list of all interfaces

Returns:
TRUE if the interface table is returned, FALSE if an error occurs.
Parameters:
table  interface table
includeDown  Include interfaces that are down

static BOOL PIPSocket::GetNetworkInterface ( PIPSocket::Address &  addr  )  [static]

Get the address of an interface that corresponds to a real network

Returns:
FALSE if only loopback interfaces could be found, else TRUE

BOOL PIPSocket::SetCaptureReceiveToAddress (  )  [inline]

Set flag to capture interface address for incoming packets

Returns:
TRUE if host is able to capture incoming address, else FALSE

PIPSocket::Address PIPSocket::GetLastReceiveToAddress (  )  const [inline]

return the interface address of the last incoming packet

The documentation for this class was generated from the following file:
