OpalRFC4175Encoder Class Reference

#include <rfc4175.h>

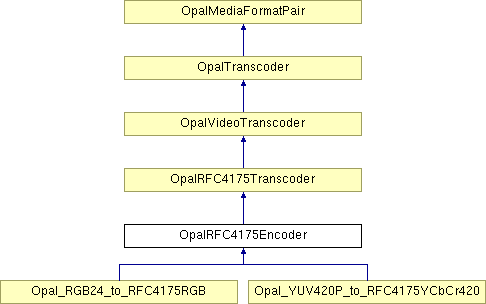

Inheritance diagram for OpalRFC4175Encoder:


Public Member Functions
	OpalRFC4175Encoder (const OpalMediaFormat &inputMediaFormat, const OpalMediaFormat &outputMediaFormat)
bool	ConvertFrames (const RTP_DataFrame &input, RTP_DataFrameList &output)
Protected Member Functions
virtual void	StartEncoding (const RTP_DataFrame &input)
virtual void	EndEncoding ()=0
void	EncodeFullFrame ()
void	EncodeScanLineSegment (PINDEX y, PINDEX offs, PINDEX width)
void	AddNewDstFrame ()
void	FinishOutputFrame ()
Protected Attributes
DWORD	m_extendedSequenceNumber
PINDEX	m_maximumPacketSize
unsigned	m_frameHeight
unsigned	m_frameWidth
DWORD	m_srcTimestamp
RTP_DataFrameList *	m_dstFrames
std::vector< PINDEX >	m_dstScanlineCounts
PINDEX	m_dstScanLineCount
PINDEX	m_dstPacketSize
ScanLineHeader *	m_dstScanLineTable

Constructor & Destructor Documentation

OpalRFC4175Encoder::OpalRFC4175Encoder	(	const OpalMediaFormat &	inputMediaFormat,
		const OpalMediaFormat &	outputMediaFormat
	)

Parameters:

inputMediaFormat	Input media format
outputMediaFormat	Output media format

Member Function Documentation

void OpalRFC4175Encoder::AddNewDstFrame ( ) [protected]

bool OpalRFC4175Encoder::ConvertFrames	(	const RTP_DataFrame &	input,
		RTP_DataFrameList &	output
	)			`[virtual]`

Convert the data from one format to another. This function takes the input data as a RTP_DataFrame and converts it to its output format, placing it (possibly) into multiple RTP_DataFrame objects.

The default behaviour makes sure the output list has only one element in it and calls the Convert() function.

Returns false if the conversion fails.

Reimplemented from OpalTranscoder.

void OpalRFC4175Encoder::EncodeFullFrame ( ) [protected]
