OpalLocalEndPoint Class Reference

#include <localep.h>

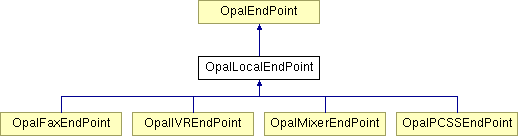

Inheritance diagram for OpalLocalEndPoint:


Public Member Functions
Construction
	OpalLocalEndPoint (OpalManager &manager, const char *prefix="local")
	~OpalLocalEndPoint ()
Overrides from OpalEndPoint
virtual OpalMediaFormatList	GetMediaFormats () const
virtual PSafePtr< OpalConnection >	MakeConnection (OpalCall &call, const PString &party, void userData=NULL, unsigned int options=0, OpalConnection::StringOptions stringOptions=NULL)
Customisation call backs
PSafePtr< OpalLocalConnection >	GetLocalConnectionWithLock (const PString &token, PSafetyMode mode=PSafeReadWrite)
virtual OpalLocalConnection *	CreateConnection (OpalCall &call, void userData, unsigned options, OpalConnection::StringOptions stringOptions)
virtual bool	OnOutgoingCall (const OpalLocalConnection &connection)
virtual bool	OnIncomingCall (OpalLocalConnection &connection)
virtual bool	AlertingIncomingCall (const PString &token)
virtual bool	AcceptIncomingCall (const PString &token)
virtual bool	RejectIncomingCall (const PString &token, const OpalConnection::CallEndReason &reason=OpalConnection::EndedByAnswerDenied)
virtual bool	OnUserInput (const OpalLocalConnection &connection, const PString &indication)
virtual bool	OnReadMediaFrame (const OpalLocalConnection &connection, const OpalMediaStream &mediaStream, RTP_DataFrame &frame)
virtual bool	OnWriteMediaFrame (const OpalLocalConnection &connection, const OpalMediaStream &mediaStream, RTP_DataFrame &frame)
virtual bool	OnReadMediaData (const OpalLocalConnection &connection, const OpalMediaStream &mediaStream, void *data, PINDEX size, PINDEX &length)
virtual bool	OnWriteMediaData (const OpalLocalConnection &connection, const OpalMediaStream &mediaStream, const void *data, PINDEX length, PINDEX &written)
virtual bool	IsSynchronous () const
bool	IsDeferredAlerting () const
void	SetDeferredAlerting (bool defer)
bool	IsDeferredAnswer () const
void	SetDeferredAnswer (bool defer)
Protected Attributes
bool	m_deferredAlerting
bool	m_deferredAnswer

Detailed Description

Local EndPoint. This class represents an endpoint on the local machine that can receive media via virtual functions.

Constructor & Destructor Documentation

OpalLocalEndPoint::OpalLocalEndPoint	(	OpalManager &	manager,
		const char *	prefix = `"local"`
	)

Create a new endpoint.

Parameters:

manager	Manager of all endpoints.
prefix	Prefix for URL style address strings

OpalLocalEndPoint::~OpalLocalEndPoint ( )

Destroy endpoint.

Member Function Documentation

virtual bool OpalLocalEndPoint::AcceptIncomingCall ( const PString & token ) [virtual]

Accept the incoming connection. Returns false if the connection token does not correspond to a valid connection.

Parameters:

token

Token of connection to accept call

virtual bool OpalLocalEndPoint::AlertingIncomingCall ( const PString & token ) [virtual]

Indicate alerting for the incoming connection. Returns false if the connection token does not correspond to a valid connection.

Parameters:

token

Token of connection to accept call

virtual OpalLocalConnection* OpalLocalEndPoint::CreateConnection	(	OpalCall &	call,
		void *	userData,
		unsigned	options,
		OpalConnection::StringOptions *	stringOptions
	)			`[virtual]`

Create a connection for the PCSS endpoint. The default implementation is to create a OpalLocalConnection.

Parameters:

call	Owner of connection
userData	Arbitrary data to pass to connection
options	Option bit mask to pass to connection
stringOptions	Options to pass to connection

PSafePtr<OpalLocalConnection> OpalLocalEndPoint::GetLocalConnectionWithLock	(	const PString &	token,
		PSafetyMode	mode = `PSafeReadWrite`
	)			`[inline]`

Find a connection that uses the specified token. This searches the endpoint for the connection that contains the token as provided by functions such as MakeConnection(). If not then it attempts to use the token as a OpalCall token and find a connection of the same class.

Parameters:

token	Token to identify connection
mode	Lock mode

virtual OpalMediaFormatList OpalLocalEndPoint::GetMediaFormats ( ) const [virtual]

Get the data formats this endpoint is capable of operating. This provides a list of media data format names that may be used by an OpalMediaStream may be created by a connection from this endpoint.

Note that a specific connection may not actually support all of the media formats returned here, but should return no more.

The default behaviour returns the most basic media formats, PCM audio and YUV420P video.

Implements OpalEndPoint.

Reimplemented in OpalIVREndPoint, OpalMixerEndPoint, and OpalFaxEndPoint.

bool OpalLocalEndPoint::IsDeferredAlerting ( ) const [inline]

Indicate OnAlerting() is be deferred or immediate.

bool OpalLocalEndPoint::IsDeferredAnswer ( ) const [inline]

Indicate AcceptIncomingCall() execution is be deferred or immediate on OnIncomingCall().

virtual bool OpalLocalEndPoint::IsSynchronous ( ) const [virtual]

Indicate that I/O is synchronous. This indicates that the OnReadMediaXXX and OnWriteMediaXXX functions will execute blocking to the correct real time synchonisation. So if for example OnWriteMediaData() is sent 320 bytes of PCM data then it will, on average, block for 20 milliseconds per call.

If the function returns false, then the system will try and simulate the correct timing using the operating system sleep function. However this is not desirable as this function is notoriously inaccurate.

Default returns true.

virtual PSafePtr<OpalConnection> OpalLocalEndPoint::MakeConnection	(	OpalCall &	call,
		const PString &	party,
		void *	userData = `NULL`,
		unsigned int	options = `0`,
		OpalConnection::StringOptions *	stringOptions = `NULL`
	)			`[virtual]`

Set up a connection to a remote party. This is called from the OpalManager::MakeConnection() function once it has determined that this is the endpoint for the protocol.

The general form for this party parameter is:

[proto:][alias@][transport$]address[:port]

where the various fields will have meanings specific to the endpoint type. For example, with H.323 it could be "h323:Fred@site.com" which indicates a user Fred at gatekeeper size.com. Whereas for the PSTN endpoint it could be "pstn:5551234" which is to call 5551234 on the first available PSTN line.

The proto field is optional when passed to a specific endpoint. If it is present, however, it must agree with the endpoints protocol name or false is returned.

This function usually returns almost immediately with the connection continuing to occur in a new background thread.

If false is returned then the connection could not be established. For example if a PSTN endpoint is used and the assiciated line is engaged then it may return immediately. Returning a non-NULL value does not mean that the connection will succeed, only that an attempt is being made.

The default behaviour is pure.

Parameters:

call	Owner of connection
party	Remote party to call
userData	Arbitrary data to pass to connection
options	options to pass to conneciton
stringOptions	Options to pass to connection

Implements OpalEndPoint.

Reimplemented in OpalIVREndPoint, and OpalFaxEndPoint.

virtual bool OpalLocalEndPoint::OnIncomingCall ( OpalLocalConnection & connection ) [virtual]

Call back to indicate that remote is ringing. If false is returned the call is aborted.

The default implementation answers the call immediately.

Parameters:

connection

Connection having event

Reimplemented in OpalPCSSEndPoint.

virtual bool OpalLocalEndPoint::OnOutgoingCall ( const OpalLocalConnection & connection ) [virtual]

Call back to indicate that remote is ringing. If false is returned the call is aborted.

The default implementation does nothing.

Parameters:

connection

Connection having event

Reimplemented in OpalPCSSEndPoint.

virtual bool OpalLocalEndPoint::OnReadMediaData	(	const OpalLocalConnection &	connection,
		const OpalMediaStream &	mediaStream,
		void *	data,
		PINDEX	size,
		PINDEX &	length
	)			`[virtual]`

Call back to get media data for transmission. If false is returned the media stream will be closed.

The default implementation returns false.

Parameters:

connection	Connection for media
mediaStream	Media stream data is required for
data	Data to send
size	Maximum size of data buffer
length	Number of bytes placed in buffer

virtual bool OpalLocalEndPoint::OnReadMediaFrame	(	const OpalLocalConnection &	connection,
		const OpalMediaStream &	mediaStream,
		RTP_DataFrame &	frame
	)			`[virtual]`

Call back to get media data for transmission. If false is returned then OnReadMediaData() is called.

The default implementation returns false.

Parameters:

connection	Connection for media
mediaStream	Media stream data is required for
frame	RTP frame for data

virtual bool OpalLocalEndPoint::OnUserInput	(	const OpalLocalConnection &	connection,
		const PString &	indication
	)			`[virtual]`

Call back to indicate that the remote user has indicated something. If false is returned the call is aborted.

The default implementation does nothing.

Parameters:

connection	Connection having event
indication	User input received

Reimplemented in OpalPCSSEndPoint.

virtual bool OpalLocalEndPoint::OnWriteMediaData	(	const OpalLocalConnection &	connection,
		const OpalMediaStream &	mediaStream,
		const void *	data,
		PINDEX	length,
		PINDEX &	written
	)			`[virtual]`

Call back to handle received media data. If false is returned the media stream will be closed.

The default implementation returns false.

Parameters:

connection	Connection for media
mediaStream	Media stream data is required for
data	Data received
length	Amount of data available to write
written	Amount of data written

virtual bool OpalLocalEndPoint::OnWriteMediaFrame	(	const OpalLocalConnection &	connection,
		const OpalMediaStream &	mediaStream,
		RTP_DataFrame &	frame
	)			`[virtual]`

Call back to handle received media data. If false is returned then OnWriteMediaData() is called.

The default implementation . The default implementation returns false.

Parameters:

connection	Connection for media
mediaStream	Media stream data is required for
frame	RTP frame for data

virtual bool OpalLocalEndPoint::RejectIncomingCall	(	const PString &	token,
		const OpalConnection::CallEndReason &	reason = `OpalConnection::EndedByAnswerDenied`
	)			`[virtual]`
