H323GenericCapabilityInfo Class Reference

#include <h323caps.h>

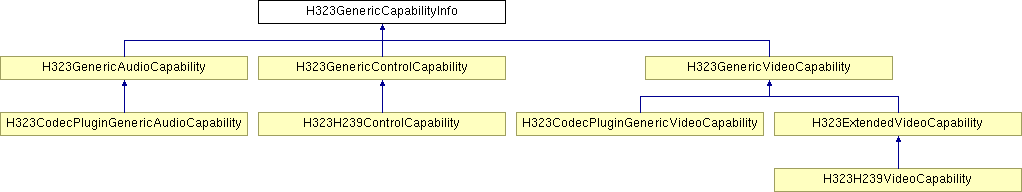

Inheritance diagram for H323GenericCapabilityInfo:

Public Member Functions
	H323GenericCapabilityInfo (const PString &id, unsigned maxBitRate=0)
virtual	~H323GenericCapabilityInfo ()
Protected Member Functions
virtual PBoolean	OnSendingGenericPDU (H245_GenericCapability &pdu, const OpalMediaFormat &mediaFormat, H323Capability::CommandType type) const
virtual PBoolean	OnReceivedGenericPDU (OpalMediaFormat &mediaFormat, const H245_GenericCapability &pdu, H323Capability::CommandType type)
PBoolean	IsMatch (const H245_GenericCapability &param) const
PObject::Comparison	CompareInfo (const H323GenericCapabilityInfo &obj) const
Protected Attributes
PString	m_identifier
unsigned	maxBitRate

---

Detailed Description

This class describes the interface to a generic codec used to transfer data via the logical channels opened and managed by the H323 control channel.

It is expected that an application makes a descendent off H323GenericAudioCapability or H323GenericVideoCapability which multiply inherit from this class.

---

Constructor & Destructor Documentation

H323GenericCapabilityInfo::H323GenericCapabilityInfo	(	const PString &	id,
		unsigned	maxBitRate = 0
	)

Parameters:

id	generic codec identifier
maxBitRate	maxBitRate parameter for the GenericCapability

virtual H323GenericCapabilityInfo::~H323GenericCapabilityInfo

(

)

[inline, virtual]

---

Member Function Documentation

PObject::Comparison H323GenericCapabilityInfo::CompareInfo

(

const H323GenericCapabilityInfo &

obj

)

const [protected]

PBoolean H323GenericCapabilityInfo::IsMatch

(

const H245_GenericCapability &

param

)

const [protected]

Parameters:

param

Non standard field in PDU received

virtual PBoolean H323GenericCapabilityInfo::OnReceivedGenericPDU	(	OpalMediaFormat &	mediaFormat,
		const H245_GenericCapability &	pdu,
		H323Capability::CommandType	type
	)			[protected, virtual]

virtual PBoolean H323GenericCapabilityInfo::OnSendingGenericPDU	(	H245_GenericCapability &	pdu,
		const OpalMediaFormat &	mediaFormat,
		H323Capability::CommandType	type
	)			const [protected, virtual]

---

Field Documentation

PString H323GenericCapabilityInfo::m_identifier [protected]

unsigned H323GenericCapabilityInfo::maxBitRate [protected]

---

The documentation for this class was generated from the following file:

• h323caps.h

---
