OpalRFC4175Encoder Class Reference

#include <rfc4175.h>

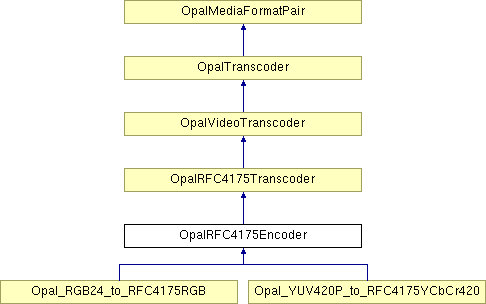

Inheritance diagram for OpalRFC4175Encoder:

Public Member Functions
	OpalRFC4175Encoder (const OpalMediaFormat &inputMediaFormat, const OpalMediaFormat &outputMediaFormat)
PBoolean	ConvertFrames (const RTP_DataFrame &input, RTP_DataFrameList &output)
Protected Member Functions
virtual void	StartEncoding (const RTP_DataFrame &input)
virtual void	EndEncoding ()=0
void	EncodeFullFrame ()
void	EncodeScanLineSegment (PINDEX y, PINDEX offs, PINDEX width)
void	AddNewDstFrame ()
void	FinishOutputFrame ()
Protected Attributes
DWORD	extendedSequenceNumber
PINDEX	maximumPacketSize
unsigned	frameHeight
unsigned	frameWidth
DWORD	srcTimestamp
RTP_DataFrameList *	dstFrames
std::vector< PINDEX >	dstScanlineCounts
PINDEX	dstScanLineCount
PINDEX	dstPacketSize
ScanLineHeader *	dstScanLineTable

---

Constructor & Destructor Documentation

OpalRFC4175Encoder::OpalRFC4175Encoder	(	const OpalMediaFormat &	inputMediaFormat,
		const OpalMediaFormat &	outputMediaFormat
	)

Parameters:

inputMediaFormat	Input media format
outputMediaFormat	Output media format

---

Member Function Documentation

void OpalRFC4175Encoder::AddNewDstFrame

(

)

[protected]

PBoolean OpalRFC4175Encoder::ConvertFrames	(	const RTP_DataFrame &	input,
		RTP_DataFrameList &	output
	)			[virtual]

Convert the data from one format to another. This function takes the input data as a RTP_DataFrame and converts it to its output format, placing it (possibly) into multiple RTP_DataFrame objects.

The default behaviour makes sure the output list has only one element in it and calls the Convert() function.

Returns PFalse if the conversion fails.

Reimplemented from OpalTranscoder.

void OpalRFC4175Encoder::EncodeFullFrame

(

)

[protected]

void OpalRFC4175Encoder::EncodeScanLineSegment	(	PINDEX	y,
		PINDEX	offs,
		PINDEX	width
	)			[protected]

virtual void OpalRFC4175Encoder::EndEncoding

(

)

[protected, pure virtual]

Implemented in Opal_YUV420P_to_RFC4175YCbCr420, and Opal_RGB24_to_RFC4175RGB.

void OpalRFC4175Encoder::FinishOutputFrame

(

)

[protected]

virtual void OpalRFC4175Encoder::StartEncoding

(

const RTP_DataFrame &

input

)

[protected, virtual]

Reimplemented in Opal_YUV420P_to_RFC4175YCbCr420, and Opal_RGB24_to_RFC4175RGB.

---

Field Documentation

RTP_DataFrameList* OpalRFC4175Encoder::dstFrames [protected]

PINDEX OpalRFC4175Encoder::dstPacketSize [protected]

PINDEX OpalRFC4175Encoder::dstScanLineCount [protected]

std::vector<PINDEX> OpalRFC4175Encoder::dstScanlineCounts [protected]

ScanLineHeader* OpalRFC4175Encoder::dstScanLineTable [protected]

DWORD OpalRFC4175Encoder::extendedSequenceNumber [protected]

unsigned OpalRFC4175Encoder::frameHeight [protected]

unsigned OpalRFC4175Encoder::frameWidth [protected]

PINDEX OpalRFC4175Encoder::maximumPacketSize [protected]

DWORD OpalRFC4175Encoder::srcTimestamp [protected]

---

The documentation for this class was generated from the following file:

• rfc4175.h

---
