H323UnidirectionalChannel Class Reference

#include <channels.h>

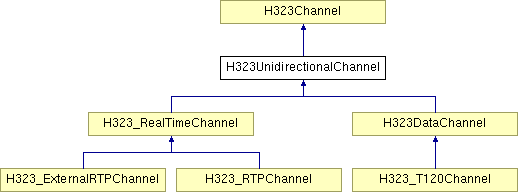

Inheritance diagram for H323UnidirectionalChannel:

Public Member Functions
void	OnMediaCommand (OpalMediaCommand &command)
Construction
	H323UnidirectionalChannel (H323Connection &connection, const H323Capability &capability, Directions direction)
	~H323UnidirectionalChannel ()
Overrides from class H323Channel
virtual Directions	GetDirection () const
virtual PBoolean	SetInitialBandwidth ()
virtual PBoolean	Open ()
virtual PBoolean	Start ()
virtual void	OnMiscellaneousCommand (const H245_MiscellaneousCommand_type &type)
Member variable access
virtual OpalMediaStreamPtr	GetMediaStream () const
Protected Member Functions
virtual void	InternalClose ()
Protected Attributes
bool	receiver
OpalMediaStreamPtr	mediaStream

---

Detailed Description

This class describes a unidirectional logical channel between the two endpoints. They may be created and deleted as required in the H245 protocol.

An application may create a descendent off this class and override functions as required for operating the channel protocol.

---

Constructor & Destructor Documentation

H323UnidirectionalChannel::H323UnidirectionalChannel	(	H323Connection &	connection,
		const H323Capability &	capability,
		Directions	direction
	)

Create a new channel.

Parameters:

connection	Connection to endpoint for channel
capability	Capability channel is using
direction	Direction of channel

H323UnidirectionalChannel::~H323UnidirectionalChannel

(

)

Destroy the channel, deleting the associated media stream.

---

Member Function Documentation

virtual Directions H323UnidirectionalChannel::GetDirection

(

)

const [virtual]

Indicate the direction of the channel. Return if the channel is bidirectional, or unidirectional, and which direction for th latter case.

Implements H323Channel.

virtual OpalMediaStreamPtr H323UnidirectionalChannel::GetMediaStream

(

)

const [virtual]

Get the media stream associated with this logical channel. The default behaviour returns NULL.

Reimplemented from H323Channel.

virtual void H323UnidirectionalChannel::InternalClose

(

)

[protected, virtual]

Reimplemented from H323Channel.

Reimplemented in H323DataChannel.

void H323UnidirectionalChannel::OnMediaCommand

(

OpalMediaCommand &

command

)

[virtual]

Reimplemented from H323Channel.

virtual void H323UnidirectionalChannel::OnMiscellaneousCommand

(

const H245_MiscellaneousCommand_type &

type

)

[virtual]

Process a miscellaneous command on the logical channel. The default behaviour passes this on to the codec if not NULL.

Parameters:

type	Command to process

Reimplemented from H323Channel.

virtual PBoolean H323UnidirectionalChannel::Open

(

)

[virtual]

Open the channel.

Reimplemented from H323Channel.

virtual PBoolean H323UnidirectionalChannel::SetInitialBandwidth

(

)

[virtual]

Set the initial bandwidth for the channel. This calculates the initial bandwidth required by the channel and returns PTrue if the connection can support this bandwidth.

The default behaviour gets the bandwidth requirement from the codec object created by the channel.

Implements H323Channel.

virtual PBoolean H323UnidirectionalChannel::Start

(

)

[virtual]

This is called when the channel can start transferring data. The default action is to start one threads, with it either calling Receive() or Transmit() depending on the receiver member variable.

Implements H323Channel.

Reimplemented in H323_ExternalRTPChannel.

---

Field Documentation

OpalMediaStreamPtr H323UnidirectionalChannel::mediaStream [protected]

bool H323UnidirectionalChannel::receiver [protected]

---

The documentation for this class was generated from the following file:

• channels.h

---
