H460_Feature Class Reference

#include <h4601.h>

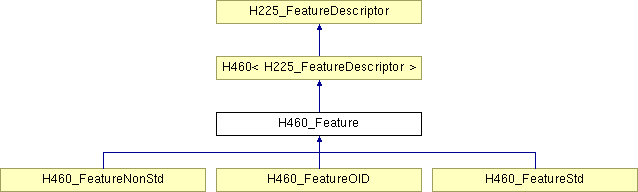

Inheritance diagram for H460_Feature:

Enumerators
enum H460_Feature::{ FeatureNeeded = 1, FeatureDesired, FeatureSupported }	FeatureCategory
enum H460_Feature::{   FeatureBase = 4, FeatureBaseAll = 5, FeatureBaseRas = 6, FeatureBaseSignal = 7,   FeatureRas = 8, FeatureSignal = 16 }	FeatureInstance
Plugin Management
virtual void	AttachEndPoint (H323EndPoint *_ep)
virtual void	AttachConnection (H323Connection *_con)
static PStringList	GetFeatureNames (PPluginManager *pluginMgr=NULL)
static PStringList	GetFeatureFriendlyNames (const PString &feature, PPluginManager *pluginMgr=NULL)
static H460_Feature *	CreateFeature (const PString &featurename, int FeatureType=FeatureBase, PPluginManager *pluginMgr=NULL)
static PStringList	GetFeatureName ()
static PStringList	GetFeatureFriendlyName ()
static int	GetPurpose ()
Public Member Functions
Construction
	H460_Feature ()
	H460_Feature (unsigned Identifier)
	H460_Feature (PString Identifier)
	H460_Feature (OpalOID Indentifier)
	H460_Feature (const H225_FeatureDescriptor &descriptor)
Operators
	operator unsigned () const
	operator PString () const
H460_FeatureID	GetFeatureID ()
void	SetFeatureID (const H460_FeatureID &id)
PString	GetFeatureIDAsString ()
unsigned	GetFeatureType ()
Parameter Control
virtual H460_FeatureParameter &	AddParameter (H460_FeatureID *id, const H460_FeatureContent &con)
virtual H460_FeatureParameter &	AddParameter (H460_FeatureID *id)
virtual void	AddParameter (H460_FeatureParameter *param)
virtual void	RemoveParameter (PINDEX id)
virtual void	ReplaceParameter (const H460_FeatureID id, const H460_FeatureContent &con)
H460_FeatureParameter &	GetFeatureParameter (PINDEX id)
H460_FeatureParameter &	GetFeatureParameter (const H460_FeatureID &id)
PBoolean	HasFeatureParameter (const H460_FeatureID &id)
PBoolean	Contains (const H460_FeatureID &id)
H460_FeatureParameter &	Value (const H460_FeatureID &id)
H460_FeatureParameter &	operator() (PINDEX id) const
H460_FeatureParameter &	operator() (PINDEX id)
H460_FeatureParameter &	operator[] (const H460_FeatureID &id) const
H460_FeatureParameter &	operator() (const H460_FeatureID &id)
int	GetParameterCount ()
H460_FeatureTable &	GetCurrentTable ()
void	SetCurrentTable (H460_FeatureTable &table)
void	SetCurrentTable (H460_FeatureParameter &param)
void	SetDefaultTable ()
H323 RAS Interface
virtual PBoolean	OnSendGatekeeperRequest (H225_FeatureDescriptor &)
virtual PBoolean	OnSendGatekeeperConfirm (H225_FeatureDescriptor &)
virtual PBoolean	OnSendGatekeeperReject (H225_FeatureDescriptor &)
virtual void	OnReceiveGatekeeperRequest (const H225_FeatureDescriptor &)
virtual void	OnReceiveGatekeeperConfirm (const H225_FeatureDescriptor &)
virtual void	OnReceiveGatekeeperReject (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendRegistrationRequest (H225_FeatureDescriptor &)
virtual PBoolean	OnSendRegistrationConfirm (H225_FeatureDescriptor &)
virtual PBoolean	OnSendRegistrationReject (H225_FeatureDescriptor &)
virtual void	OnReceiveRegistrationRequest (const H225_FeatureDescriptor &)
virtual void	OnReceiveRegistrationConfirm (const H225_FeatureDescriptor &)
virtual void	OnReceiveRegistrationReject (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendAdmissionRequest (H225_FeatureDescriptor &)
virtual PBoolean	OnSendAdmissionConfirm (H225_FeatureDescriptor &)
virtual PBoolean	OnSendAdmissionReject (H225_FeatureDescriptor &)
virtual void	OnReceiveAdmissionRequest (const H225_FeatureDescriptor &)
virtual void	OnReceiveAdmissionConfirm (const H225_FeatureDescriptor &)
virtual void	OnReceiveAdmissionReject (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendLocationRequest (H225_FeatureDescriptor &)
virtual PBoolean	OnSendLocationConfirm (H225_FeatureDescriptor &)
virtual PBoolean	OnSendLocationReject (H225_FeatureDescriptor &)
virtual void	OnReceiveLocationRequest (const H225_FeatureDescriptor &)
virtual void	OnReceiveLocationConfirm (const H225_FeatureDescriptor &)
virtual void	OnReceiveLocationReject (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendServiceControlIndication (H225_FeatureDescriptor &)
virtual PBoolean	OnSendServiceControlResponse (H225_FeatureDescriptor &)
virtual void	OnReceiveServiceControlIndication (const H225_FeatureDescriptor &)
virtual void	OnReceiveServiceControlResponse (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendNonStandardMessage (H225_FeatureDescriptor &)
virtual void	OnReceiveNonStandardMessage (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendUnregistrationRequest (H225_FeatureDescriptor &)
virtual void	OnReceiveUnregistrationRequest (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendEndpoint (H225_FeatureDescriptor &)
virtual void	OnReceiveEndpoint (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendInfoRequestMessage (H225_FeatureDescriptor &)
virtual void	OnReceiveInfoRequestMessage (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendInfoRequestResponseMessage (H225_FeatureDescriptor &)
virtual void	OnReceiveInfoRequestResponseMessage (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendDisengagementRequestMessage (H225_FeatureDescriptor &)
virtual void	OnReceiveDisengagementRequestMessage (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendDisengagementConfirmMessage (H225_FeatureDescriptor &)
virtual void	OnReceiveDisengagementConfirmMessage (const H225_FeatureDescriptor &)
Signal PDU Interface
virtual PBoolean	OnSendSetup_UUIE (H225_FeatureDescriptor &)
virtual void	OnReceiveSetup_UUIE (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendAlerting_UUIE (H225_FeatureDescriptor &)
virtual void	OnReceiveAlerting_UUIE (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendCallProceeding_UUIE (H225_FeatureDescriptor &)
virtual void	OnReceiveCallProceeding_UUIE (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendCallConnect_UUIE (H225_FeatureDescriptor &)
virtual void	OnReceiveCallConnect_UUIE (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendFacility_UUIE (H225_FeatureDescriptor &)
virtual void	OnReceiveFacility_UUIE (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendReleaseComplete_UUIE (H225_FeatureDescriptor &)
virtual void	OnReceiveReleaseComplete_UUIE (const H225_FeatureDescriptor &)
virtual PBoolean	OnSendUnAllocatedPDU (H225_FeatureDescriptor &)
virtual void	OnReceivedUnAllocatedPDU (const H225_FeatureDescriptor &)
Protected Attributes
H460_FeatureTable *	CurrentTable
H323EndPoint *	ep
H323Connection *	con

---

Member Enumeration Documentation

anonymous enum

Enumerator:

FeatureNeeded	The Feature is Needed.
FeatureDesired	Desired Feature.
FeatureSupported	Supported Feature.

anonymous enum

Enumerator:

FeatureBase	Create Startup use only Startup.
FeatureBaseAll	Create Startup use RAS and Signal.
FeatureBaseRas	Create Startup use RAS.
FeatureBaseSignal	Create Base use Signal.
FeatureRas	Create Registering GK.
FeatureSignal	Create Call Setup.

---

Constructor & Destructor Documentation

H460_Feature::H460_Feature

(

)

Default Constructor

H460_Feature::H460_Feature

(

unsigned

Identifier

)

Create a new handler for a Standard H460 Feature.

H460_Feature::H460_Feature

(

PString

Identifier

)

Create a new handler for a NonStandard H460 Feature.

H460_Feature::H460_Feature

(

OpalOID

Indentifier

)

Create a new handler for a OID H460 Feature.

H460_Feature::H460_Feature

(

const H225_FeatureDescriptor &

descriptor

)

Create a new handler for a PDU Received Feature.

---

Member Function Documentation

virtual void H460_Feature::AddParameter

(

H460_FeatureParameter *

param

)

[virtual]

Add Parameter from H460_FeatureParameter

virtual H460_FeatureParameter& H460_Feature::AddParameter

(

H460_FeatureID *

id

)

[virtual]

Add Parameter without contents

virtual H460_FeatureParameter& H460_Feature::AddParameter	(	H460_FeatureID *	id,
		const H460_FeatureContent &	con
	)			[virtual]

Add Parameter

virtual void H460_Feature::AttachConnection

(

H323Connection *

_con

)

[virtual]

Attach the connection object, Override this to link to your own Connection Instance

virtual void H460_Feature::AttachEndPoint

(

H323EndPoint *

_ep

)

[virtual]

Attach the endpoint. Override this to link your own Endpoint Instance.

PBoolean H460_Feature::Contains

(

const H460_FeatureID &

id

)

Contains Parameter (Use this when casting from H225_FeatureDescriptor)

static H460_Feature* H460_Feature::CreateFeature	(	const PString &	featurename,
		int	FeatureType = FeatureBase,
		PPluginManager *	pluginMgr = NULL
	)			[static]

Create instance of a feature

Parameters:

featurename	Feature Name Expression
FeatureType	Feature Type
pluginMgr	Plugin Manager

H460_FeatureTable& H460_Feature::GetCurrentTable

(

)

Get the Current Feature Table

static PStringList H460_Feature::GetFeatureFriendlyName

(

)

[inline, static]

Get Feature Friendly Name This usually the user friendly description

static PStringList H460_Feature::GetFeatureFriendlyNames	(	const PString &	feature,
		PPluginManager *	pluginMgr = NULL
	)			[static]

Get Feature Friendly Names

H460_FeatureID H460_Feature::GetFeatureID

(

)

[inline]

Get the FeatureID

PString H460_Feature::GetFeatureIDAsString

(

)

Get FeatureID as String

static PStringList H460_Feature::GetFeatureName

(

)

[inline, static]

Get Feature Name. This is usually the Derived Class Name

static PStringList H460_Feature::GetFeatureNames

(

PPluginManager *

pluginMgr = NULL

)

[static]

Get Feature Names

H460_FeatureParameter& H460_Feature::GetFeatureParameter

(

const H460_FeatureID &

id

)

Get Parameter with FeatureID

H460_FeatureParameter& H460_Feature::GetFeatureParameter

(

PINDEX

id

)

Get Parameter at index id

unsigned H460_Feature::GetFeatureType

(

)

[inline]

Get the FeatureType

int H460_Feature::GetParameterCount

(

)

[inline]

Get the Number of Parameters

static int H460_Feature::GetPurpose

(

)

[inline, static]

Get the purpose of the the Feature whether for Signalling,RAS or both. This determines when the class is instantized

PBoolean H460_Feature::HasFeatureParameter

(

const H460_FeatureID &

id

)

Has Feature with FeatureID

virtual void H460_Feature::OnReceiveAdmissionConfirm

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveAdmissionReject

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveAdmissionRequest

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveAlerting_UUIE

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveCallConnect_UUIE

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveCallProceeding_UUIE

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveDisengagementConfirmMessage

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveDisengagementRequestMessage

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceivedUnAllocatedPDU

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveEndpoint

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveFacility_UUIE

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveGatekeeperConfirm

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveGatekeeperReject

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveGatekeeperRequest

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveInfoRequestMessage

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveInfoRequestResponseMessage

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveLocationConfirm

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveLocationReject

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveLocationRequest

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveNonStandardMessage

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveRegistrationConfirm

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveRegistrationReject

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveRegistrationRequest

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveReleaseComplete_UUIE

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveServiceControlIndication

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveServiceControlResponse

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveSetup_UUIE

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual void H460_Feature::OnReceiveUnregistrationRequest

(

const H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendAdmissionConfirm

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendAdmissionReject

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendAdmissionRequest

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendAlerting_UUIE

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendCallConnect_UUIE

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendCallProceeding_UUIE

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendDisengagementConfirmMessage

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendDisengagementRequestMessage

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendEndpoint

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendFacility_UUIE

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendGatekeeperConfirm

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendGatekeeperReject

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendGatekeeperRequest

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendInfoRequestMessage

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendInfoRequestResponseMessage

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendLocationConfirm

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendLocationReject

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendLocationRequest

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendNonStandardMessage

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendRegistrationConfirm

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendRegistrationReject

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendRegistrationRequest

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendReleaseComplete_UUIE

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendServiceControlIndication

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendServiceControlResponse

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendSetup_UUIE

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendUnAllocatedPDU

(

H225_FeatureDescriptor &

)

[inline, virtual]

virtual PBoolean H460_Feature::OnSendUnregistrationRequest

(

H225_FeatureDescriptor &

)

[inline, virtual]

H460_Feature::operator PString

(

)

const [inline]

NonStandard Feature ID

H460_Feature::operator unsigned

(

)

const [inline]

Standard Feature ID

H460_FeatureParameter& H460_Feature::operator()

(

const H460_FeatureID &

id

)

Parameters:

id	FeatureID of the object.

H460_FeatureParameter& H460_Feature::operator()

(

PINDEX

id

)

Parameters:

id	* Index position in the collection of the object.

H460_FeatureParameter& H460_Feature::operator()

(

PINDEX

id

)

const [inline]

Accessing the Parameters

H460_FeatureParameter& H460_Feature::operator[]

(

const H460_FeatureID &

id

)

const [inline]

Accessing the Parameters

virtual void H460_Feature::RemoveParameter

(

PINDEX

id

)

[virtual]

Delete Parameter

virtual void H460_Feature::ReplaceParameter	(	const H460_FeatureID	id,
		const H460_FeatureContent &	con
	)			[virtual]

Replace Parameter

void H460_Feature::SetCurrentTable

(

H460_FeatureParameter &

param

)

Set the curernt Feature Table from Parameter

void H460_Feature::SetCurrentTable

(

H460_FeatureTable &

table

)

Set the current feature table

void H460_Feature::SetDefaultTable

(

)

Set to default Feature table

void H460_Feature::SetFeatureID

(

const H460_FeatureID &

id

)

[inline]

set the FeatureID

H460_FeatureParameter& H460_Feature::Value

(

const H460_FeatureID &

id

)

Retrieve Parameter (Use this when casting from H225_FeatureDescriptor)

---

Field Documentation

H323Connection* H460_Feature::con [protected]

H460_FeatureTable* H460_Feature::CurrentTable [protected]

H323EndPoint* H460_Feature::ep [protected]

enum { ... } H460_Feature::FeatureCategory

enum { ... } H460_Feature::FeatureInstance

---

The documentation for this class was generated from the following file:

• h4601.h

---
