OpalMediaTypeDefinition Class Reference

#include <mediatype.h>

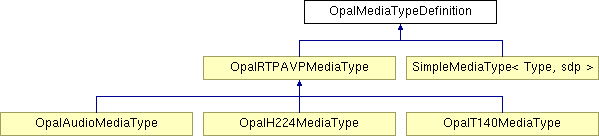

Inheritance diagram for OpalMediaTypeDefinition:

List of all members.

Public Member Functions
	OpalMediaTypeDefinition (const char *mediaType, const char *sdpType, unsigned preferredSessionId, OpalMediaType::AutoStartMode autoStart=OpalMediaType::DontOffer)
	Create a new media type definition.
virtual	~OpalMediaTypeDefinition ()
OpalMediaType::AutoStartMode	GetAutoStart () const
void	SetAutoStart (OpalMediaType::AutoStartMode v)
virtual bool	UsesRTP () const
virtual OpalMediaSession *	CreateMediaSession (OpalConnection &connection, unsigned sessionID) const
virtual PString	GetRTPEncoding () const=0
virtual RTP_UDP *	CreateRTPSession (OpalRTPConnection &conn, unsigned sessionID, bool remoteIsNAT)
unsigned	GetDefaultSessionId () const
Static Public Member Functions
static unsigned	GetDefaultSessionId (const OpalMediaType &mediaType)
static OpalMediaType	GetMediaTypeForSessionId (unsigned sessionId)
Protected Types
typedef std::map< OpalMediaType, unsigned >	MediaTypeToSessionIDMap_T
typedef std::map< unsigned, OpalMediaType >	SessionIDToMediaTypeMap_T
Static Protected Member Functions
static PMutex &	GetMapMutex ()
static MediaTypeToSessionIDMap_T &	GetMediaTypeToSessionIDMap ()
static SessionIDToMediaTypeMap_T &	GetSessionIDToMediaTypeMap ()
Protected Attributes
std::string	m_mediaType
OpalMediaType::AutoStartMode	m_autoStart

---

Detailed Description

This class defines the type used to define the attributes of a media type

---

Member Typedef Documentation

typedef std::map<OpalMediaType, unsigned> OpalMediaTypeDefinition::MediaTypeToSessionIDMap_T [protected]

typedef std::map<unsigned, OpalMediaType> OpalMediaTypeDefinition::SessionIDToMediaTypeMap_T [protected]

---

Constructor & Destructor Documentation

OpalMediaTypeDefinition::OpalMediaTypeDefinition	(	const char *	mediaType,
		const char *	sdpType,
		unsigned	preferredSessionId,
		OpalMediaType::AutoStartMode	autoStart = OpalMediaType::DontOffer
	)

Create a new media type definition.

Parameters:

mediaType	name of the media type (audio, video etc)
sdpType	name of the SDP type
preferredSessionId	preferred session ID
autoStart	Default value for auto-start transmit & receive

virtual OpalMediaTypeDefinition::~OpalMediaTypeDefinition

(

)

[inline, virtual]

---

Member Function Documentation

OpalMediaType::AutoStartMode OpalMediaTypeDefinition::GetAutoStart

(

)

const [inline]

Get flags for media type can auto-start on call initiation.

void OpalMediaTypeDefinition::SetAutoStart

(

OpalMediaType::AutoStartMode

v

)

[inline]

Set flag for media type can auto-start receive on call initiation.

virtual bool OpalMediaTypeDefinition::UsesRTP

(

)

const [inline, virtual]

Indicate type uses RTP for transport. If false, then it uses a generic OpaMediaSession

virtual OpalMediaSession* OpalMediaTypeDefinition::CreateMediaSession	(	OpalConnection &	connection,
		unsigned	sessionID
	)			const [virtual]

Create a media session suitable for the media type.

Parameters:

connection	Connection media session is being created for
sessionID	ID for the media session

Reimplemented in OpalRTPAVPMediaType.

virtual PString OpalMediaTypeDefinition::GetRTPEncoding

(

)

const [pure virtual]

Get the string used for the RTP_FormatHandler PFactory which is used to create the RTP handler for the this media type possible values include "rtp/avp" and "udptl"

Only valid if UsesRTP return true

Implemented in SimpleMediaType< Type, sdp >, and OpalRTPAVPMediaType.

virtual RTP_UDP* OpalMediaTypeDefinition::CreateRTPSession	(	OpalRTPConnection &	conn,
		unsigned	sessionID,
		bool	remoteIsNAT
	)			[virtual]

Create an RTP session for this media format. By default, this will create a RTP_UDP session with the correct initial format

Only valid if UsesRTP return true

Reimplemented in SimpleMediaType< Type, sdp >.

unsigned OpalMediaTypeDefinition::GetDefaultSessionId

(

)

const [inline]

Return the default session ID for this media type.

static unsigned OpalMediaTypeDefinition::GetDefaultSessionId

(

const OpalMediaType &

mediaType

)

[static]

Return the default session ID for a specified media type.

Parameters:

mediaType

Media type to get default session ID for

static OpalMediaType OpalMediaTypeDefinition::GetMediaTypeForSessionId

(

unsigned

sessionId

)

[static]

Return the media type associated with a default media type

Parameters:

sessionId

Session ID to search for media type.

static PMutex& OpalMediaTypeDefinition::GetMapMutex

(

)

[static, protected]

static MediaTypeToSessionIDMap_T& OpalMediaTypeDefinition::GetMediaTypeToSessionIDMap

(

)

[static, protected]

static SessionIDToMediaTypeMap_T& OpalMediaTypeDefinition::GetSessionIDToMediaTypeMap

(

)

[static, protected]

---

Member Data Documentation

std::string OpalMediaTypeDefinition::m_mediaType [protected]

OpalMediaType::AutoStartMode OpalMediaTypeDefinition::m_autoStart [protected]

---

The documentation for this class was generated from the following file:

• mediatype.h

---
