OpalFramedTranscoder Class Reference

#include <transcoders.h>

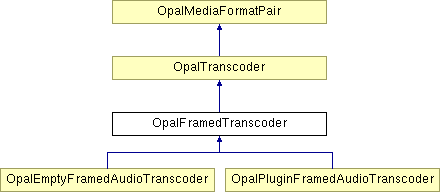

Inheritance diagram for OpalFramedTranscoder:

List of all members.

Public Member Functions
Operations
virtual bool	UpdateMediaFormats (const OpalMediaFormat &inputMediaFormat, const OpalMediaFormat &outputMediaFormat)
virtual PINDEX	GetOptimalDataFrameSize (PBoolean input) const
virtual PBoolean	Convert (const RTP_DataFrame &input, RTP_DataFrame &output)
virtual PBoolean	ConvertFrame (const BYTE *input, BYTE *output)
virtual PBoolean	ConvertFrame (const BYTE *input, PINDEX &consumed, BYTE *output, PINDEX &created)
virtual PBoolean	ConvertSilentFrame (BYTE *output)
Protected Attributes
PINDEX	inputBytesPerFrame
PINDEX	outputBytesPerFrame
PINDEX	maxOutputDataSize

---

Detailed Description

This class defines a transcoder implementation class that will encode/decode fixed sized blocks. That is each input block of n bytes is encoded to exactly m bytes of data, eg GSM etc.

An application may create a descendent off this class and override functions as required for descibing a specific transcoder.

---

Constructor & Destructor Documentation

OpalFramedTranscoder::OpalFramedTranscoder	(	const OpalMediaFormat &	inputMediaFormat,
		const OpalMediaFormat &	outputMediaFormat,
		PINDEX	inputBytesPerFrame,
		PINDEX	outputBytesPerFrame
	)

Create a new framed transcoder implementation.

Parameters:

inputMediaFormat	Input media format
outputMediaFormat	Output media format
inputBytesPerFrame	Number of bytes in an input frame
outputBytesPerFrame	Number of bytes in an output frame

OpalFramedTranscoder::OpalFramedTranscoder	(	const OpalMediaFormat &	inputMediaFormat,
		const OpalMediaFormat &	outputMediaFormat,
		PINDEX	inputBytesPerFrame,
		PINDEX	outputBytesPerFrame
	)

Create a new framed transcoder implementation.

Parameters:

inputMediaFormat	Input media format
outputMediaFormat	Output media format
inputBytesPerFrame	Number of bytes in an input frame
outputBytesPerFrame	Number of bytes in an output frame

---

Member Function Documentation

virtual bool OpalFramedTranscoder::UpdateMediaFormats	(	const OpalMediaFormat &	inputMediaFormat,
		const OpalMediaFormat &	outputMediaFormat
	)			[virtual]

Update the input and output media formats. This can be used to adjust the parameters of a codec at run time. Note you cannot change the basic media format, eg change GSM0610 to G.711, only options for that format, eg 6k3 mode to 5k3 mode in G.723.1. If the formats are different then a OpalMediaFormat::Merge() is performed.

If a format is empty (invalid) it is ignored and does not update the internal variable. In this way only the input or output side can be updated.

The default behaviour updates the inputMediaFormat and outputMediaFormat member variables.

Parameters:

inputMediaFormat	Input media format
outputMediaFormat	Output media format

Reimplemented from OpalTranscoder.

Reimplemented in OpalPluginFramedAudioTranscoder.

virtual PINDEX OpalFramedTranscoder::GetOptimalDataFrameSize

(

PBoolean

input

)

const [virtual]

Get the optimal size for data frames to be converted. This function returns the size of frames that will be most efficient in conversion. A RTP_DataFrame will attempt to provide or use data in multiples of this size. Note that it may not do so, so the transcoder must be able to handle any sized packets.

Parameters:

input

Flag for input or output data size

Implements OpalTranscoder.

virtual PBoolean OpalFramedTranscoder::Convert	(	const RTP_DataFrame &	input,
		RTP_DataFrame &	output
	)			[virtual]

Convert the data from one format to another. This function takes the input data as a RTP_DataFrame and converts it to its output format, placing it into the RTP_DataFrame provided.

Returns FALSE if the conversion fails.

Parameters:

input	Input data
output	Output data

Implements OpalTranscoder.

virtual PBoolean OpalFramedTranscoder::ConvertFrame	(	const BYTE *	input,
		BYTE *	output
	)			[virtual]

Convert a frame of data from one format to another. This function implicitly knows the input and output frame sizes.

Parameters:

input	Input data
output	Output data

virtual PBoolean OpalFramedTranscoder::ConvertFrame	(	const BYTE *	input,
		PINDEX &	consumed,
		BYTE *	output,
		PINDEX &	created
	)			[virtual]

Parameters:

input	Input data
consumed	number of input bytes consumed
output	Output data
created	number of output bytes created

Reimplemented in OpalPluginFramedAudioTranscoder, and OpalEmptyFramedAudioTranscoder.

virtual PBoolean OpalFramedTranscoder::ConvertSilentFrame

(

BYTE *

output

)

[virtual]

Parameters:

output

Output data

Reimplemented in OpalPluginFramedAudioTranscoder.

---

Member Data Documentation

PINDEX OpalFramedTranscoder::inputBytesPerFrame [protected]

PINDEX OpalFramedTranscoder::outputBytesPerFrame [protected]

PINDEX OpalFramedTranscoder::maxOutputDataSize [protected]

---

The documentation for this class was generated from the following file:

• transcoders.h

---
