SIP_PDU Class Reference

#include <sippdu.h>

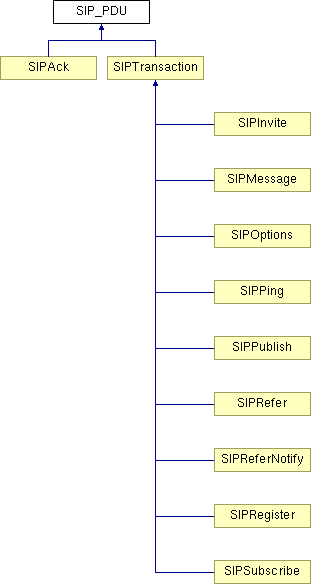

Inheritance diagram for SIP_PDU:

SIPAck SIPTransaction SIPInvite SIPMessage SIPOptions SIPPing SIPPublish SIPRefer SIPReferNotify SIPRegister SIPSubscribe List of all members.

Public Types

enum  Methods {
  Method_INVITE, Method_ACK, Method_OPTIONS, Method_BYE,
  Method_CANCEL, Method_REGISTER, Method_SUBSCRIBE, Method_NOTIFY,
  Method_REFER, Method_MESSAGE, Method_INFO, Method_PING,
  Method_PUBLISH, NumMethods
}
enum  StatusCodes {
  IllegalStatusCode, Local_TransportError, Local_BadTransportAddress, Information_Trying = 100,
  Information_Ringing = 180, Information_CallForwarded = 181, Information_Queued = 182, Information_Session_Progress = 183,
  Successful_OK = 200, Successful_Accepted = 202, Redirection_MultipleChoices = 300, Redirection_MovedPermanently = 301,
  Redirection_MovedTemporarily = 302, Redirection_UseProxy = 305, Redirection_AlternativeService = 380, Failure_BadRequest = 400,
  Failure_UnAuthorised = 401, Failure_PaymentRequired = 402, Failure_Forbidden = 403, Failure_NotFound = 404,
  Failure_MethodNotAllowed = 405, Failure_NotAcceptable = 406, Failure_ProxyAuthenticationRequired = 407, Failure_RequestTimeout = 408,
  Failure_Conflict = 409, Failure_Gone = 410, Failure_LengthRequired = 411, Failure_RequestEntityTooLarge = 413,
  Failure_RequestURITooLong = 414, Failure_UnsupportedMediaType = 415, Failure_UnsupportedURIScheme = 416, Failure_BadExtension = 420,
  Failure_ExtensionRequired = 421, Failure_IntervalTooBrief = 423, Failure_TemporarilyUnavailable = 480, Failure_TransactionDoesNotExist = 481,
  Failure_LoopDetected = 482, Failure_TooManyHops = 483, Failure_AddressIncomplete = 484, Failure_Ambiguous = 485,
  Failure_BusyHere = 486, Failure_RequestTerminated = 487, Failure_NotAcceptableHere = 488, Failure_BadEvent = 489,
  Failure_RequestPending = 491, Failure_Undecipherable = 493, Failure_InternalServerError = 500, Failure_NotImplemented = 501,
  Failure_BadGateway = 502, Failure_ServiceUnavailable = 503, Failure_ServerTimeout = 504, Failure_SIPVersionNotSupported = 505,
  Failure_MessageTooLarge = 513, GlobalFailure_BusyEverywhere = 600, GlobalFailure_Decline = 603, GlobalFailure_DoesNotExistAnywhere = 604,
  GlobalFailure_NotAcceptable = 606, MaxStatusCode = 699
}
enum  { MaxSize = 65535 }

Public Member Functions

 SIP_PDU ()
 SIP_PDU (Methods method, const SIPURL &dest, const PString &to, const PString &from, const PString &callID, unsigned cseq, const OpalTransportAddress &via)
 SIP_PDU (Methods method, SIPConnection &connection, const OpalTransport &transport)
 SIP_PDU (const SIP_PDU &request, StatusCodes code, const char *contact=NULL, const char *extra=NULL, const SDPSessionDescription *sdp=NULL)
 SIP_PDU (const SIP_PDU &)
SIP_PDU & operator= (const SIP_PDU &)
 ~SIP_PDU ()
void PrintOn (ostream &strm) const
void Construct (Methods method)
void Construct (Methods method, const SIPURL &dest, const PString &to, const PString &from, const PString &callID, unsigned cseq, const OpalTransportAddress &via)
void Construct (Methods method, SIPConnection &connection, const OpalTransport &transport)
PBoolean SetRoute (const PStringList &routeSet)
void SetAllow (unsigned bitmask)
void AdjustVia (OpalTransport &transport)
PBoolean Read (OpalTransport &transport)
PBoolean Write (OpalTransport &transport, const OpalTransportAddress &remoteAddress=OpalTransportAddress())
bool SendResponse (OpalTransport &transport, StatusCodes code, const char *contact=NULL, const char *extra=NULL)
bool SendResponse (OpalTransport &transport, SIP_PDU &response)
PString Build ()
PString GetTransactionID () const
Methods GetMethod () const
StatusCodes GetStatusCode () const
const SIPURL & GetURI () const
unsigned GetVersionMajor () const
unsigned GetVersionMinor () const
const PString & GetEntityBody () const
PString & GetEntityBody ()
const PString & GetInfo () const
const SIPMIMEInfo & GetMIME () const
SIPMIMEInfo & GetMIME ()
void SetURI (const SIPURL &newuri)
SDPSessionDescription * GetSDP ()

Static Public Member Functions

static const char * GetStatusCodeDescription (int code)

Protected Attributes

Methods method
StatusCodes statusCode
SIPURL uri
unsigned versionMajor
unsigned versionMinor
PString info
SIPMIMEInfo mime
PString entityBody
SDPSessionDescription * m_SDP
PString transactionID

Friends

ostream & operator<< (ostream &strm, StatusCodes status)

Detailed Description

Session Initiation Protocol message. Each message contains a header, MIME lines and possibly SDP. Class provides methods for reading from and writing to transport.

Member Enumeration Documentation

enum SIP_PDU::Methods

Enumerator:
Method_INVITE
Method_ACK
Method_OPTIONS
Method_BYE
Method_CANCEL
Method_REGISTER
Method_SUBSCRIBE
Method_NOTIFY
Method_REFER
Method_MESSAGE
Method_INFO
Method_PING
Method_PUBLISH
NumMethods

enum SIP_PDU::StatusCodes

Enumerator:
IllegalStatusCode
Local_TransportError
Local_BadTransportAddress
Information_Trying
Information_Ringing
Information_CallForwarded
Information_Queued
Information_Session_Progress
Successful_OK
Successful_Accepted
Redirection_MultipleChoices
Redirection_MovedPermanently
Redirection_MovedTemporarily
Redirection_UseProxy
Redirection_AlternativeService
Failure_BadRequest
Failure_UnAuthorised
Failure_PaymentRequired
Failure_Forbidden
Failure_NotFound
Failure_MethodNotAllowed
Failure_NotAcceptable
Failure_ProxyAuthenticationRequired
Failure_RequestTimeout
Failure_Conflict
Failure_Gone
Failure_LengthRequired
Failure_RequestEntityTooLarge
Failure_RequestURITooLong
Failure_UnsupportedMediaType
Failure_UnsupportedURIScheme
Failure_BadExtension
Failure_ExtensionRequired
Failure_IntervalTooBrief
Failure_TemporarilyUnavailable
Failure_TransactionDoesNotExist
Failure_LoopDetected
Failure_TooManyHops
Failure_AddressIncomplete
Failure_Ambiguous
Failure_BusyHere
Failure_RequestTerminated
Failure_NotAcceptableHere
Failure_BadEvent
Failure_RequestPending
Failure_Undecipherable
Failure_InternalServerError
Failure_NotImplemented
Failure_BadGateway
Failure_ServiceUnavailable
Failure_ServerTimeout
Failure_SIPVersionNotSupported
Failure_MessageTooLarge
GlobalFailure_BusyEverywhere
GlobalFailure_Decline
GlobalFailure_DoesNotExistAnywhere
GlobalFailure_NotAcceptable
MaxStatusCode

anonymous enum

Enumerator:
MaxSize

Constructor & Destructor Documentation

SIP_PDU::SIP_PDU (  )

SIP_PDU::SIP_PDU ( Methods  method,
const SIPURL &  dest,
const PString &  to,
const PString &  from,
const PString &  callID,
unsigned  cseq,
const OpalTransportAddress &  via
)

Construct a Request message

SIP_PDU::SIP_PDU ( Methods  method,
SIPConnection &  connection,
const OpalTransport &  transport
)

Construct a Request message for requests in a dialog

SIP_PDU::SIP_PDU ( const SIP_PDU &  request,
StatusCodes  code,
const char *  contact = NULL,
const char *  extra = NULL,
const SDPSessionDescription *  sdp = NULL
)

Construct a Response message extra is passed as message body

SIP_PDU::SIP_PDU ( const SIP_PDU &   )

SIP_PDU::~SIP_PDU (  )

Member Function Documentation

static const char* SIP_PDU::GetStatusCodeDescription ( int  code  )  [static]

SIP_PDU& SIP_PDU::operator= ( const SIP_PDU &   )

void SIP_PDU::PrintOn ( ostream &  strm  )  const

void SIP_PDU::Construct ( Methods  method  )

void SIP_PDU::Construct ( Methods  method,
const SIPURL &  dest,
const PString &  to,
const PString &  from,
const PString &  callID,
unsigned  cseq,
const OpalTransportAddress &  via
)

void SIP_PDU::Construct ( Methods  method,
SIPConnection &  connection,
const OpalTransport &  transport
)

PBoolean SIP_PDU::SetRoute ( const PStringList &  routeSet  )

Add and populate Route header following the given routeSet. If first route is strict, exchange with URI. Returns PTrue if routeSet.

void SIP_PDU::SetAllow ( unsigned  bitmask  )

Set mime allow field to all supported methods.

void SIP_PDU::AdjustVia ( OpalTransport &  transport  )

Update the VIA field following RFC3261, 18.2.1 and RFC3581.

PBoolean SIP_PDU::Read ( OpalTransport &  transport  )

Read PDU from the specified transport.

PBoolean SIP_PDU::Write ( OpalTransport &  transport,
const OpalTransportAddress &  remoteAddress = OpalTransportAddress()
)

Write the PDU to the transport.

bool SIP_PDU::SendResponse ( OpalTransport &  transport,
StatusCodes  code,
const char *  contact = NULL,
const char *  extra = NULL
)

Write PDU as a response to a request.

bool SIP_PDU::SendResponse ( OpalTransport &  transport,
SIP_PDU &  response
)

PString SIP_PDU::Build (  )

Construct the PDU string to output. Returns the total length of the PDU.

PString SIP_PDU::GetTransactionID (  )  const

Methods SIP_PDU::GetMethod (  )  const [inline]

StatusCodes SIP_PDU::GetStatusCode (  )  const [inline]

const SIPURL& SIP_PDU::GetURI (  )  const [inline]

unsigned SIP_PDU::GetVersionMajor (  )  const [inline]

unsigned SIP_PDU::GetVersionMinor (  )  const [inline]

const PString& SIP_PDU::GetEntityBody (  )  const [inline]

PString& SIP_PDU::GetEntityBody (  )  [inline]

const PString& SIP_PDU::GetInfo (  )  const [inline]

const SIPMIMEInfo& SIP_PDU::GetMIME (  )  const [inline]

SIPMIMEInfo& SIP_PDU::GetMIME (  )  [inline]

void SIP_PDU::SetURI ( const SIPURL &  newuri  )  [inline]

SDPSessionDescription* SIP_PDU::GetSDP (  )

Friends And Related Function Documentation

ostream& operator<< ( ostream &  strm,
StatusCodes  status
) [friend]

Member Data Documentation

Methods SIP_PDU::method [protected]

StatusCodes SIP_PDU::statusCode [protected]

SIPURL SIP_PDU::uri [protected]

unsigned SIP_PDU::versionMajor [protected]

unsigned SIP_PDU::versionMinor [protected]

PString SIP_PDU::info [protected]

SIPMIMEInfo SIP_PDU::mime [protected]

PString SIP_PDU::entityBody [protected]

SDPSessionDescription* SIP_PDU::m_SDP [protected]

PString SIP_PDU::transactionID [mutable, protected]

The documentation for this class was generated from the following file:
