#include <h323trans.h>

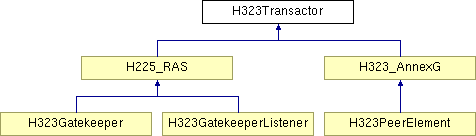

Inheritance diagram for H323Transactor:
Public Member Functions | |
Overrides from PObject | |
| void | PrintOn (ostream &strm) const |
new operations | |
| PBoolean | SetTransport (const H323TransportAddress &iface) |
| H323TransportAddressArray | GetInterfaceAddresses (PBoolean excludeLocalHost=PTrue, H323Transport *associatedTransport=NULL) |
| virtual PBoolean | StartChannel () |
| virtual void | StopChannel () |
| virtual H323TransactionPDU * | CreateTransactionPDU () const=0 |
| virtual PBoolean | HandleTransaction (const PASN_Object &rawPDU)=0 |
| virtual void | OnSendingPDU (PASN_Object &rawPDU)=0 |
| virtual PBoolean | WritePDU (H323TransactionPDU &pdu) |
| virtual PBoolean | WriteTo (H323TransactionPDU &pdu, const H323TransportAddressArray &addresses, PBoolean callback=PTrue) |
Member variable access | |
| H323EndPoint & | GetEndPoint () const |
| H323Transport & | GetTransport () const |
| void | SetCheckResponseCryptoTokens (PBoolean value) |
| PBoolean | GetCheckResponseCryptoTokens () |
Protected Member Functions | |
| void | Construct () |
| unsigned | GetNextSequenceNumber () |
| PBoolean | SetUpCallSignalAddresses (H225_ArrayOf_TransportAddress &addresses) |
| PDECLARE_NOTIFIER (PThread, H323Transactor, HandleTransactions) | |
| virtual PBoolean | MakeRequest (Request &request) |
| PBoolean | CheckForResponse (unsigned, unsigned, const PASN_Choice *=NULL) |
| PBoolean | HandleRequestInProgress (const H323TransactionPDU &pdu, unsigned delay) |
| PBoolean | CheckCryptoTokens (const H323TransactionPDU &pdu, const PASN_Array &clearTokens, unsigned clearOptionalField, const PASN_Array &cryptoTokens, unsigned cryptoOptionalField) |
| void | AgeResponses () |
| PBoolean | SendCachedResponse (const H323TransactionPDU &pdu) |
Protected Attributes | |
| H323EndPoint & | endpoint |
| WORD | defaultLocalPort |
| WORD | defaultRemotePort |
| H323Transport * | transport |
| PBoolean | checkResponseCryptoTokens |
| unsigned | nextSequenceNumber |
| PMutex | nextSequenceNumberMutex |
| PDictionary< POrdinalKey, Request > | requests |
| PMutex | requestsMutex |
| Request * | lastRequest |
| PMutex | pduWriteMutex |
| PSortedList< Response > | responses |
Classes | |
| class | Request |
| class | Response |
| H323Transactor::H323Transactor | ( | H323EndPoint & | endpoint, | |
| H323Transport * | transport, | |||
| WORD | localPort, | |||
| WORD | remotePort | |||
| ) |
Create a new protocol handler.
| endpoint | Endpoint gatekeeper is associated with. |
| transport | Transport over which to communicate. |
| localPort | Local port to listen on |
| remotePort | Remote port to connect on |
| H323Transactor::H323Transactor | ( | H323EndPoint & | endpoint, | |
| const H323TransportAddress & | iface, | |||
| WORD | localPort, | |||
| WORD | remotePort | |||
| ) |
| endpoint | Endpoint gatekeeper is associated with. |
| iface | Local interface over which to communicate. |
| localPort | Local port to listen on |
| remotePort | Remote port to connect on |
| H323Transactor::~H323Transactor | ( | ) |
Destroy protocol handler.
| H323Transactor::H323Transactor | ( | H323EndPoint & | endpoint, | |
| H323Transport * | transport, | |||
| WORD | localPort, | |||
| WORD | remotePort | |||
| ) |
Create a new protocol handler.
| endpoint | Endpoint gatekeeper is associated with. |
| transport | Transport over which to communicate. |
| localPort | Local port to listen on |
| remotePort | Remote port to connect on |
| H323Transactor::H323Transactor | ( | H323EndPoint & | endpoint, | |
| const H323TransportAddress & | iface, | |||
| WORD | localPort, | |||
| WORD | remotePort | |||
| ) |
| endpoint | Endpoint gatekeeper is associated with. |
| iface | Local interface over which to communicate. |
| localPort | Local port to listen on |
| remotePort | Remote port to connect on |
| H323Transactor::~H323Transactor | ( | ) |
Destroy protocol handler.
| void H323Transactor::PrintOn | ( | ostream & | strm | ) | const |
Print the name of the gatekeeper.
| strm | Stream to print to. |
Reimplemented in H225_RAS, H323_AnnexG, and H323PeerElement.
| PBoolean H323Transactor::SetTransport | ( | const H323TransportAddress & | iface | ) |
Set a new transport for use by the transactor.
| iface | Local interface for transport |
| H323TransportAddressArray H323Transactor::GetInterfaceAddresses | ( | PBoolean | excludeLocalHost = PTrue, |
|
| H323Transport * | associatedTransport = NULL | |||
| ) |
Return the list of addresses used for this peer element
| excludeLocalHost | Flag to exclude 127.0.0.1 |
| associatedTransport | Associated transport for precedence and translation |
| virtual PBoolean H323Transactor::StartChannel | ( | ) | [virtual] |
Start the channel processing transactions
| virtual void H323Transactor::StopChannel | ( | ) | [virtual] |
Stop the channel processing transactions. Must be called in each descendants destructor.
| virtual H323TransactionPDU* H323Transactor::CreateTransactionPDU | ( | ) | const [pure virtual] |
Create the transaction PDU for reading.
Implemented in H225_RAS, and H323_AnnexG.
| virtual PBoolean H323Transactor::HandleTransaction | ( | const PASN_Object & | rawPDU | ) | [pure virtual] |
Handle and dispatch a transaction PDU
Implemented in H225_RAS, and H323_AnnexG.
| virtual void H323Transactor::OnSendingPDU | ( | PASN_Object & | rawPDU | ) | [pure virtual] |
Allow for modifications to PDU on send.
Implemented in H225_RAS, and H323_AnnexG.
| virtual PBoolean H323Transactor::WritePDU | ( | H323TransactionPDU & | pdu | ) | [virtual] |
Write PDU to transport after executing callback.
| virtual PBoolean H323Transactor::WriteTo | ( | H323TransactionPDU & | pdu, | |
| const H323TransportAddressArray & | addresses, | |||
| PBoolean | callback = PTrue | |||
| ) | [virtual] |
Write PDU to transport after executing callback.
| H323EndPoint& H323Transactor::GetEndPoint | ( | ) | const [inline] |
Get the gatekeepers associated endpoint.
| H323Transport& H323Transactor::GetTransport | ( | ) | const [inline] |
Get the gatekeepers transport channel.
| void H323Transactor::SetCheckResponseCryptoTokens | ( | PBoolean | value | ) | [inline] |
Set flag to check all crypto tokens on responses.
| value | New value for checking crypto tokens. |
| PBoolean H323Transactor::GetCheckResponseCryptoTokens | ( | ) | [inline] |
Get flag to check all crypto tokens on responses.
| void H323Transactor::Construct | ( | ) | [protected] |
Reimplemented in H323_AnnexG, and H323PeerElement.
| unsigned H323Transactor::GetNextSequenceNumber | ( | ) | [protected] |
| PBoolean H323Transactor::SetUpCallSignalAddresses | ( | H225_ArrayOf_TransportAddress & | addresses | ) | [protected] |
| H323Transactor::PDECLARE_NOTIFIER | ( | PThread | , | |
| H323Transactor | , | |||
| HandleTransactions | ||||
| ) | [protected] |
| virtual PBoolean H323Transactor::MakeRequest | ( | Request & | request | ) | [protected, virtual] |
| PBoolean H323Transactor::CheckForResponse | ( | unsigned | , | |
| unsigned | , | |||
| const PASN_Choice * | = NULL | |||
| ) | [protected] |
| PBoolean H323Transactor::HandleRequestInProgress | ( | const H323TransactionPDU & | pdu, | |
| unsigned | delay | |||
| ) | [protected] |
| PBoolean H323Transactor::CheckCryptoTokens | ( | const H323TransactionPDU & | pdu, | |
| const PASN_Array & | clearTokens, | |||
| unsigned | clearOptionalField, | |||
| const PASN_Array & | cryptoTokens, | |||
| unsigned | cryptoOptionalField | |||
| ) | [protected] |
| void H323Transactor::AgeResponses | ( | ) | [protected] |
| PBoolean H323Transactor::SendCachedResponse | ( | const H323TransactionPDU & | pdu | ) | [protected] |
H323EndPoint& H323Transactor::endpoint [protected] |
WORD H323Transactor::defaultLocalPort [protected] |
WORD H323Transactor::defaultRemotePort [protected] |
H323Transport* H323Transactor::transport [protected] |
PBoolean H323Transactor::checkResponseCryptoTokens [protected] |
unsigned H323Transactor::nextSequenceNumber [protected] |
PMutex H323Transactor::nextSequenceNumberMutex [protected] |
PDictionary<POrdinalKey, Request> H323Transactor::requests [protected] |
PMutex H323Transactor::requestsMutex [protected] |
Request* H323Transactor::lastRequest [protected] |
PMutex H323Transactor::pduWriteMutex [protected] |
PSortedList<Response> H323Transactor::responses [protected] |
