#include <h323caps.h>

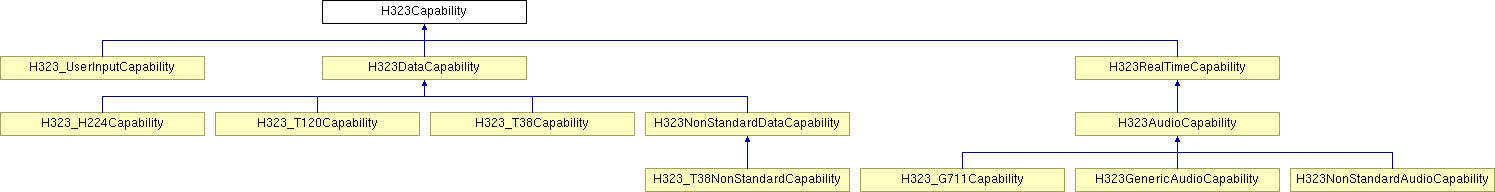

Inheritance diagram for H323Capability:
Identification functions | |
| enum | MainTypes { e_Audio, e_Video, e_Data, e_UserInput, e_NumMainTypes } |
| virtual MainTypes | GetMainType () const=0 |
| virtual unsigned | GetSubType () const=0 |
| virtual PString | GetFormatName () const=0 |
Protocol manipulation | |
| enum | CommandType { e_TCS, e_OLC, e_ReqMode } |
| virtual PBoolean | OnSendingPDU (H245_Capability &pdu) const =0 |
| virtual PBoolean | OnSendingPDU (H245_DataType &pdu) const |
| virtual PBoolean | OnSendingPDU (H245_ModeElement &pdu) const=0 |
| virtual PBoolean | OnReceivedPDU (const H245_Capability &pdu) |
| virtual PBoolean | OnReceivedPDU (const H245_DataType &pdu, PBoolean receiver) |
| virtual PBoolean | IsMatch (const PASN_Choice &subTypePDU) const |
| virtual PBoolean | IsUsable (const H323Connection &connection) const |
Member variable access | |
| enum | CapabilityDirection { e_Unknown, e_Receive, e_Transmit, e_ReceiveAndTransmit, e_NoDirection, NumCapabilityDirections } |
| CapabilityDirection | GetCapabilityDirection () const |
| void | SetCapabilityDirection (CapabilityDirection dir) |
| unsigned | GetCapabilityNumber () const |
| Get unique capability number. | |
| void | SetCapabilityNumber (unsigned num) |
| Set unique capability number. | |
| OpalMediaFormat | GetMediaFormat () const |
| bool | SetMediaFormatOptions (const OpalMediaFormat &format) |
| RTP_DataFrame::PayloadTypes | GetPayloadType () const |
| Get the payload type for the capaibility. | |
| void | SetPayloadType (RTP_DataFrame::PayloadTypes pt) |
| Set the payload type for the capaibility. | |
| virtual void | AttachQoS (RTP_QOS *) |
| Attach a QoS specification to this channel. | |
Operations | |
| virtual unsigned | GetDefaultSessionID () const |
| virtual void | SetTxFramesInPacket (unsigned frames) |
| virtual unsigned | GetTxFramesInPacket () const |
| virtual unsigned | GetRxFramesInPacket () const |
| virtual H323Channel * | CreateChannel (H323Connection &connection, H323Channel::Directions dir, unsigned sessionID, const H245_H2250LogicalChannelParameters *param) const=0 |
| static H323Capability * | Create (const PString &name) |
Public Member Functions | |
Overrides from class PObject | |
| Comparison | Compare (const PObject &obj) const |
| void | PrintOn (ostream &strm) const |
Protected Member Functions | |
| OpalMediaFormat & | GetWritableMediaFormat () |
Protected Attributes | |
| unsigned | assignedCapabilityNumber |
| CapabilityDirection | capabilityDirection |
| Unique ID assigned to capability. | |
| RTP_DataFrame::PayloadTypes | rtpPayloadType |
Friends | |
| class | H323Capabilities |
Note that this is not an instance of the codec itself. Merely the description of that codec. There is typically only one instance of this class contained in the capability tables of the endpoint. There may be several instances of the actualy codec managing the conversion of an individual stream of data.
An application may create a descendent off this class and override functions as required for describing a codec that it implements.
| H323Capability::H323Capability | ( | ) |
Create a new capability specification.
| H323Capability::H323Capability | ( | ) |
Create a new capability specification.
| Comparison H323Capability::Compare | ( | const PObject & | obj | ) | const |
Compare two capability instances. This compares the main and sub-types of the capability.
Reimplemented in H323_H224Capability, H323NonStandardAudioCapability, H323GenericAudioCapability, H323NonStandardDataCapability, and H323_T38Capability.
| void H323Capability::PrintOn | ( | ostream & | strm | ) | const |
Print out the object to the stream, virtual version of << operator.
| virtual MainTypes H323Capability::GetMainType | ( | ) | const [pure virtual] |
Get the main type of the capability.
This function is overridden by one of the three main sub-classes off which real capabilities would be descendend.
Implemented in H323AudioCapability, H323DataCapability, and H323_UserInputCapability.
| virtual unsigned H323Capability::GetSubType | ( | ) | const [pure virtual] |
Get the sub-type of the capability. This is a code dependent on the main type of the capability.
Implemented in H323_H224Capability, H323NonStandardAudioCapability, H323GenericAudioCapability, H323NonStandardDataCapability, H323_G711Capability, H323_UserInputCapability, H323_T120Capability, and H323_T38Capability.
| virtual PString H323Capability::GetFormatName | ( | ) | const [pure virtual] |
Get the name of the media data format this class represents.
Implemented in H323_H224Capability, H323_G711Capability, H323_UserInputCapability, H323_T120Capability, H323_T38Capability, and H323_T38NonStandardCapability.
| static H323Capability* H323Capability::Create | ( | const PString & | name | ) | [static] |
Create an H323Capability descendant given a string name. This uses the registration system to create the capability.
| name | Name of capability |
| virtual unsigned H323Capability::GetDefaultSessionID | ( | ) | const [virtual] |
Get the default RTP session. This function gets the default RTP session ID for the capability type. For example audio capabilities return the value RTP_Session::DefaultAudioSessionID etc.
The default behaviour returns zero, indicating it is not an RTP based capability.
Reimplemented in H323AudioCapability, and H323DataCapability.
| virtual void H323Capability::SetTxFramesInPacket | ( | unsigned | frames | ) | [virtual] |
Set the maximum size (in frames) of data that will be transmitted in a single PDU.
This will also be the desired number that will be sent by most codec implemetations.
The default behaviour does nothing.
| frames | Number of frames per packet |
Reimplemented in H323AudioCapability.
| virtual unsigned H323Capability::GetTxFramesInPacket | ( | ) | const [virtual] |
Get the maximum size (in frames) of data that will be transmitted in a single PDU.
The default behaviour returns the value 1.
Reimplemented in H323AudioCapability.
| virtual unsigned H323Capability::GetRxFramesInPacket | ( | ) | const [virtual] |
Get the maximum size (in frames) of data that can be received in a single PDU.
The default behaviour returns the value 1.
Reimplemented in H323AudioCapability.
| virtual H323Channel* H323Capability::CreateChannel | ( | H323Connection & | connection, | |
| H323Channel::Directions | dir, | |||
| unsigned | sessionID, | |||
| const H245_H2250LogicalChannelParameters * | param | |||
| ) | const [pure virtual] |
Create the channel instance, allocating resources as required. This creates a logical channel object appropriate for the parameters provided. Not if param is NULL, sessionID must be provided, otherwise this is taken from the fields in param.
| connection | Owner connection for channel |
| dir | Direction of channel |
| sessionID | Session ID for RTP channel |
| param | Parameters for channel |
Implemented in H323_H224Capability, H323RealTimeCapability, H323_UserInputCapability, H323_T120Capability, H323_T38Capability, and H323_T38NonStandardCapability.
| virtual PBoolean H323Capability::OnSendingPDU | ( | H245_Capability & | pdu | ) | const [pure virtual] |
This function is called whenever and outgoing TerminalCapabilitySet PDU is being constructed for the control channel. It allows the capability to set the PDU fields from information in members specific to the class.
The default behaviour is pure.
| pdu | PDU to set information on |
Implemented in H323AudioCapability, H323DataCapability, and H323_UserInputCapability.
| virtual PBoolean H323Capability::OnSendingPDU | ( | H245_DataType & | pdu | ) | const [virtual] |
This function is called whenever and outgoing OpenLogicalChannel PDU is being constructed for the control channel. It allows the capability to set the PDU fields from information in members specific to the class.
The default behaviour is pure.
| pdu | PDU to set information on |
Reimplemented in H323AudioCapability, H323DataCapability, and H323_UserInputCapability.
| virtual PBoolean H323Capability::OnSendingPDU | ( | H245_ModeElement & | pdu | ) | const [pure virtual] |
This function is called whenever and outgoing RequestMode PDU is being constructed for the control channel. It allows the capability to set the PDU fields from information in members specific to the class.
The default behaviour is pure.
| pdu | PDU to set information on |
Implemented in H323AudioCapability, H323DataCapability, and H323_UserInputCapability.
| virtual PBoolean H323Capability::OnReceivedPDU | ( | const H245_Capability & | pdu | ) | [virtual] |
This function is called whenever and incoming TerminalCapabilitySet PDU is received on the control channel, and a new H323Capability descendent was created. This completes reading fields from the PDU into the classes members.
If the function returns PFalse then the received PDU codec description is not supported, so will be ignored.
The default behaviour sets the capabilityDirection member variable from the PDU and then returns PTrue. Note that this means it is very important to call the ancestor function when overriding.
| pdu | PDU to get information from |
Reimplemented in H323AudioCapability, H323DataCapability, and H323_UserInputCapability.
| virtual PBoolean H323Capability::OnReceivedPDU | ( | const H245_DataType & | pdu, | |
| PBoolean | receiver | |||
| ) | [virtual] |
This function is called whenever and incoming OpenLogicalChannel PDU has been used to construct the control channel. It allows the capability to set from the PDU fields, information in members specific to the class.
The default behaviour is pure.
| pdu | PDU to get information from |
| receiver | Is receiver OLC |
Reimplemented in H323AudioCapability, H323DataCapability, and H323_UserInputCapability.
| virtual PBoolean H323Capability::IsMatch | ( | const PASN_Choice & | subTypePDU | ) | const [virtual] |
Compare the PDU part of the capability.
| subTypePDU | sub-type PDU of H323Capability |
Reimplemented in H323NonStandardAudioCapability, H323GenericAudioCapability, and H323NonStandardDataCapability.
| virtual PBoolean H323Capability::IsUsable | ( | const H323Connection & | connection | ) | const [virtual] |
Validate that the capability is usable given the connection. This checks agains the negotiated protocol version number and remote application to determine if this capability should be used in TCS or OLC pdus.
The default behaviour returns PTrue.
Reimplemented in H323_UserInputCapability.
| CapabilityDirection H323Capability::GetCapabilityDirection | ( | ) | const [inline] |
Get the direction for this capability.
| void H323Capability::SetCapabilityDirection | ( | CapabilityDirection | dir | ) | [inline] |
Set the direction for this capability.
| dir | New direction code |
| unsigned H323Capability::GetCapabilityNumber | ( | ) | const [inline] |
Get unique capability number.
| void H323Capability::SetCapabilityNumber | ( | unsigned | num | ) | [inline] |
Set unique capability number.
| OpalMediaFormat H323Capability::GetMediaFormat | ( | ) | const |
Get media format of the media data this class represents.
| bool H323Capability::SetMediaFormatOptions | ( | const OpalMediaFormat & | format | ) |
Set media format option for the media data this class represents.
| RTP_DataFrame::PayloadTypes H323Capability::GetPayloadType | ( | ) | const [inline] |
Get the payload type for the capaibility.
| void H323Capability::SetPayloadType | ( | RTP_DataFrame::PayloadTypes | pt | ) | [inline] |
Set the payload type for the capaibility.
| virtual void H323Capability::AttachQoS | ( | RTP_QOS * | ) | [inline, virtual] |
| OpalMediaFormat& H323Capability::GetWritableMediaFormat | ( | ) | [protected] |
friend class H323Capabilities [friend] |
unsigned H323Capability::assignedCapabilityNumber [protected] |
Unique ID assigned to capability.
