OpalVideoTranscoder Class Reference

#include <vidcodec.h>

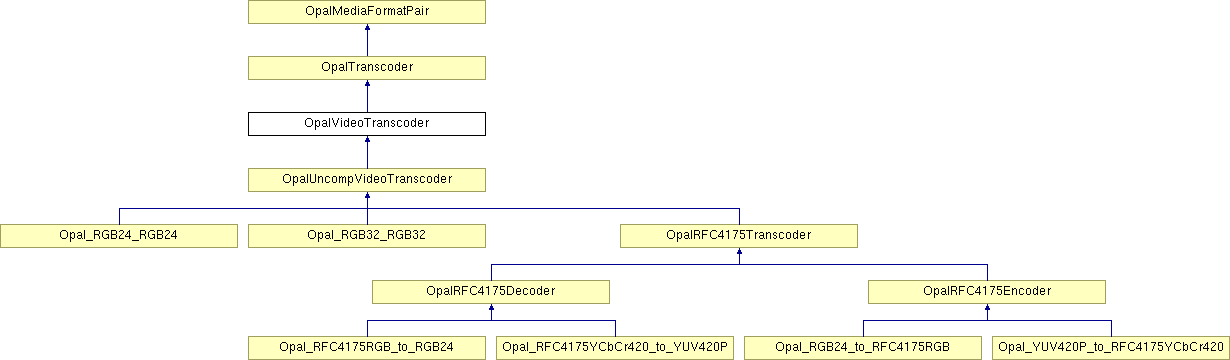

Inheritance diagram for OpalVideoTranscoder:


Public Types
typedef PluginCodec_Video_FrameHeader	FrameHeader
Public Member Functions
Operations
virtual BOOL	UpdateOutputMediaFormat (const OpalMediaFormat &mediaFormat)
virtual BOOL	ExecuteCommand (const OpalMediaCommand &command)
virtual BOOL	Convert (const RTP_DataFrame &input, RTP_DataFrame &output)
Protected Attributes
unsigned	frameWidth
unsigned	frameHeight
unsigned	videoQuality
unsigned	targetBitRate
bool	dynamicVideoQuality
bool	adaptivePacketDelay
unsigned	fillLevel
bool	forceIFrame

Detailed Description

This class defines a transcoder implementation class that will encode/decode video.

An application may create a descendent off this class and override functions as required for descibing a specific transcoder.

Member Typedef Documentation

typedef PluginCodec_Video_FrameHeader OpalVideoTranscoder::FrameHeader

Constructor & Destructor Documentation

OpalVideoTranscoder::OpalVideoTranscoder	(	const OpalMediaFormat &	inputMediaFormat,
		const OpalMediaFormat &	outputMediaFormat
	)

Create a new video transcoder implementation.

Parameters:

inputMediaFormat	Input media format
outputMediaFormat	Output media format

OpalVideoTranscoder::OpalVideoTranscoder	(	const OpalMediaFormat &	inputMediaFormat,
		const OpalMediaFormat &	outputMediaFormat
	)

Create a new video transcoder implementation.

Parameters:

inputMediaFormat	Input media format
outputMediaFormat	Output media format

Member Function Documentation

virtual BOOL OpalVideoTranscoder::UpdateOutputMediaFormat ( const OpalMediaFormat & mediaFormat ) [virtual]

Update the output media format. This can be used to adjust the parameters of a codec at run time. Note you cannot change the basic media format, eg change GSM0610 to G.711, only options for that format, eg 6k3 mode to 5k3 mode in G.723.1.

The default behaviour updates the outputMediaFormat member variable and sets the outputMediaFormatUpdated flag.

Parameters:

mediaFormat

New media format

Reimplemented from OpalTranscoder.

virtual BOOL OpalVideoTranscoder::ExecuteCommand ( const OpalMediaCommand & command ) [virtual]

Execute the command specified to the transcoder. The commands are highly context sensitive, for example VideoFastUpdate would only apply to a video transcoder.

The default behaviour checks for a OpalVideoUpdatePicture and sets the updatePicture member variable if that is the command.

Parameters:

command

Command to execute.

Reimplemented from OpalTranscoder.

virtual BOOL OpalVideoTranscoder::Convert	(	const RTP_DataFrame &	input,
		RTP_DataFrame &	output
	)			`[virtual]`

Convert the data from one format to another. This function takes the input data as a RTP_DataFrame and converts it to its output format, placing it into the RTP_DataFrame provided.

This is a dummy function as nearly all video conversion will does not have a one to one input to output frames ratio, so the ConvertFrames() function is used instead.

Returns FALSE if the conversion fails.

Parameters:
