#include <frame.h>

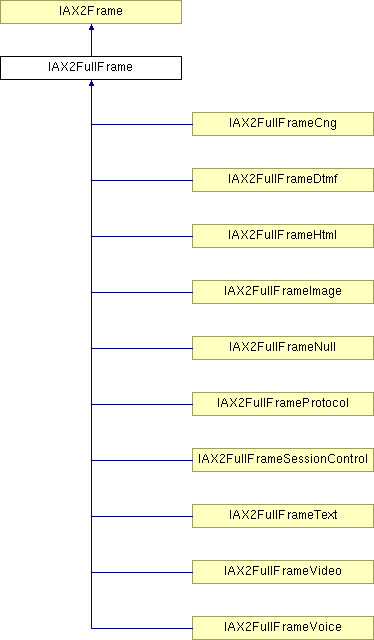

Inheritance diagram for IAX2FullFrame:
enum IAX2FullFrame::RetryTime [protected] |
| IAX2FullFrame::IAX2FullFrame | ( | IAX2Frame & | srcFrame | ) |
Construction from a supplied dataframe. In this case, this class is filled from an incoming data packet
| IAX2FullFrame::IAX2FullFrame | ( | IAX2EndPoint & | _endpoint | ) |
Construction from an endpoint, to create an empty frame. In this case, the class is filled with the various methods
| virtual IAX2FullFrame::~IAX2FullFrame | ( | ) | [virtual] |
Delete this frame now, but first we have to delete every timer on it.
| BOOL IAX2FullFrame::IsAckFrame | ( | ) | [inline] |
Return True if this an ack frame
| BOOL IAX2FullFrame::IsPingFrame | ( | ) |
Return True if this is a PING frame
| BOOL IAX2FullFrame::IsNewFrame | ( | ) |
Return True if this is a NEW frame
| BOOL IAX2FullFrame::IsLagRqFrame | ( | ) |
Return True if this is a LAGRQ frame
| BOOL IAX2FullFrame::IsLagRpFrame | ( | ) |
Return True if this is a LAGRP frame
| BOOL IAX2FullFrame::IsPongFrame | ( | ) |
Return True if this is a PONG frame
| BOOL IAX2FullFrame::IsAuthReqFrame | ( | ) |
Return True if this is a AuthReq frame
| BOOL IAX2FullFrame::IsVnakFrame | ( | ) |
Return True if this is a VNAK frame
| BOOL IAX2FullFrame::IsRegReqFrame | ( | ) |
Return True if this is a REGREQ frame
| BOOL IAX2FullFrame::IsRegAuthFrame | ( | ) |
Return True if this is a REGAUTH frame
| BOOL IAX2FullFrame::IsRegAckFrame | ( | ) |
Return True if this is a REGACK frame
| BOOL IAX2FullFrame::IsRegRelFrame | ( | ) |
Return True if this is a REGREL frame
| BOOL IAX2FullFrame::IsRegRejFrame | ( | ) |
Return True if this is a REGREJ frame
| BOOL IAX2FullFrame::FrameIncrementsInSeqNo | ( | ) |
Return True if this FullFrame is of a type that increments the InSeqNo
| virtual BOOL IAX2FullFrame::IsFullFrame | ( | ) | [inline, virtual] |
True if this is a full frame - always returns true as this is a full frame.
Reimplemented from IAX2Frame.
| BOOL IAX2FullFrame::IsHangupFrame | ( | ) |
Report TRUE if this is a hangup frame. We need this information for processing incoming frames, before fully dissection of the frame has completed
| void IAX2FullFrame::ZeroAllValues | ( | ) |
Initialise to zero all the members of this particular class
Reimplemented from IAX2Frame.
| virtual BOOL IAX2FullFrame::ProcessNetworkPacket | ( | ) | [virtual] |
Process the incoming frame some more, but process it as a full frame
Reimplemented from IAX2Frame.
| virtual BOOL IAX2FullFrame::TransmitPacket | ( | PUDPSocket & | sock | ) | [virtual] |
Send this packet on the specified socket to the remote host. This method is only called by the transmiter.
Reimplemented from IAX2Frame.
| PString IAX2FullFrame::GetFullFrameName | ( | ) | const |
Get text descrption of this frame type
| virtual PString IAX2FullFrame::GetSubClassName | ( | ) | const [inline, virtual] |
Get text description of the subclass contents
Reimplemented in IAX2FullFrameDtmf, IAX2FullFrameVoice, IAX2FullFrameVideo, IAX2FullFrameSessionControl, IAX2FullFrameNull, IAX2FullFrameProtocol, IAX2FullFrameText, IAX2FullFrameImage, IAX2FullFrameHtml, and IAX2FullFrameCng.
| void IAX2FullFrame::MarkDeleteNow | ( | ) |
Stop the timer, so this packet is not retransmitted. Mark packet as dead. This happens when a packet has been received that matches one of the previously sent packets.
| void IAX2FullFrame::MarkVnakSendNow | ( | ) |
A Vnak frame has been received. This Vnak frame is demanding that we resend this particular frame. Given it is to be resent by vnak, we reset the countdown variables. E.G. it gets the full amount of retries again.
| virtual BYTE* IAX2FullFrame::GetMediaDataPointer | ( | ) | [virtual] |
Pointer to the beginning of the media (after the header) in this packet
Reimplemented from IAX2Frame.
| virtual PINDEX IAX2FullFrame::GetMediaDataSize | ( | ) | [virtual] |
Number of bytes in the media section of this packet.
Reimplemented from IAX2Frame.
| PINDEX IAX2FullFrame::GetSubClass | ( | ) | const [inline] |
Determine the current value of the subClass variable
Reimplemented in IAX2FullFrameProtocol.
| void IAX2FullFrame::SetSubClass | ( | PINDEX | newValue | ) | [inline] |
Dry the current value of the subClass variable
| virtual BOOL IAX2FullFrame::WriteHeader | ( | ) | [virtual] |
Write the header for this class to the internal data array. 12 bytes of data are writen. The application developer must write the remaining bytes, before transmiting this frame.
Reimplemented from IAX2Frame.
| void IAX2FullFrame::ModifyFrameHeaderSequenceNumbers | ( | PINDEX | inNo, | |
| PINDEX | outNo | |||
| ) |
Alter the two bytes for in and out sequence values. (in the header)
| void IAX2FullFrame::ModifyFrameTimeStamp | ( | PINDEX | newTimeStamp | ) |
Alter the four bytes for this frames timestamp. It is required, when transmitting full frames, that there is a 3ms interval to last full frame in the timestamps. This is required by limitations in the handline of time in asterisk.
| virtual BOOL IAX2FullFrame::InformationElementsPresent | ( | ) | [inline, virtual] |
Mark this frame as having (or not having) information elements
Reimplemented in IAX2FullFrameProtocol.
| BOOL IAX2FullFrame::SendFrameNow | ( | ) | [inline] |
Get flag to see if this frame is ready to be sent (or resent). In other words, has the timer expired?
| BOOL IAX2FullFrame::DeleteFrameNow | ( | ) | [inline] |
Get flag to see if this frame is ready for deletion. In other words. Has it been sent too many times?
| IAX2SequenceNumbers& IAX2FullFrame::GetSequenceInfo | ( | ) | [inline] |
Get the sequence number info (inSeqNo and outSeqNo)
| virtual void IAX2FullFrame::PrintOn | ( | ostream & | strm | ) | const [virtual] |
Pretty print this frame data to the designated stream
Reimplemented from IAX2Frame.
Reimplemented in IAX2FullFrameProtocol.
| void IAX2FullFrame::MarkAsResent | ( | ) |
Mark this frame as having been resent (set bit 7 of data[2])
| BOOL IAX2FullFrame::operator *= | ( | IAX2FullFrame & | other | ) |
Compare this FullFrame with another full frame, which is used when determining if we are dealing with a frame we have already processed
| virtual BYTE IAX2FullFrame::GetFullFrameType | ( | ) | [inline, virtual] |
Return the FullFrame type represented here (voice, protocol, session etc
Reimplemented in IAX2FullFrameDtmf, IAX2FullFrameVoice, IAX2FullFrameVideo, IAX2FullFrameSessionControl, IAX2FullFrameNull, IAX2FullFrameProtocol, IAX2FullFrameText, IAX2FullFrameImage, IAX2FullFrameHtml, and IAX2FullFrameCng.
| virtual PINDEX IAX2FullFrame::GetEncryptionOffset | ( | ) | [inline, virtual] |
Get the offset to the beginning of the encrypted region
Reimplemented from IAX2Frame.
| virtual BOOL IAX2FullFrame::CallMustBeActive | ( | ) | [inline, protected, virtual] |
Report flag stating that this call must be active when this frame is transmitted
Reimplemented from IAX2Frame.
| void IAX2FullFrame::UnCompressSubClass | ( | BYTE | a | ) | [protected] |
Turn the 8 bit subClass value into a 16 bit representation
| int IAX2FullFrame::CompressSubClass | ( | ) | [protected] |
Turn the 16 bit subClass value into a 8 bit representation
| void IAX2FullFrame::ClearListFlags | ( | ) | [protected] |
Mark this frame as not to be sent, and not to be deleted
| virtual void IAX2FullFrame::InitialiseHeader | ( | IAX2Processor * | processor | ) | [protected, virtual] |
Given the supplied Connection class, write the first 12 bytes of the frame. This method is called by the frame construcors, in preparation for transmission. This method is never called when processing a received frame.
Whenever a frame is transmitted, this method will be called.
Reimplemented from IAX2Frame.
| void IAX2FullFrame::OnTransmissionTimeout | ( | PTimer & | , | |
| INT | ||||
| ) | [protected] |
pwlib constructs to cope with timeout, when transmitting a full frame. This happens when a full frame has not been acknowledged in the required time period. This frame will be resent.
PTimer IAX2FullFrame::transmissionTimer [protected] |
The timer which is used to test for no reply to this frame (on transmission)
PINDEX IAX2FullFrame::subClass [protected] |
integer variable specifying the uncompressed subClass value for this particular frame
PTimeInterval IAX2FullFrame::retryDelta [protected] |
Time to wait between retries
PTimeInterval IAX2FullFrame::timeOffset [protected] |
Time delta between call start and sending (or receiving)
PINDEX IAX2FullFrame::retries [protected] |
Number of retries this frame has undergone
IAX2SequenceNumbers IAX2FullFrame::sequence [protected] |
Class holding the sequence numbers, which is used by all classes which have a FullFrame ancestor.
BOOL IAX2FullFrame::sendFrameNow [protected] |
List flag, indicating if this frame ready for sending
BOOL IAX2FullFrame::deleteFrameNow [protected] |
List flag, this frame is ready for deletion (too many retries)
BOOL IAX2FullFrame::packetResent [protected] |
A tracking flag to indicate this fame has been resent
BOOL IAX2FullFrame::callMustBeActive [protected] |
Flag stating that this call must be active when this frame is transmitted
BOOL IAX2FullFrame::isAckFrame [protected] |
flag to indicate if this is an ack frame
