H460_Feature Class Reference

#include <h4601.h>

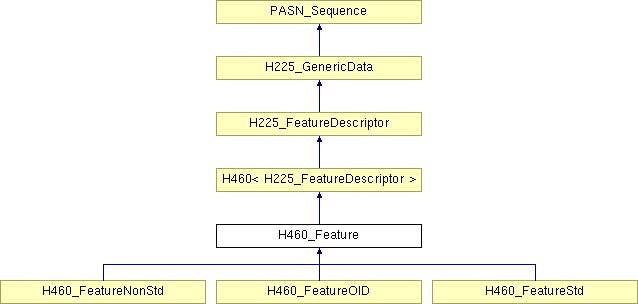

Inheritance diagram for H460_Feature:

List of all members.

Enumerators
enum H460_Feature::{ FeatureNeeded = 1, FeatureDesired, FeatureSupported }	FeatureCategory
enum H460_Feature::{   FeatureBase = 4, FeatureBaseAll = 5, FeatureBaseRas = 6, FeatureBaseSignal = 7,   FeatureRas = 8, FeatureSignal = 16 }	FeatureInstance
Plugin Management
virtual void	AttachEndPoint (H323EndPoint *_ep)
virtual void	AttachConnection (H323Connection *_con)
static PStringList	GetFeatureNames (PPluginManager *pluginMgr=NULL)
static PStringList	GetFeatureFriendlyNames (const PString &feature, PPluginManager *pluginMgr=NULL)
static H460_Feature *	CreateFeature (const PString &featurename, int FeatureType=FeatureBase, PPluginManager *pluginMgr=NULL)
static PStringList	GetFeatureName ()
static PStringList	GetFeatureFriendlyName ()
static int	GetPurpose ()
Public Member Functions
Operators
	operator unsigned () const
	operator PString () const
H460_FeatureID	GetFeatureID ()
void	SetFeatureID (const H460_FeatureID &id)
PString	GetFeatureIDAsString ()
unsigned	GetFeatureType ()
Parameter Control
virtual H460_FeatureParameter &	AddParameter (H460_FeatureID *id, H460_FeatureContent &con)
virtual void	AddParameter (H460_FeatureParameter *param)
virtual void	RemoveParameter (PINDEX id)
virtual void	ReplaceParameter (H460_FeatureID id, H460_FeatureContent &con)
H460_FeatureParameter &	GetFeatureParameter (PINDEX id)
H460_FeatureParameter &	GetFeatureParameter (const H460_FeatureID &id)
BOOL	HasFeatureParameter (const H460_FeatureID &id)
BOOL	Contains (const H460_FeatureID &id)
H460_FeatureParameter &	Value (const H460_FeatureID &id)
H460_FeatureParameter &	operator() (PINDEX id) const
H460_FeatureParameter &	operator() (PINDEX id)
H460_FeatureParameter &	operator[] (const H460_FeatureID &id) const
H460_FeatureParameter &	operator() (const H460_FeatureID &id)
int	GetParameterCount ()
H460_FeatureTable &	GetCurrentTable ()
void	SetCurrentTable (H460_FeatureTable &table)
void	SetCurrentTable (H460_FeatureParameter &param)
void	SetDefaultTable ()
H323 RAS Interface
virtual BOOL	OnSendGatekeeperRequest (H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendGatekeeperConfirm (H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendGatekeeperReject (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveGatekeeperRequest (const H225_FeatureDescriptor &pdu)
virtual void	OnReceiveGatekeeperConfirm (const H225_FeatureDescriptor &pdu)
virtual void	OnReceiveGatekeeperReject (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendRegistrationRequest (H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendRegistrationConfirm (H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendRegistrationReject (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveRegistrationRequest (const H225_FeatureDescriptor &pdu)
virtual void	OnReceiveRegistrationConfirm (const H225_FeatureDescriptor &pdu)
virtual void	OnReceiveRegistrationReject (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendAdmissionRequest (H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendAdmissionConfirm (H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendAdmissionReject (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveAdmissionRequest (const H225_FeatureDescriptor &pdu)
virtual void	OnReceiveAdmissionConfirm (const H225_FeatureDescriptor &pdu)
virtual void	OnReceiveAdmissionReject (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendLocationRequest (H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendLocationConfirm (H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendLocationReject (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveLocationRequest (const H225_FeatureDescriptor &pdu)
virtual void	OnReceiveLocationConfirm (const H225_FeatureDescriptor &pdu)
virtual void	OnReceiveLocationReject (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendServiceControlIndication (H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendServiceControlResponse (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveServiceControlIndication (const H225_FeatureDescriptor &pdu)
virtual void	OnReceiveServiceControlResponse (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendNonStandardMessage (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveNonStandardMessage (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendEndpoint (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveEndpoint (const H225_FeatureDescriptor &pdu)
Signal PDU Interface
virtual BOOL	OnSendSetup_UUIE (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveSetup_UUIE (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendAlerting_UUIE (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveAlerting_UUIE (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendCallProceeding_UUIE (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveCallProceeding_UUIE (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendCallConnect_UUIE (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveCallConnect_UUIE (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendFacility_UUIE (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveFacility_UUIE (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendReleaseComplete_UUIE (H225_FeatureDescriptor &pdu)
virtual void	OnReceiveReleaseComplete_UUIE (const H225_FeatureDescriptor &pdu)
virtual BOOL	OnSendUnAllocatedPDU (H225_FeatureDescriptor &pdu)
virtual void	OnReceivedUnAllocatedPDU (const H225_FeatureDescriptor &pdu)
Protected Attributes
H460_FeatureTable *	CurrentTable
H323EndPoint *	ep
H323Connection *	con

---

Member Enumeration Documentation

anonymous enum

Enumerator:

FeatureNeeded	The Feature is Needed.
FeatureDesired	Desired Feature.
FeatureSupported	Supported Feature.

anonymous enum

Enumerator:

FeatureBase	Create Startup use only Startup.
FeatureBaseAll	Create Startup use RAS and Signal.
FeatureBaseRas	Create Startup use RAS.
FeatureBaseSignal	Create Base use Signal.
FeatureRas	Create Registering GK.
FeatureSignal	Create Call Setup.

---

Constructor & Destructor Documentation

H460_Feature::H460_Feature

(

)

Default Constructor

H460_Feature::H460_Feature

(

unsigned

Identifier

)

Create a new handler for a Standard H460 Feature.

H460_Feature::H460_Feature

(

PString

Identifier

)

Create a new handler for a NonStandard H460 Feature.

H460_Feature::H460_Feature

(

OpalOID

Indentifier

)

Create a new handler for a OID H460 Feature.

H460_Feature::H460_Feature

(

const H225_FeatureDescriptor &

descriptor

)

Create a new handler for a PDU Received Feature.

H460_Feature::H460_Feature

(

)

Default Constructor

H460_Feature::H460_Feature

(

unsigned

Identifier

)

Create a new handler for a Standard H460 Feature.

H460_Feature::H460_Feature

(

PString

Identifier

)

Create a new handler for a NonStandard H460 Feature.

H460_Feature::H460_Feature

(

OpalOID

Indentifier

)

Create a new handler for a OID H460 Feature.

H460_Feature::H460_Feature

(

const H225_FeatureDescriptor &

descriptor

)

Create a new handler for a PDU Received Feature.

---

Member Function Documentation

H460_Feature::operator unsigned

(

)

const [inline]

Standard Feature ID

H460_Feature::operator PString

(

)

const [inline]

NonStandard Feature ID

H460_FeatureID H460_Feature::GetFeatureID

(

)

[inline]

Get the FeatureID

void H460_Feature::SetFeatureID

(

const H460_FeatureID &

id

)

[inline]

set the FeatureID

PString H460_Feature::GetFeatureIDAsString

(

)

Get FeatureID as String

unsigned H460_Feature::GetFeatureType

(

)

[inline]

Get the FeatureType

virtual H460_FeatureParameter& H460_Feature::AddParameter	(	H460_FeatureID *	id,
		H460_FeatureContent &	con
	)			[virtual]

Add Parameter

virtual void H460_Feature::AddParameter

(

H460_FeatureParameter *

param

)

[virtual]

Add Parameter from H460_FeatureParameter

virtual void H460_Feature::RemoveParameter

(

PINDEX

id

)

[virtual]

Delete Parameter

virtual void H460_Feature::ReplaceParameter	(	H460_FeatureID	id,
		H460_FeatureContent &	con
	)			[virtual]

Replace Parameter

H460_FeatureParameter& H460_Feature::GetFeatureParameter

(

PINDEX

id

)

Get Parameter at index id

H460_FeatureParameter& H460_Feature::GetFeatureParameter

(

const H460_FeatureID &

id

)

Get Parameter with FeatureID

BOOL H460_Feature::HasFeatureParameter

(

const H460_FeatureID &

id

)

Has Feature with FeatureID

BOOL H460_Feature::Contains

(

const H460_FeatureID &

id

)

Contains Parameter (Use this when casting from H225_FeatureDescriptor)

H460_FeatureParameter& H460_Feature::Value

(

const H460_FeatureID &

id

)

Retrieve Parameter (Use this when casting from H225_FeatureDescriptor)

H460_FeatureParameter& H460_Feature::operator()

(

PINDEX

id

)

const [inline]

Accessing the Parameters

H460_FeatureParameter& H460_Feature::operator()

(

PINDEX

id

)

Parameters:

id	* Index position in the collection of the object.

H460_FeatureParameter& H460_Feature::operator[]

(

const H460_FeatureID &

id

)

const [inline]

Accessing the Parameters

H460_FeatureParameter& H460_Feature::operator()

(

const H460_FeatureID &

id

)

Parameters:

id	FeatureID of the object.

int H460_Feature::GetParameterCount

(

)

[inline]

Get the Number of Parameters

H460_FeatureTable& H460_Feature::GetCurrentTable

(

)

Get the Current Feature Table

void H460_Feature::SetCurrentTable

(

H460_FeatureTable &

table

)

Set the current feature table

void H460_Feature::SetCurrentTable

(

H460_FeatureParameter &

param

)

Set the curernt Feature Table from Parameter

void H460_Feature::SetDefaultTable

(

)

Set to default Feature table

static PStringList H460_Feature::GetFeatureNames

(

PPluginManager *

pluginMgr = NULL

)

[static]

Get Feature Names

static PStringList H460_Feature::GetFeatureFriendlyNames	(	const PString &	feature,
		PPluginManager *	pluginMgr = NULL
	)			[static]

Get Feature Friendly Names

static H460_Feature* H460_Feature::CreateFeature	(	const PString &	featurename,
		int	FeatureType = FeatureBase,
		PPluginManager *	pluginMgr = NULL
	)			[static]

Create instance of a feature

Parameters:

featurename	Feature Name Expression
FeatureType	Feature Type
pluginMgr	Plugin Manager

static PStringList H460_Feature::GetFeatureName

(

)

[inline, static]

Get Feature Name. This is usually the Derived Class Name

static PStringList H460_Feature::GetFeatureFriendlyName

(

)

[inline, static]

Get Feature Friendly Name This usually the user friendly description

static int H460_Feature::GetPurpose

(

)

[inline, static]

Get the purpose of the the Feature whether for Signalling,RAS or both. This determines when the class is instantized

virtual void H460_Feature::AttachEndPoint

(

H323EndPoint *

_ep

)

[virtual]

Attach the endpoint. Override this to link your own Endpoint Instance.

virtual void H460_Feature::AttachConnection

(

H323Connection *

_con

)

[virtual]

Attach the connection object, Override this to link to your own Connection Instance

virtual BOOL H460_Feature::OnSendGatekeeperRequest

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendGatekeeperConfirm

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendGatekeeperReject

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveGatekeeperRequest

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveGatekeeperConfirm

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveGatekeeperReject

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendRegistrationRequest

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendRegistrationConfirm

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendRegistrationReject

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveRegistrationRequest

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveRegistrationConfirm

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveRegistrationReject

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendAdmissionRequest

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendAdmissionConfirm

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendAdmissionReject

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveAdmissionRequest

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveAdmissionConfirm

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveAdmissionReject

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendLocationRequest

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendLocationConfirm

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendLocationReject

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveLocationRequest

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveLocationConfirm

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveLocationReject

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendServiceControlIndication

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendServiceControlResponse

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveServiceControlIndication

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveServiceControlResponse

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendNonStandardMessage

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveNonStandardMessage

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendEndpoint

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveEndpoint

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendSetup_UUIE

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveSetup_UUIE

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendAlerting_UUIE

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveAlerting_UUIE

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendCallProceeding_UUIE

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveCallProceeding_UUIE

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendCallConnect_UUIE

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveCallConnect_UUIE

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendFacility_UUIE

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveFacility_UUIE

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendReleaseComplete_UUIE

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceiveReleaseComplete_UUIE

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual BOOL H460_Feature::OnSendUnAllocatedPDU

(

H225_FeatureDescriptor &

pdu

)

[inline, virtual]

virtual void H460_Feature::OnReceivedUnAllocatedPDU

(

const H225_FeatureDescriptor &

pdu

)

[inline, virtual]

---

Member Data Documentation

enum { ... } H460_Feature::FeatureCategory

enum { ... } H460_Feature::FeatureInstance

H460_FeatureTable* H460_Feature::CurrentTable [protected]

H323EndPoint* H460_Feature::ep [protected]

H323Connection* H460_Feature::con [protected]

---

The documentation for this class was generated from the following file:

• h4601.h

---
