H323Transaction Class Reference

#include <h323trans.h>

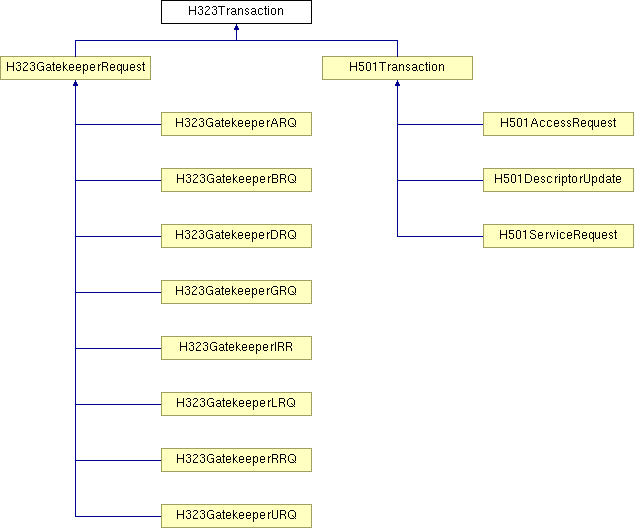

Inheritance diagram for H323Transaction:

List of all members.

Public Types
enum	Response { Ignore = -2, Reject = -1, Confirm = 0 }
Public Member Functions
virtual H323TransactionPDU *	CreateRIP (unsigned sequenceNumber, unsigned delay) const=0
BOOL	HandlePDU ()
virtual BOOL	WritePDU (H323TransactionPDU &pdu)
BOOL	CheckCryptoTokens (const H235Authenticators &authenticators)
virtual H235Authenticator::ValidationResult	ValidatePDU () const=0
virtual void	SetRejectReason (unsigned reasonCode)=0
BOOL	IsFastResponseRequired () const
BOOL	CanSendRIP () const
H323TransportAddress	GetReplyAddress () const
const H323TransportAddressArray &	GetReplyAddresses () const
BOOL	IsBehindNAT () const
H323Transactor &	GetTransactor () const
H235Authenticator::ValidationResult	GetAuthenticatorResult () const
Static Public Member Functions
static Response	InProgress (unsigned time)
Protected Member Functions
virtual Response	OnHandlePDU ()=0
	PDECLARE_NOTIFIER (PThread, H323Transaction, SlowHandler)
Protected Attributes
H323Transactor &	transactor
unsigned	requestSequenceNumber
H323TransportAddressArray	replyAddresses
BOOL	fastResponseRequired
H323TransactionPDU *	request
H323TransactionPDU *	confirm
H323TransactionPDU *	reject
H235Authenticators	authenticators
H235Authenticator::ValidationResult	authenticatorResult
BOOL	isBehindNAT
BOOL	canSendRIP

---

Member Enumeration Documentation

enum H323Transaction::Response

Enumerator:

Ignore
Reject
Confirm

---

Constructor & Destructor Documentation

H323Transaction::H323Transaction	(	H323Transactor &	transactor,
		const H323TransactionPDU &	requestToCopy,
		H323TransactionPDU *	confirm,
		H323TransactionPDU *	reject
	)

Create a new transaction handler.

H323Transaction::~H323Transaction

(

)

H323Transaction::H323Transaction	(	H323Transactor &	transactor,
		const H323TransactionPDU &	requestToCopy,
		H323TransactionPDU *	confirm,
		H323TransactionPDU *	reject
	)

Create a new transaction handler.

H323Transaction::~H323Transaction

(

)

---

Member Function Documentation

static Response H323Transaction::InProgress

(

unsigned

time

)

[inline, static]

virtual H323TransactionPDU* H323Transaction::CreateRIP	(	unsigned	sequenceNumber,
		unsigned	delay
	)			const [pure virtual]

Implemented in H323GatekeeperRequest, and H501Transaction.

BOOL H323Transaction::HandlePDU

(

)

virtual BOOL H323Transaction::WritePDU

(

H323TransactionPDU &

pdu

)

[virtual]

Reimplemented in H323GatekeeperRequest.

BOOL H323Transaction::CheckCryptoTokens

(

const H235Authenticators &

authenticators

)

virtual H235Authenticator::ValidationResult H323Transaction::ValidatePDU

(

)

const [pure virtual]

Implemented in H323GatekeeperGRQ, H323GatekeeperRRQ, H323GatekeeperURQ, H323GatekeeperARQ, H323GatekeeperDRQ, H323GatekeeperBRQ, H323GatekeeperLRQ, H323GatekeeperIRR, and H501Transaction.

virtual void H323Transaction::SetRejectReason

(

unsigned

reasonCode

)

[pure virtual]

Implemented in H323GatekeeperGRQ, H323GatekeeperRRQ, H323GatekeeperURQ, H323GatekeeperARQ, H323GatekeeperDRQ, H323GatekeeperBRQ, H323GatekeeperLRQ, H323GatekeeperIRR, H501ServiceRequest, H501DescriptorUpdate, and H501AccessRequest.

BOOL H323Transaction::IsFastResponseRequired

(

)

const [inline]

BOOL H323Transaction::CanSendRIP

(

)

const [inline]

H323TransportAddress H323Transaction::GetReplyAddress

(

)

const [inline]

const H323TransportAddressArray& H323Transaction::GetReplyAddresses

(

)

const [inline]

BOOL H323Transaction::IsBehindNAT

(

)

const [inline]

H323Transactor& H323Transaction::GetTransactor

(

)

const [inline]

H235Authenticator::ValidationResult H323Transaction::GetAuthenticatorResult

(

)

const [inline]

virtual Response H323Transaction::OnHandlePDU

(

)

[protected, pure virtual]

Implemented in H323GatekeeperGRQ, H323GatekeeperRRQ, H323GatekeeperURQ, H323GatekeeperARQ, H323GatekeeperDRQ, H323GatekeeperBRQ, H323GatekeeperLRQ, H323GatekeeperIRR, H501ServiceRequest, H501DescriptorUpdate, and H501AccessRequest.

H323Transaction::PDECLARE_NOTIFIER	(	PThread	,
		H323Transaction	,
		SlowHandler
	)			[protected]

---

Member Data Documentation

H323Transactor& H323Transaction::transactor [protected]

unsigned H323Transaction::requestSequenceNumber [protected]

H323TransportAddressArray H323Transaction::replyAddresses [protected]

BOOL H323Transaction::fastResponseRequired [protected]

H323TransactionPDU* H323Transaction::request [protected]

H323TransactionPDU* H323Transaction::confirm [protected]

H323TransactionPDU* H323Transaction::reject [protected]

H235Authenticators H323Transaction::authenticators [protected]

H235Authenticator::ValidationResult H323Transaction::authenticatorResult [protected]

BOOL H323Transaction::isBehindNAT [protected]

BOOL H323Transaction::canSendRIP [protected]

---

The documentation for this class was generated from the following file:

• h323trans.h

---
