H323DataChannel Class Reference

#include <channels.h>

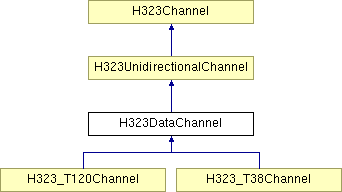

Inheritance diagram for H323DataChannel:


Public Member Functions
Overrides from class H323Channel
virtual void	Close ()
virtual unsigned	GetSessionID () const
virtual BOOL	OnSendingPDU (H245_OpenLogicalChannel &openPDU) const
virtual void	OnSendOpenAck (const H245_OpenLogicalChannel &open, H245_OpenLogicalChannelAck &ack) const
virtual BOOL	OnReceivedPDU (const H245_OpenLogicalChannel &pdu, unsigned &errorCode)
virtual BOOL	OnReceivedAckPDU (const H245_OpenLogicalChannelAck &pdu)
Operations
virtual BOOL	CreateListener ()
virtual BOOL	CreateTransport ()
Protected Attributes
unsigned	sessionID
H323Listener *	listener
BOOL	autoDeleteListener
H323Transport *	transport
BOOL	autoDeleteTransport
BOOL	separateReverseChannel

Detailed Description

This class describes a data logical channel between the two endpoints. They may be created and deleted as required in the H245 protocol.

An application may create a descendent off this class and override functions as required for operating the channel protocol.

Constructor & Destructor Documentation

H323DataChannel::H323DataChannel	(	H323Connection &	connection,
		const H323Capability &	capability,
		Directions	direction,
		unsigned	sessionID
	)

Create a new channel.

Parameters:

connection	Connection to endpoint for channel
capability	Capability channel is using
direction	Direction of channel
sessionID	Session ID for channel

H323DataChannel::~H323DataChannel ( )

Destroy the channel.

H323DataChannel::H323DataChannel	(	H323Connection &	connection,
		const H323Capability &	capability,
		Directions	direction,
		unsigned	sessionID
	)

Create a new channel.

Parameters:

connection	Connection to endpoint for channel
capability	Capability channel is using
direction	Direction of channel
sessionID	Session ID for channel

H323DataChannel::~H323DataChannel ( )

Destroy the channel.

Member Function Documentation

virtual void H323DataChannel::Close ( ) [virtual]

This is called to clean up any threads on connection termination.

Reimplemented from H323UnidirectionalChannel.

Reimplemented in H323_T38Channel.

virtual unsigned H323DataChannel::GetSessionID ( ) const [virtual]

Indicate the session number of the channel. Return session for channel. This returns the session ID of the RTP_Session member variable.

Reimplemented from H323Channel.

virtual BOOL H323DataChannel::OnSendingPDU ( H245_OpenLogicalChannel & openPDU ) const [virtual]

Fill out the OpenLogicalChannel PDU for the particular channel type.

Parameters:

openPDU

Open PDU to send.

Implements H323Channel.

Reimplemented in H323_T120Channel, and H323_T38Channel.

virtual void H323DataChannel::OnSendOpenAck	(	const H245_OpenLogicalChannel &	open,
		H245_OpenLogicalChannelAck &	ack
	)			const `[virtual]`

This is called when request to create a channel is received from a remote machine and is about to be acknowledged.

Parameters:

open	Open PDU
ack	Acknowledgement PDU

Reimplemented from H323Channel.

Reimplemented in H323_T120Channel.

virtual BOOL H323DataChannel::OnReceivedPDU	(	const H245_OpenLogicalChannel &	pdu,
		unsigned &	errorCode
	)			`[virtual]`

This is called after a request to create a channel occurs from the local machine via the H245LogicalChannelDict::Open() function, and the request has been acknowledged by the remote endpoint.

The default makes sure the parameters are compatible and passes on the PDU to the rtp session.

Parameters:

pdu	Open PDU
errorCode	Error code on failure

Reimplemented from H323Channel.

Reimplemented in H323_T120Channel, and H323_T38Channel.

virtual BOOL H323DataChannel::OnReceivedAckPDU ( const H245_OpenLogicalChannelAck & pdu ) [virtual]

This is called after a request to create a channel occurs from the local machine via the H245LogicalChannelDict::Open() function, and the request has been acknowledged by the remote endpoint.

The default makes sure the parameters are compatible and passes on the PDU to the rtp session.

Parameters:

pdu

Acknowledgement PDU

Reimplemented from H323Channel.

Reimplemented in H323_T120Channel.

virtual BOOL H323DataChannel::CreateListener ( ) [virtual]

Create the H323Listener class to be used. This is called on receipt of an OpenLogicalChannel request.

The default behaviour creates a compatible listener using the connections control channel as a basis and returns TRUE if successful.

Reimplemented in H323_T38Channel.

virtual BOOL H323DataChannel::CreateTransport ( ) [virtual]

Create the H323Transport class to be used. This is called on receipt of an OpenLogicalChannelAck response. It should not return TRUE unless the transport member variable is set.

The default behaviour uses the connection signalling channel to create the transport and returns TRUE if successful.

Reimplemented in H323_T38Channel.
